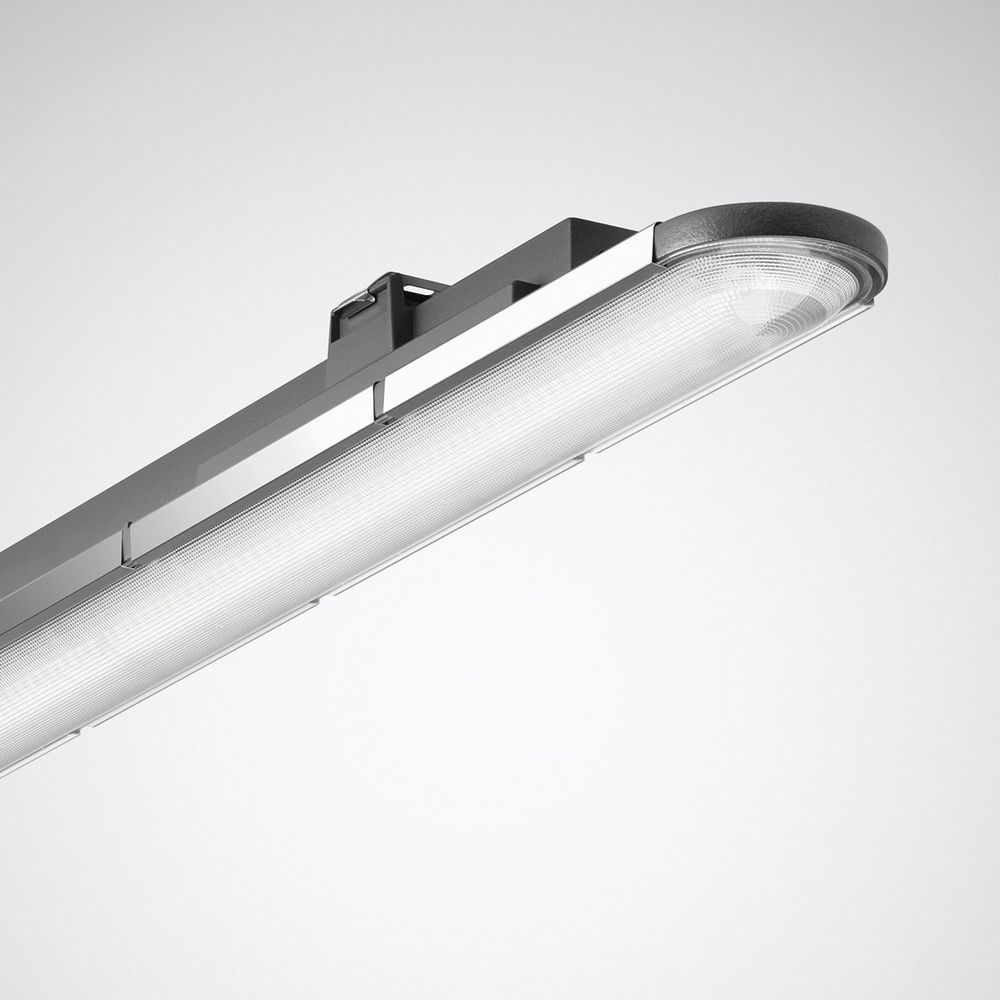

Trilux NextremaG3 B 6000-840ETDD+HFSB LV LED diffuser light 45W 6200lm 6631451

LED damp-proof light. With through-wiring 5 x 1.5 mm2. Quick-connect system type Wieland. With integrated HFSB motion sensor. Sensor type HFSB as master light for controlling up to 14 additional standard DALI lights within a lighting group. The control signal is transmitted via both the DALI input and the DALI output of the control unit to other optional DALI lights in the lighting group. The lighting group can be expanded to a total of up to 300 lights by combining it with up to 19 additional master lights sensor type HFSX. Shape of the detection area is elliptical, length of the detection area up to 12 meters, width of the detection area up to 8 m. The light is started up using a remote control that must be ordered separately (LMS HFSB/X RMC 6487800). Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangle brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (eg ATL1). PMMA diffuser with internal prism structure. With symmetrical, wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.2 kg. Connection devices on both ends designed as a socket or plug. Matching connection socket and plug included in delivery. The electrical connection is made without tools. The strain relief of the connecting cable is provided by means of the M25 screw connection of the quick-connection plug. The luminaire is suitable for operation on a 230V direct current network (DC). With electronic control gear, digitally dimmable (DALI). Control gear in accordance with the DALI-2 standard (EN 62386). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark.In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes in the interest of progress.
Type: Nextrema G3 B 6000-840 ETDD +HFSB LV
