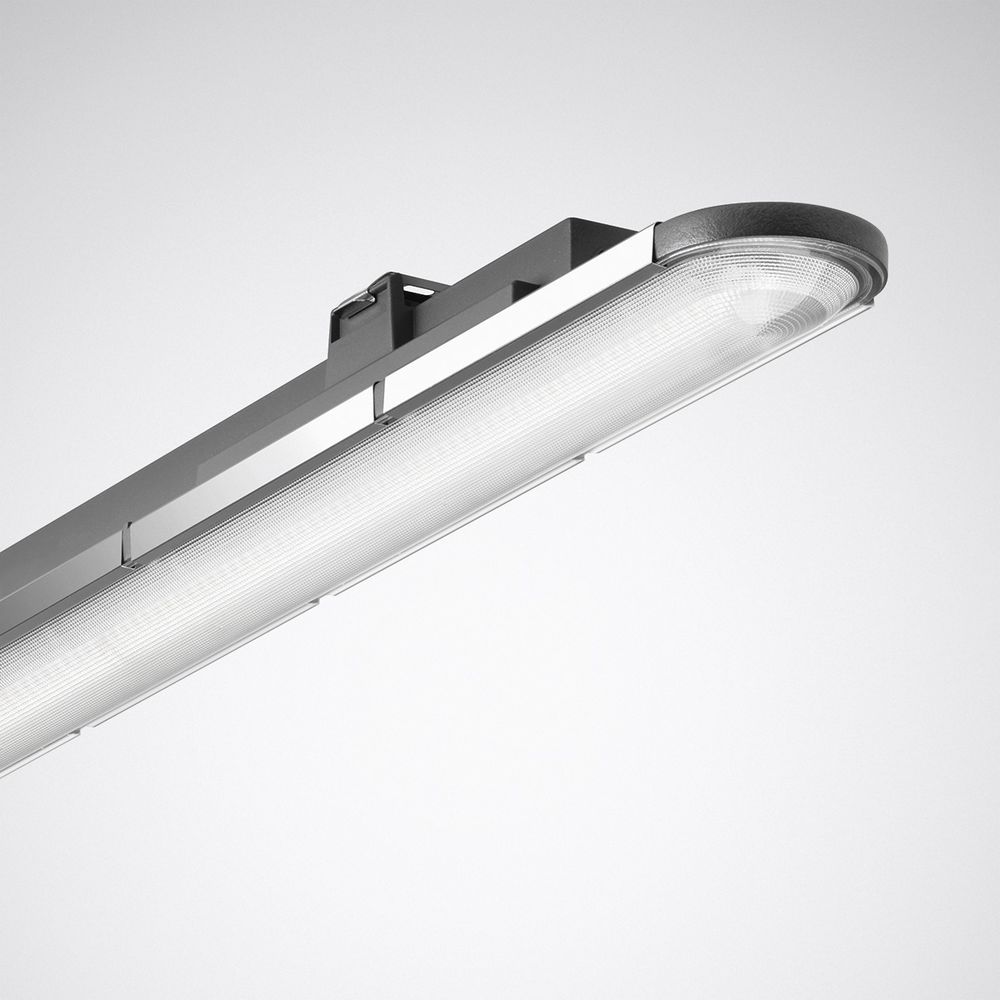

LED damp-proof luminaire. With through-wiring 3 x 1.5 mm2. Quick-connect system type Wieland. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Luminaire in PMMA design suitable for use in uncovered outdoor areas due to its higher UV resistance. With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting included in delivery. Suitable for mounting on 190 VZ support rail. When wall-mounted, the luminaire must be protected against accidental dismantling using accessories that must be ordered separately (eg ATL1). Optical system consisting of primary optics with PMMA diffuser. With symmetrical, extremely wide beam light intensity distribution. Luminaire luminous flux and light color are fixed. Rated luminous flux 4300 lm, rated power 27 W, maximum luminaire luminous efficacy 159 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L85(tq 35 °C) = 50,000 h, average rated service life L80(tq 35 °C) = 85,000 h. Luminaire body made of die-cast aluminum. Robust design with vibration-free components. Luminaire body color anthracite, dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -30 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP66, shock resistance according to IEC 62262: IK04, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.2 kg. Connection devices on both ends designed as a socket or plug. Matching connection socket and plug included in delivery. The electrical connection is made without tools. The strain relief of the connection cable is provided by means of the M25 screw connection of the quick connection plug. The light is suitable for operation on a 230V direct current network (DC). With electronic control gear, switchable. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. In addition, the light is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type:
Nextrema G3 XB 4000-840 ET +LV
Questions & answers
What is the delivery time of Trilux Nextrema G3 XB 4000-840 ET + LV, LED Waterproof luminaire 6629640?
The article Trilux Nextrema G3 XB 4000-840 ET + LV, LED Waterproof luminaire 6629640 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6629640 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Nextrema G3 XB 4000-840 ET + LV, LED Waterproof luminaire 6629640 always at the best possible price. We can give you a discount of 2% on
Trilux Nextrema G3 XB 4000-840 ET + LV, LED Waterproof luminaire 6629640 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux Nextrema G3 XB 4000-840 ET + LV, LED Waterproof luminaire 6629640 we can offer you a price of 331,47 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux Nextrema G3 XB 4000-840 ET + LV, LED Waterproof luminaire 6629640 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
