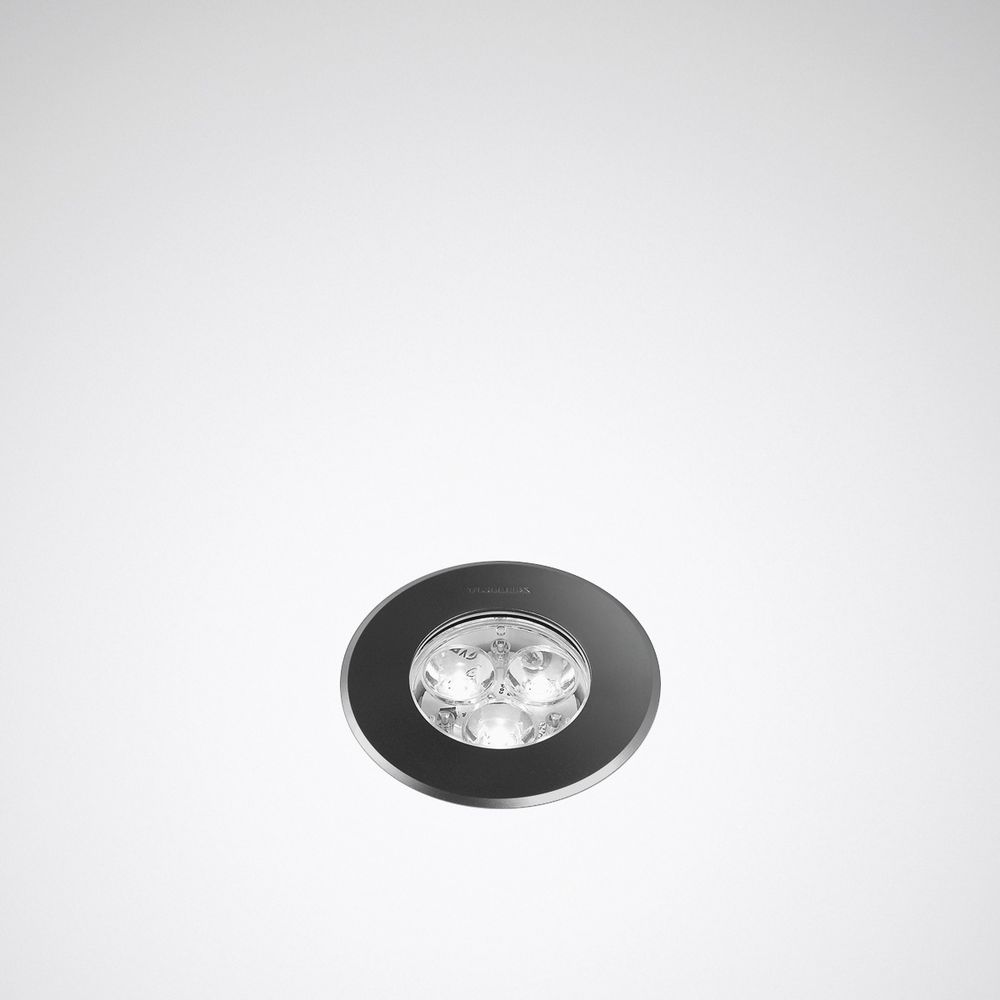

Trilux 8501RB2L/250-amber 1G1 ETD 05 LED recessed floor light sw IP68 6489057

LED floor recessed spotlight for accent lighting, can be walked on and driven over. For installation in the floor. A foundation with sufficient drainage that is appropriate for the load must be provided on site. Please order the floor recessed pot separately as an accessory. With rotationally symmetrical, wide beam light distribution. Beam angle 50°. Luminaire luminous flux and light color are fixed. LED system equipped with 3 LEDs. Rated luminous flux 250 lm, rated power 6 W, maximum luminaire luminous efficacy 42 lm/W. Light color amber. Color location tolerance (initial MacAdam) = 3 SDCM. Other LED light colors available on request. Average rated service life L80(tq 35 °C) = 50,000 h. Spotlight housing made of die-cast aluminum, color deep black, similar to RAL 9005, powder-coated. With mounted stainless steel end ring, round. (RAL 9005). Cover panel made of 15 mm thick, clear, tempered glass. Can be driven over up to 2000 kg. Floor-mounted pot made of weather-resistant PVC pipe. With luminaire fastening ring made of glass fiber reinforced PA6. Protection class (EN 61140): II, protection type (DIN EN 60529): IP68, shock resistance level according to IEC 62262: IK10. Weight: 0.6 kg. Wired ready for connection. With external connecting cable, 2 x 1.5 mm2, sealed in accordance with protection type. Internal connection compartment sealed with epoxy resin. The luminaire is suitable for operation on a 230 V direct current network (DC). With control gear, dimmable. Dimmable using a leading-edge phase dimmer. Surge resistance differential mode / common mode: / . The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
Type: 8501 RB2L/250-amber 1G1 ETD 05
