Trilux 6474240 Montigo 1500 P 3300-830 ET LED surface-mounted luminaire prism 26 W 3200 lm

Your rating:
Average rating
product review for Trilux 6474240 Montigo 1500 P 3300-830 ET LED surface-mounted luminaire prism 26 W 3200 lm
( 4.5 / 5 ) 33 ratings
Trilux 6474240
This image may differ from the desired article.
Trilux 6474240Trilux 6474240
231,23 EUR 232,16 EUR
( 275,16 EUR incl. VAT )
≈ £193.54  |  ≈ $254.12
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Trilux 6474240 Montigo 1500 P 3300-830 ET LED surface-mounted luminaire prism 26 W 3200 lm
Lieske Part No.:601417
Mfg Part No: 6474240
UPC/EAN: 4018242327508
Weight:4.9 kg
Type:Montigo 1500 P 3300-830 ET
Graduated prices net
From piecesPrice per pieces
5226,03 EUR
10220,82 EUR
15215,62 EUR
20210,42 EUR

Product information for Trilux 6474240:

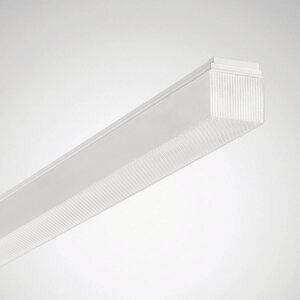

The Trilux Montigo 1500 P 3300-830 ET is an LED surface-mounted luminaire for mounting on ceilings and walls, designed for use in indoor environments. It features a clear, prismatic PMMA cover tray that ensures a symmetrical, narrow light distribution. The tray is securely fixed in the luminaire body by internal spring clips, enabling stable and maintenance-friendly installation. The luminaire is equipped with a fixed light output of 3200 lumens and a warm white light colour (CCT 3000 K), with a general colour rendering index (CRI) Ra > 80. The colour tolerance is 3 SDCM, ensuring high colour consistency in light emission. The average rated life is L70 at an ambient temperature of 25 °C and is specified as 50,000 hours. The light source is replaceable in accordance with ecodesign requirements (EU Regulation (EU) 2019/2020), as is the electronic ballast, which is switchable. The luminaire meets the basic requirements of applicable EU directives and the Product Safety Act and carries the CE marking. Additionally, it is ENEC-certified, confirming testing by an independent body.

Applications

The luminaire is suitable for use in indoor environments, particularly in areas requiring uniform, wide-area illumination, such as office spaces, administrative rooms, warehouses, or production areas. The symmetrical light distribution ensures homogeneous lighting without significant brightness variations. The permissible ambient temperature ranges from -20 °C to 25 °C, allowing use in air-conditioned rooms or rooms with moderate temperature loads. The protection rating IP40 protects against finger contact and splashing water, making the luminaire suitable for dry indoor areas. The impact resistance rating IK02 provides a certain level of protection against mechanical impacts, although not for heavily stressed areas.

Functions and Equipment in Detail

The luminaire features a body made of sheet steel, white-coated (similar to RAL 9016), and end caps made of impact-resistant ABS, ensuring a robust construction. An integrated rear cable channel enables orderly cable routing, especially with vertically offset wall outlets. The lateral cable entry in the end caps simplifies installation and reduces visible cables. The light source and ballast are replaceable according to ecodesign requirements, enhancing maintenance and sustainability of the luminaire. Flicker is specified as Pst LM = 1.0 at full load, indicating flicker-free light emission. The stroboscopic effect is SVM = 0.4 at full load, indicating low susceptibility to stroboscopic effects.

Technology Explained Simply

The luminaire uses LED technology, enabling a high luminous efficacy of 128 lumens per watt. This means the luminaire operates efficiently, consuming only 25 watts at a rated light output of 3200 lumens. The prismatic PMMA cover tray ensures targeted light distribution for even illumination. The protection rating IP40 protects against finger contact and splashing water, which is sufficient for indoor use. Protection class I requires earthing to ensure electrical safety. The test temperature for the filament test is 650 °C, confirming the thermal resistance of the materials used.

Compatibility and Accessories

The luminaire is designed for mounting on ceilings and walls and requires no special additional components. The integrated cable channels and lateral entry facilitate installation.

Mounting and Installation

Mounting is carried out on ceilings or walls. The luminaire features an integrated rear cable channel that supports the routing of electrical cables, especially with vertically offset wall outlets. The lateral cable entry in the end caps allows for clean and concealed cabling. The spring clips ensure a secure fit of the cover tray. Electrical connection is made via the integrated ballast, which is switchable.

Operational Advantages

The luminaire offers high luminous efficacy and a long service life of 50,000 hours at an ambient temperature of 25 °C. The flicker-free light emission (Pst LM = 1.0) and low stroboscopic effect (SVM = 0.4) ensure pleasant and fatigue-free lighting. The replaceable light source and ballast in accordance with ecodesign requirements enhance sustainability and ease of maintenance. The ENEC certification confirms testing by an independent body and ensures compliance with safety standards.

General
Rated luminous flux3200 lm
Rated power25 W
Luminous efficacy128 lm/W
Colour of lightwarm white
Colour temperature3000 K
Colour rendering index>80 Ra
Colour tolerance3 SDCM
Flicker1,0 Pst LM
Stroboscopic effect0,4 SVM
Degree of protectionIP40
Protection classI
Shock resistance ratingIK02
Test temperature, filament test650 °C
Permissible ambient temperature-20 to 25 °C
Surface protectionwhite coated (similar to RAL 9016)
Luminaire body materialsteel sheet
Head piece materialABS
Cover trayPMMA, prismatic
Type of control gearElectronic, switchable
Light sourcereplaceable in accordance with Ecodesign
CertificationCE, ENEC
