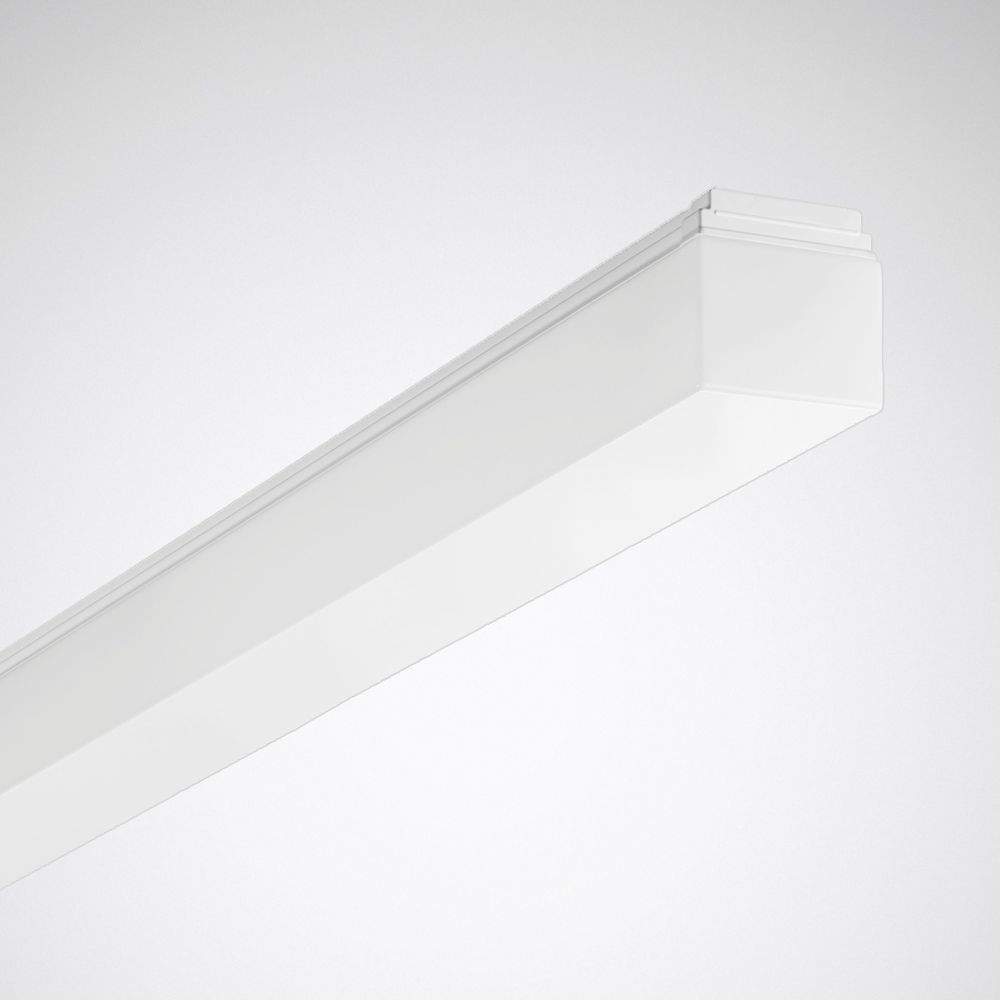

Trilux Montigo 1500 O 3300-840 ETDD arrival, recessed luminaire 30W 3400lm 4000K 6474151 content_copy

LED surface-mounted luminaires for ceiling and wall mounting. With opal PMMA cover, finely structured. With Lambertian light distribution. Glare assessment according to UGR classification (EN 12464-1) 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 35,000 h, average rated service life L70(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Head pieces made of impact-resistant ABS. With cable duct integrated at the rear for cable routing with longitudinally offset wall outlet. Side cable entry in the head piece. Dimensions (L x W) 1534 mm x 111 mm, luminaire height 101 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.4 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
Type: Montigo 1500 0 3300-840 ETDD
