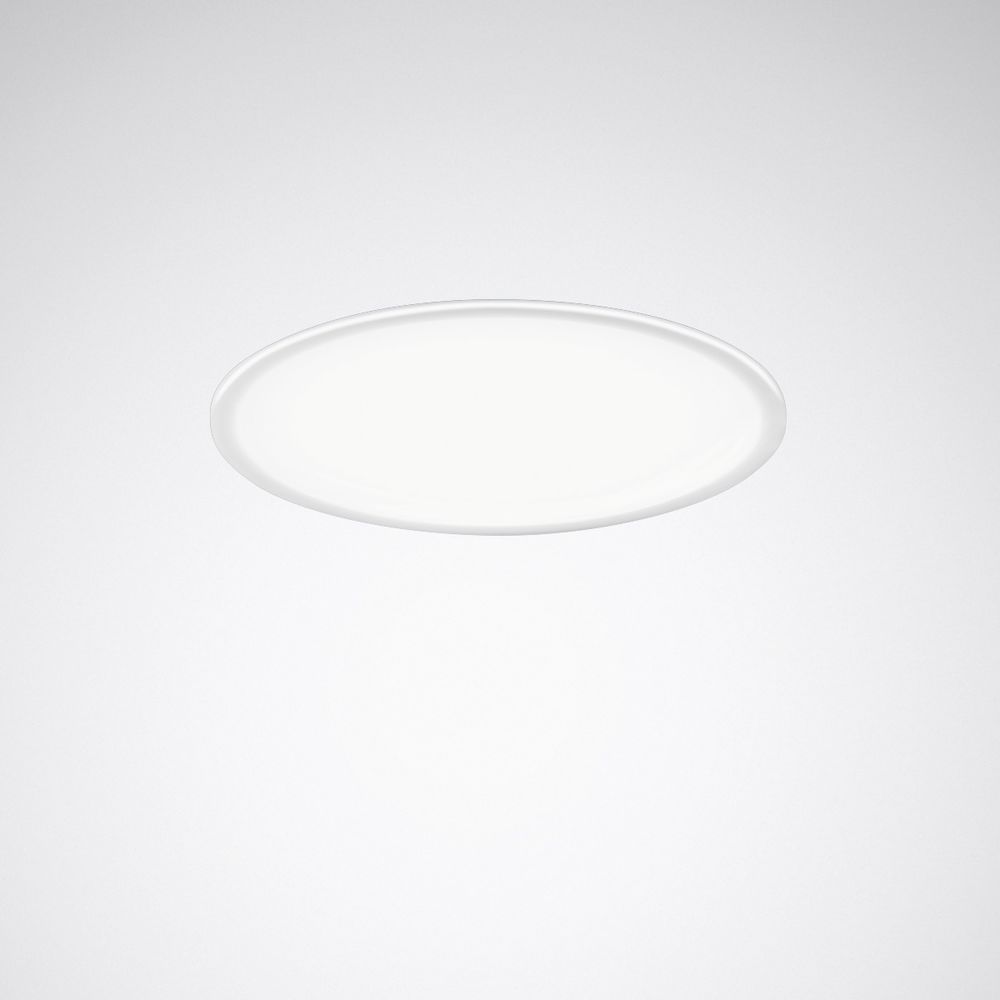

LED downlight for ceilings with a cavity dimension = 36 mm. Recessed downlight for sawn ceiling openings. Installation in cast concrete ceilings using accessories. Tool-free ceiling installation using quick-mounting springs. Ceiling cutout Ø 300 mm, installation depth 36 mm. Cover panel made of translucent PMMA. With Lambertian light distribution. With predominantly direct light distribution. Increased lighting comfort through decorative ceiling illumination. Harmonious lighting effect through evenly illuminated light output. Luminaire luminous flux and light color fixed. Rated luminous flux 3000 lm, rated power 24 W, maximum luminaire luminous efficacy 125 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Surface coated white (RAL 9016). Luminaire diameter Ø 316 mm, luminaire height 42 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529):
IP20, protection type on the room side:
IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.4 kg. With external control gear, digitally dimmable (DALI). Control gear in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type:
Inplana C09 OTA25 3000-830 ETDD 01
Questions & answers
What is the delivery time of Trilux Inplana C09 OTA25 3000-830 ETDD, 01 downlight 6455751?
The article Trilux Inplana C09 OTA25 3000-830 ETDD, 01 downlight 6455751 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6455751 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Inplana C09 OTA25 3000-830 ETDD, 01 downlight 6455751 always at the best possible price. We can give you a discount of 2% on
Trilux Inplana C09 OTA25 3000-830 ETDD, 01 downlight 6455751 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux Inplana C09 OTA25 3000-830 ETDD, 01 downlight 6455751 we can offer you a price of 418,74 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux Inplana C09 OTA25 3000-830 ETDD, 01 downlight 6455751 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
