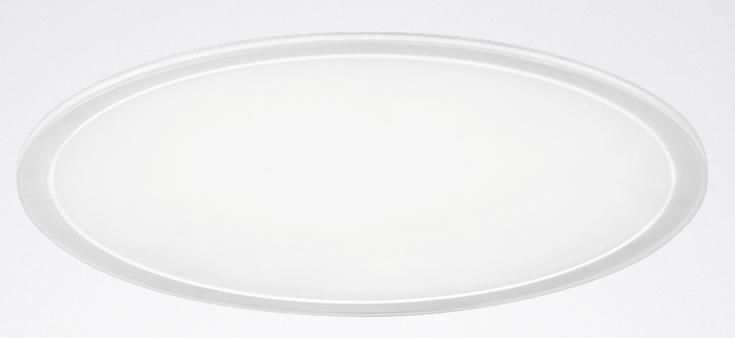

Trilux 6455551 Inplana C09 CDP19 2000-830 ETDD01 LED downlight 18W 1700lm DA300 content_copy

LED downlight for ceilings with a cavity dimension = 36 mm. Recessed downlight for sawn ceiling openings. Installation in cast concrete ceilings using accessories. Tool-free ceiling installation using quick-mounting springs. Ceiling cutout Ø 300 mm, installation depth 36 mm. With primary reflector and highly efficient CDP microprismatics. With symmetrical limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Surface coated white (RAL 9016). Luminaire diameter Ø 316 mm, luminaire height 42 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, protection type on the room side: IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.7 kg. With external control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
