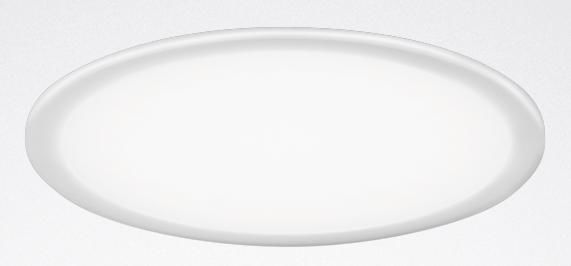

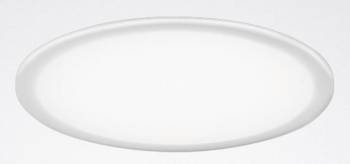

LED downlight for ceilings with a cavity dimension = 36 mm. Recessed downlight for sawn ceiling openings. Installation in cast concrete ceilings using accessories. Tool-free ceiling installation using quick-mounting springs. Ceiling cutout Ø 215 mm, installation depth 36 mm. Cover panel made of translucent PMMA. With Lambertian light distribution. With predominantly direct light distribution. Increased lighting comfort through decorative ceiling illumination. Harmonious lighting effect through evenly illuminated light output. Luminaire luminous flux and light color fixed. Rated luminous flux 1900 lm, rated power 16 W, maximum luminaire luminous efficacy 119 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Surface coated white (RAL 9016). Luminaire diameter Ø 234 mm, luminaire height 42 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): II, protection type (DIN EN 60529):
IP20, protection type on the room side:
IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.9 kg. With external control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type:
Inplana C07 OTA25 2000-830 ET 01
Questions & answers
What is the delivery time of Trilux 6455140 Inplana C07 OTA25 2000-830 ET 01, led downlight 15W 1900lm 3000K ?
The article Trilux 6455140 Inplana C07 OTA25 2000-830 ET 01, led downlight 15W 1900lm 3000K is currently
not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6455140 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux 6455140 Inplana C07 OTA25 2000-830 ET 01, led downlight 15W 1900lm 3000K always at the best possible price. We can give you a discount of 2% on
Trilux 6455140 Inplana C07 OTA25 2000-830 ET 01, led downlight 15W 1900lm 3000K if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
