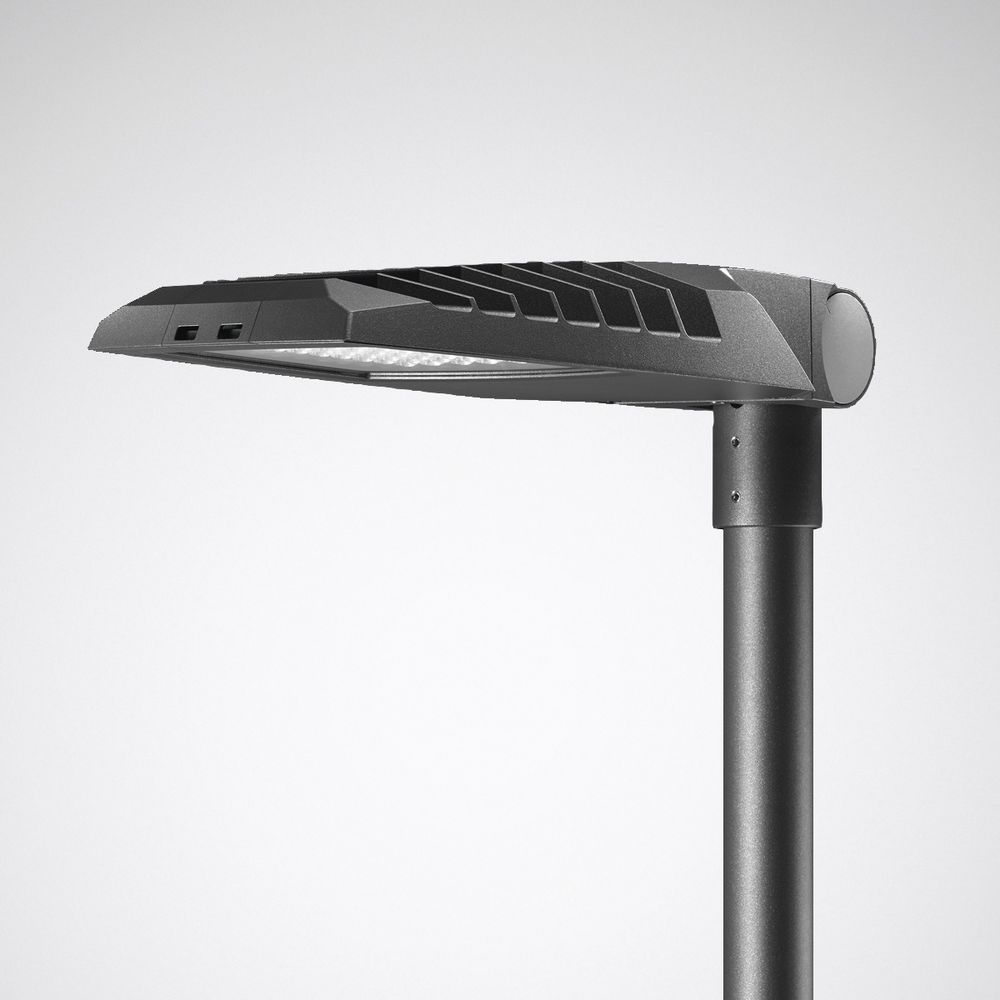

Trilux LIQ 90-AB7L-LRA/16500-740 20G1S ET LED outdoor light 124W IP66 6442840

LED top-mounted and side-mounted luminaire. Size IQ 90 (960 x 325 mm). With intelligent label for quickly calling up luminaire information using a QR code. With independent power reduction via integrated evaluation electronics. Reduction of the luminaire luminous flux to 50% for a period of 7 hours (-2h/+5h), distributed around a daily new center point of the duty cycle. Top-mounted and side-mounted mounting on or at a mast spigot Ø 76 mm. Tilt angle 0°...90°, adjustable in 5° increments, scaled. Easily and quickly adjustable from top-mounted to side-mounted luminaire using a screw accessible from the outside. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. Also suitable for mounting on masts with spigots Ø 42, 48 and 60 mm using reducers that can be ordered separately. Suitable mast on request. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With asymmetrical, wide beam light distribution. For lighting streets according to M5 and M6 lighting classes with a street width to light point height ratio of 0.4 to 0.8. Additional beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear/side shield is possible as an accessory that must be ordered separately. Luminaire luminous flux and light color are fixed, with constant luminous flux at the end of the service life (CLO). 20 LED modules. Rated luminous flux 16500 lm, rated power 116 W, maximum luminous efficacy of the luminaire 142 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 35 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. With closed side contour. Luminaire body (primary color) and pivot point (additional color) in contrasting colors. Primary color anthracite (DB 703), additional color silver gray (RAL 9006). With metallic effect, highly weatherproof. Coating suitable for marine weather on request. Pivot point in silver gray, similar to RAL 9006, highly weatherproof, powder-coated. Cover panel made of heat-treated single-pane safety glass (ESG-H), transmission rate > 98%, sealed in a die-cast frame, can be folded down and detached without tools. Protection class (EN 61140): II, protection type (DIN EN 60529): IP66, impact resistance level according to IEC 62262: IK08. Mast available on request. Wind attack area fw 0.100 m2. Weight: 21.6 kg. With connected supply line. Length of supply line 12 m. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge resistance differential mode / common mode:6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing institute. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: LIQ 90-AB7L-LRA/16500-740 20G1S ET
