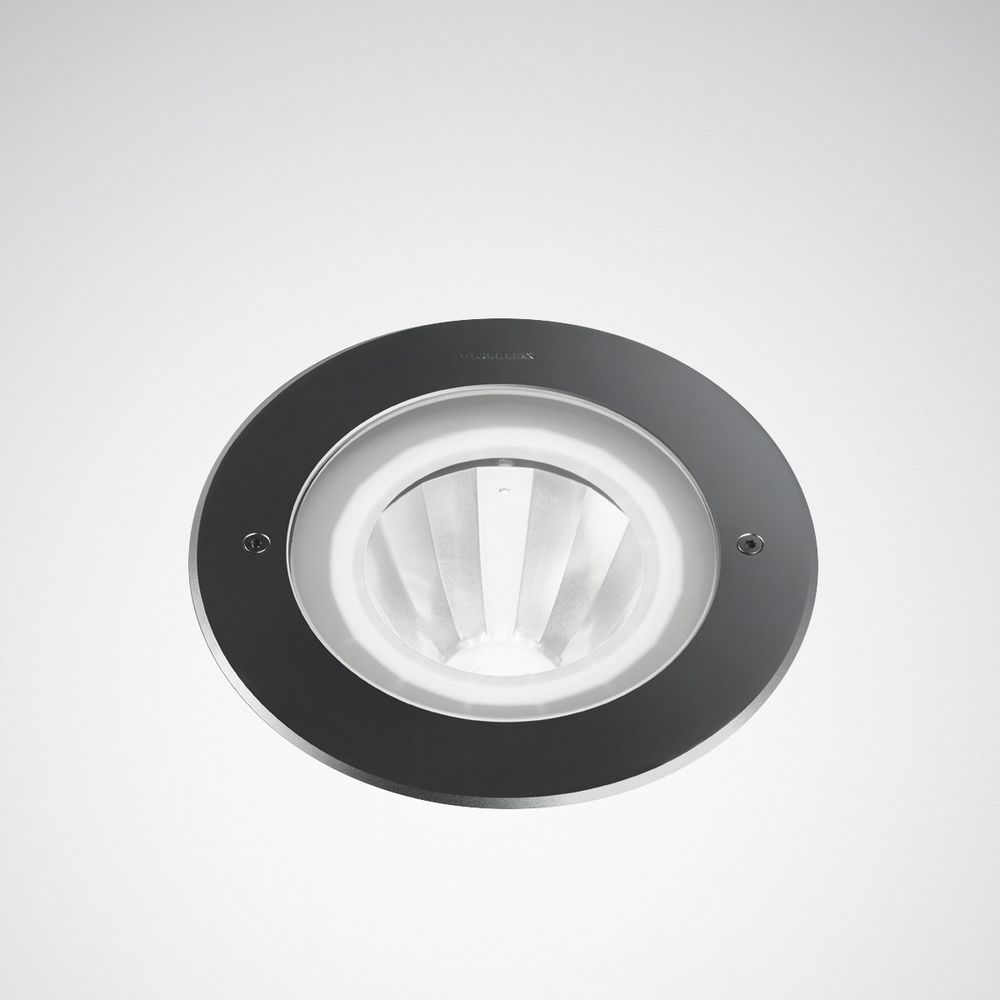

Trilux 8521RM2R/2900-840 1G1 ET recessed floor light sw IP68 6380040 content_copy

Recessed floor spotlight for accent lighting, can be walked on and driven over. For installation in the floor. A foundation with sufficient drainage that is appropriate for the load must be provided on site. Optical system made of anodized aluminum. With rotationally symmetrical, medium-wide beam light distribution. Beam angle 30°. Luminaire luminous flux and light color are fixed. 1 chip on board LED. Rated luminous flux 2900 lm, rated power 26 W, maximum luminaire luminous efficacy 112 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. Spotlight housing made of die-cast aluminum. Color black (RAL 9005). End ring permanently attached with locking screws and threaded inserts made of stainless steel. Cover panel made of 15 mm thick, tempered glass, clear. Can be driven over at walking speed up to 2000 kg. Protection class (EN 61140): I, Protection type (DIN EN 60529): IP68, Protection type lamp compartment: IP68. Shock resistance level according to IEC 62262: IK10. Protection type lamp compartment: IP68. Weight: 3.8 kg. Wired ready for connection. With connecting cable led to the outside, sealed in accordance with the protection type. Internal connection compartment sealed with epoxy resin. The light is suitable for operation on a 230 V direct current network (DC). With electronic control gear, switchable. The light is suitable for operation on a 230 V direct current network (DC). Surge resistance differential mode / common mode: 2 kV / 1 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
Type: 8521 RM2R/2900-840 1G1 ET
