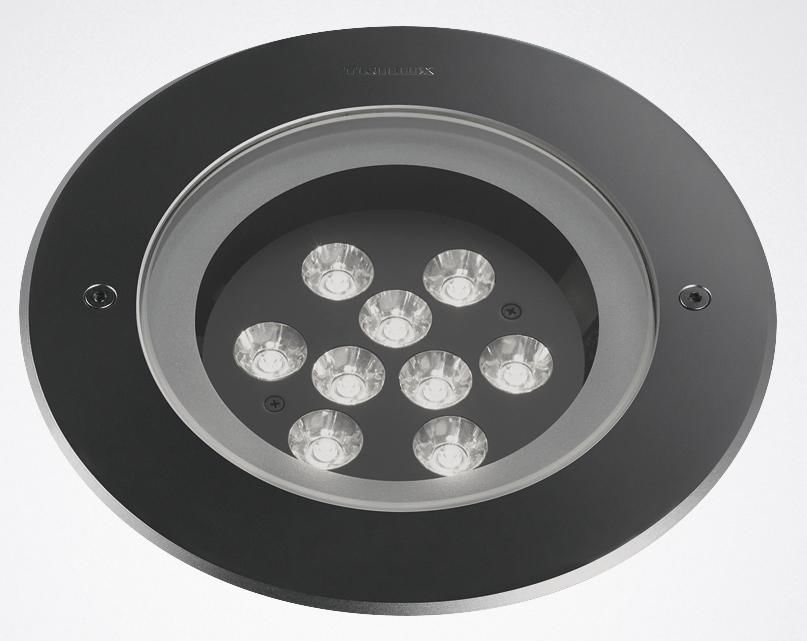

Trilux 8521 RES2L / 1500-830 1G1 ET 05, floor light 6379040

Recessed floor spotlights for accent lighting, can be walked on and driven over. For installation in the floor. A foundation with sufficient drainage and appropriate load must be provided on site. With rotationally symmetrical, deep beam light distribution. Beam angle 10°. Luminaire luminous flux and light color are fixed. LED system with 9 LEDs. Rated luminous flux 1500 lm, rated power 16 W, maximum luminaire luminous efficacy 94 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Other LED light colors available on request. Average rated service life L80(tq 25 °C) = 50,000 h. Spotlight housing made of die-cast aluminum. Color black (RAL 9005). End ring permanently attached with locking screws and threaded inserts made of stainless steel. Cover panel made of 15 mm thick, clear, tempered glass. Can be driven over at walking speed up to 2000 kg. Protection class (EN 61140): I, protection type (DIN EN 60529): IP68, shock resistance level according to IEC 62262: IK10. Weight: 3.8 kg. Wired ready for connection. With connecting cable routed to the outside, sealed in accordance with the protection type. Internal connection compartment sealed with epoxy resin. The light is suitable for operation on a 230 V direct current network (DC). With electronic control gear, switchable. The light is suitable for operation on a 230 V direct current network (DC). Surge resistance differential mode / common mode: 2 kV / 1 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE mark.
Type: 8521 RES2L/1500-830 1G1 ET 05
