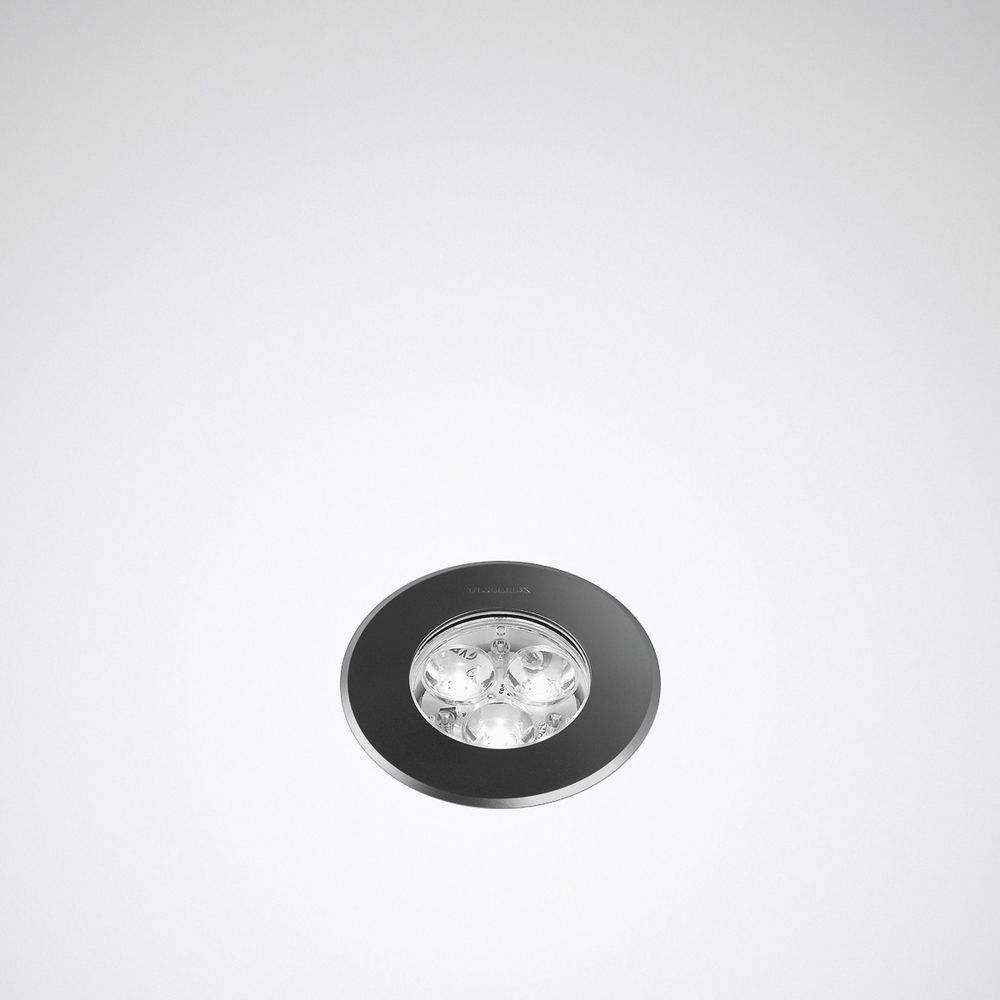

Trilux 8501RE1L/500-840 1G1 ETD 05 LED recessed floor light 500lm IP68 6376857

LED floor recessed spotlights for accent lighting, can be walked on and driven over. For installation in the floor. A foundation with sufficient drainage and appropriate load must be provided on site. Please order the floor recessed pot separately as an accessory. With rotationally symmetrical, deep beam light distribution. Beam angle 10°. Luminaire luminous flux and light color are fixed. LED system equipped with 3 LEDs. Rated luminous flux 500 lm, rated power 5 W, maximum luminaire luminous efficacy 100 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Other LED light colors available on request. Average rated service life L80(tq 35 °C) = 50,000 h. Spotlight housing made of die-cast aluminum, color jet black, similar to RAL 9005, powder-coated. With mounted stainless steel cover ring, round. (RAL 9005). Cover plate made of 15 mm thick, tempered glass, clear. Can be rolled over up to 2000 kg. Floor-mounted pot made of weather-resistant PVC pipe. With luminaire fastening ring made of glass fiber reinforced PA6. Protection class (EN 61140): II, protection type (DIN EN 60529): IP68, protection type lamp compartment: IP68. Shock resistance level according to IEC 62262: IK10. Protection type lamp compartment: IP68. Weight: 0.6 kg. Wired ready for connection. With external connection cable, 2 x 1.5 mm2, sealed in accordance with protection type. Internal connection compartment sealed with epoxy resin. The luminaire is suitable for operation on a 230V direct current network (DC). With control gear, dimmable. Dimmable using a leading edge phase dimmer. Surge voltage resistance differential mode / common mode: / . The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
Type: 8501 RE1L/500-840 1G1 ETD 05
