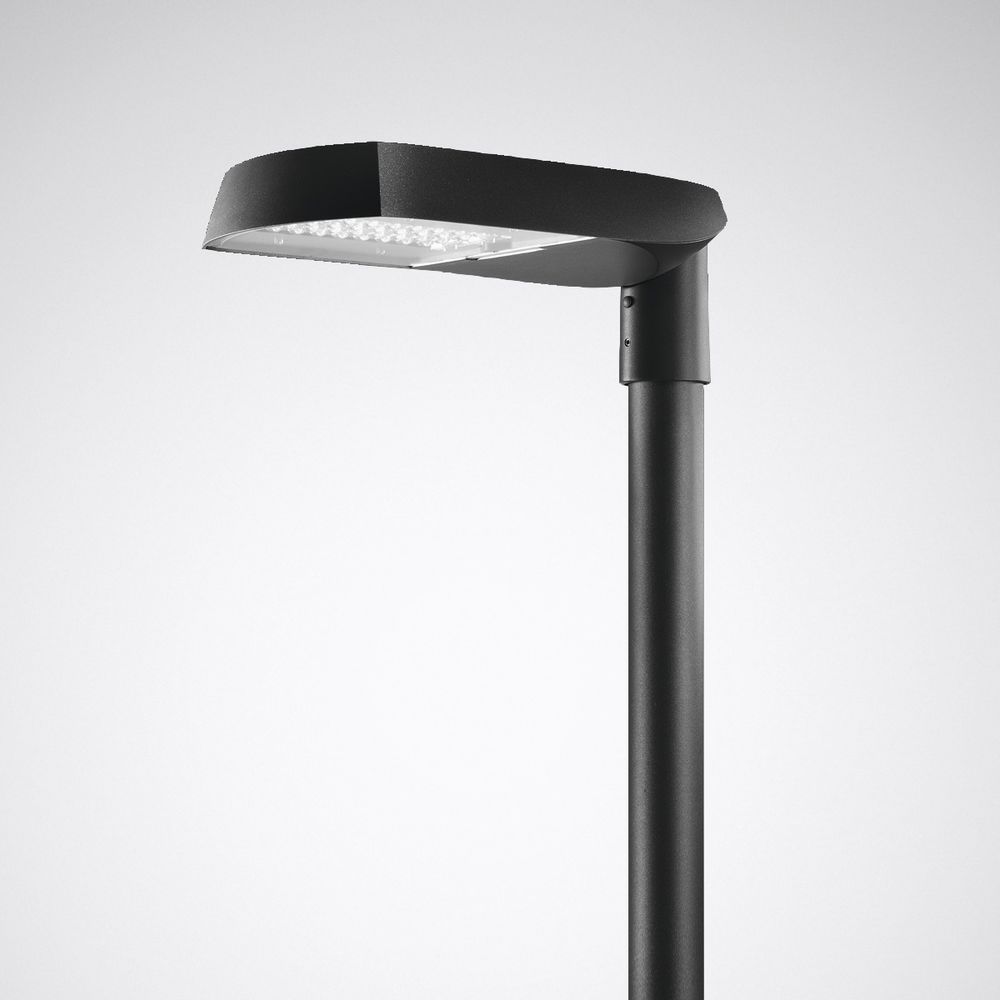

Trilux Cuvia 60-AB6L/4200-740 8G1S ET LED outdoor light 30W IP66 6340040

Mast-top or side-mounted luminaire with flat cover plate. With intelligent label for quickly accessing luminaire information using a QR code. Top-mounted and side-mounted luminaire for mast top Ø 76 mm. Tilt angle for top-mounted mounting 0°, 10°, for side-mounted mounting -10°, 0° adjustable. Also suitable for use with masts Ø 42, 48 and 60 mm using reducers that must be ordered separately. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With PMMA cover plate, clear. With asymmetrical wide beam light distribution. The subsequent installation of a rear / side shield is possible as an accessory that must be ordered separately. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with constant luminous flux at the end of the service life (CLO). Rated luminous flux 4200 lm, rated power 29 W, maximum luminaire luminous efficacy 145 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) = 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Versions with 3-stage switch for setting different luminous fluxes on request. Luminaire body made of die-cast aluminum. Surface anthracite coated (DB 703). Coating highly weather-resistant. Coating suitable for marine weather on request. With sulfur-free seals. The modular luminaire consists of the base module and the lighting module. The mechanical and electrical connection of the modules is done without tools. Protection class (EN 61140): II, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK09. Mast available on request. Wind attack area fw 0.050 m2. Weight: 7.7 kg. With connected, 8000 mm long supply cable. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type: Cuvia 60-AB6L/4200-740 8G1S ET
