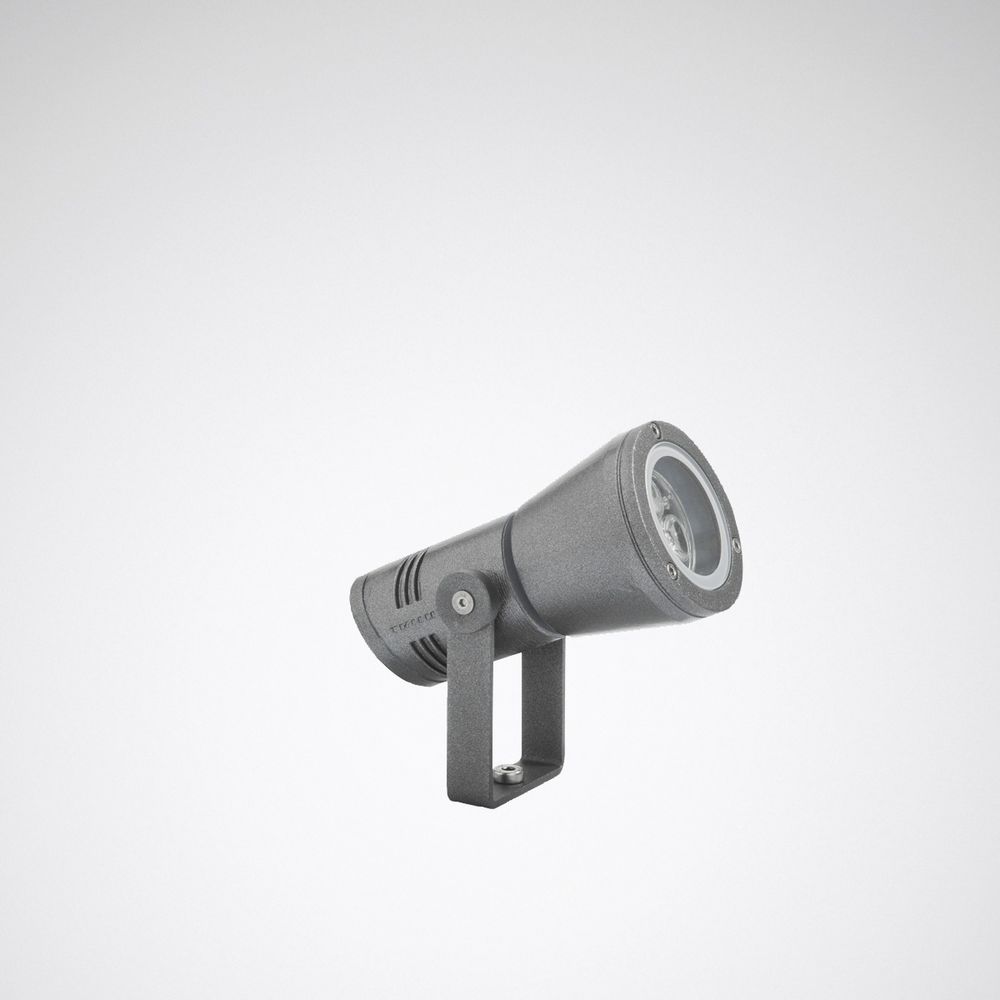

Compact spotlight for accent lighting. The luminaire is part of a series with variants that cover different lighting requirements with the same luminaire design. For direct installation on a solid surface. With ground spike (accessory) suitable for fastening in the ground. Mast fastening using stainless steel mast clamp (accessory). Clamping range Ø 40-130 mm. With rotationally symmetrical, deep beam light distribution. Maximum light intensity in beam angle 2 x 3°. Luminaire luminous flux and light color fixed. With LED lens system. Number of LEDs: 3. Rated luminous flux 500 lm, rated power 6 W, maximum luminaire luminous efficacy 83 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 4 SDCM. Other LED light colors available on request. Average rated service life L80(tq 35 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Spotlight housing made of die-cast aluminum. Surface anthracite coated (DB 703). With metallic effect, highly weather-resistant. On request, the luminaire body can be made in the following colors at no extra cost: Black textured (Akzo Nobel 8118669, similar to RAL 9005, V5), white textured (Akzo Nobel 8158870, similar to RAL 9016, V6), gray textured (Akzo Nobel 8129595, similar to RAL 9006, V7). Other color variants according to RAL or DB color code are available on request for an additional charge. Rotatable and pivotable, pivot range 195°, pivot range 360°. With flat cover panel, extra-clear, 4 mm. Protection class (EN 61140): I, protection type (DIN EN 60529):
IP65, protection type lamp compartment:
IP65. Shock resistance level according to IEC 62262: IK06. Protection type lamp compartment:
IP65. Weight: 1.1 kg. Equipped with 5000 mm connection cable at the factory. Cable glands for connection cable Pg9, Ø 5.5 mm - 10 mm. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The LED system with control gear is suitable for operation on direct current networks. Surge voltage resistance differential mode / common mode: 1 kV / 2 kV. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
Type:
Faciella 08 RE1L/500
Questions & answers
What is the delivery time of Trilux Faciella 08 RE1L / 500-840 1G1 ET, deep LED electronic transformer?
The article Trilux Faciella 08 RE1L / 500-840 1G1 ET, deep LED electronic transformer is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Trilux 6329440 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Trilux Faciella 08 RE1L / 500-840 1G1 ET, deep LED electronic transformer always at the best possible price. We can give you a discount of 2% on
Trilux Faciella 08 RE1L / 500-840 1G1 ET, deep LED electronic transformer if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Trilux Faciella 08 RE1L / 500-840 1G1 ET, deep LED electronic transformer we can offer you a price of 353,88 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Trilux Faciella 08 RE1L / 500-840 1G1 ET, deep LED electronic transformer via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
