Trilux 6285140 8511RES / LED600-840 ET Bodeneinbaule, 8511RES / LED600-840 ET

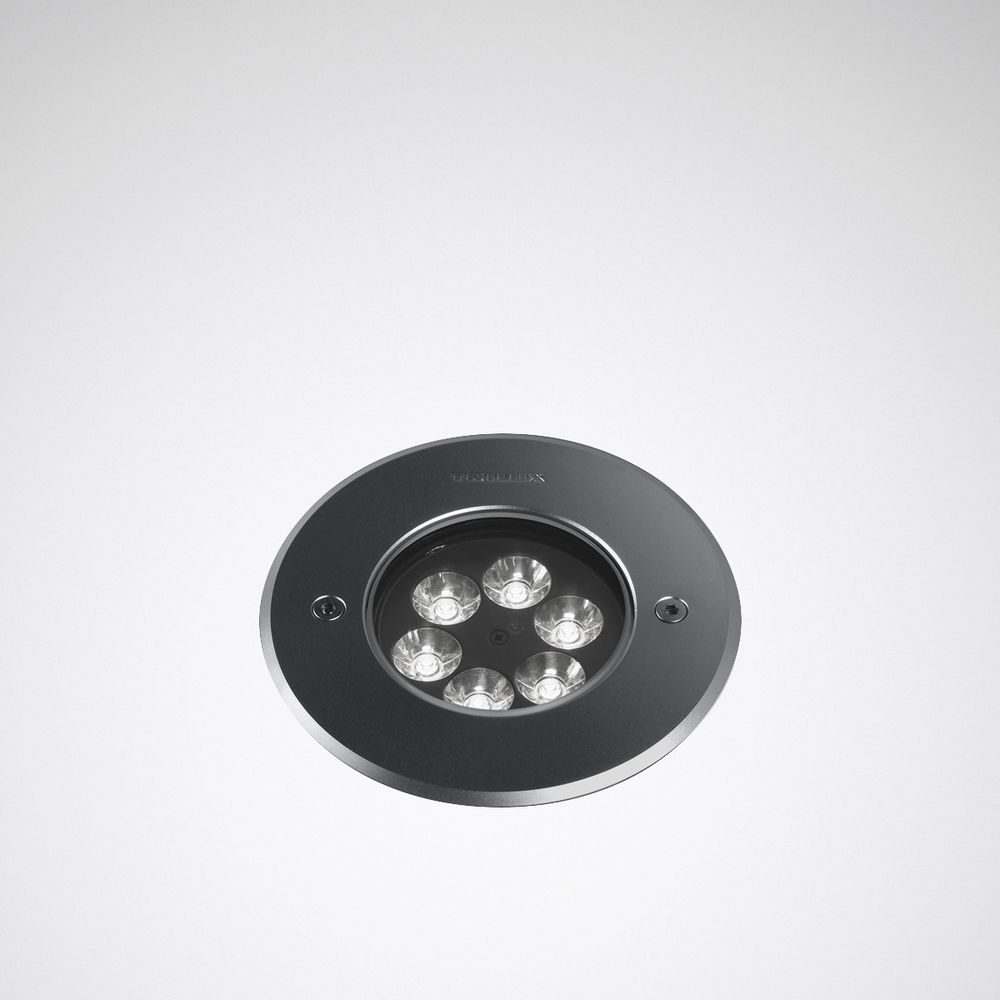

LED floor recessed spotlight for accent lighting, can be walked on and driven over. For floor installation. LED system can be swiveled +/- 10°. With rotationally symmetrical, deep beam light distribution. Beam angle 10°. Luminaire luminous flux and light color are fixed. LED system equipped with 6 LEDs. Rated luminous flux 1000 lm, rated power 13 W, maximum luminaire luminous efficacy 77 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) = 3 SDCM. Other LED light colors available on request. Average rated service life L80(tq 25 °C) = 50,000 h. Spotlight housing and cover ring made of die-cast aluminum, color deep black, similar to RAL 9005, powder-coated. (RAL 9005). Cover plate made of 15 mm thick, clear, tempered glass. Static load capacity up to 1500 kg. Can be rolled over up to 2500 kg. Cover ring permanently attached with locking screws and threaded inserts made of stainless steel. Floor-mounted pot made of weather-resistant PVC pipe. With luminaire fastening ring made of glass fiber reinforced PA6. Protection class (EN 61140): II, protection type (DIN EN 60529): IP68, protection type lamp compartment: IP68. Shock resistance level according to IEC 62262: IK10. Protection type lamp compartment: IP68. Weight: 1.3 kg. Wired ready for connection. With external connection cable, 2 x 1.5 mm2, sealed in accordance with protection type. Internal connection compartment sealed with epoxy resin. With electronic control gear, switchable The LED system with control gear is suitable for operation on direct current networks. Surge voltage resistance differential mode / common mode: / . The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
Type: 8511RES/LED600-840 ET
