Trilux mounted luminaire fine-prism structure, Belviso D2 CDP LED3800nw ETDD 01

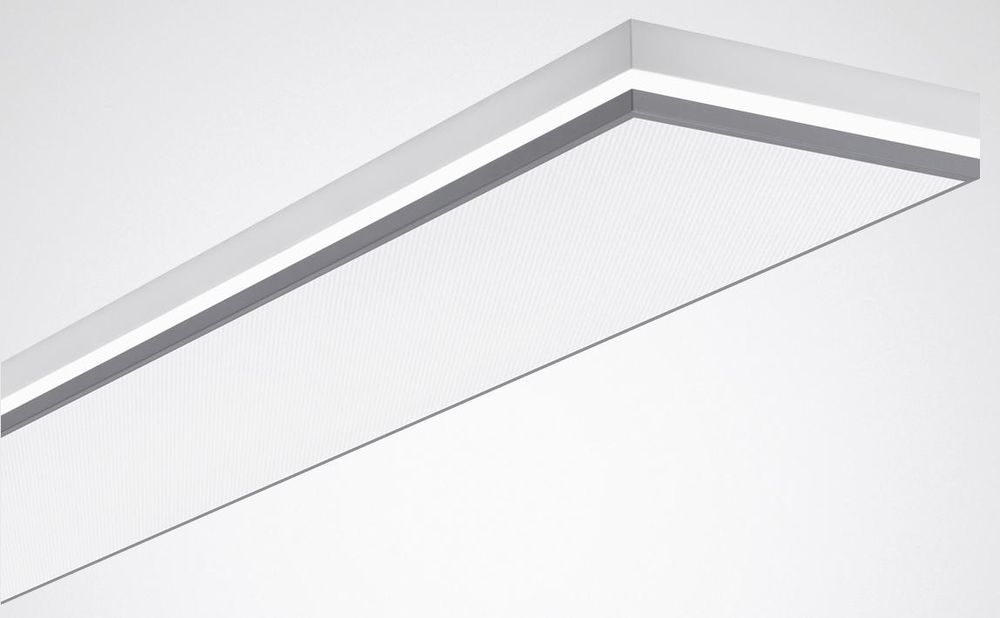

LED ceiling-mounted luminaire with microprismatic cover, rectangular. With four integrated LED panels. For mounting on ceilings and overhangs indoors. With highly efficient CDP microprismatics. Completely harmonious lighting effect thanks to evenly illuminated light output. With symmetrically limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color location tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated in white (RAL 9016). Dimensions (L x W): 1245 mm x 310 mm, luminaire height 73 mm. Spring lock for convenient opening and installation. With all-round, exclusive light frame. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.5 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) available 15 years after invoice date subject to reasonable changes in the interests of progress.
Type: Belviso D2 CDP LED38
