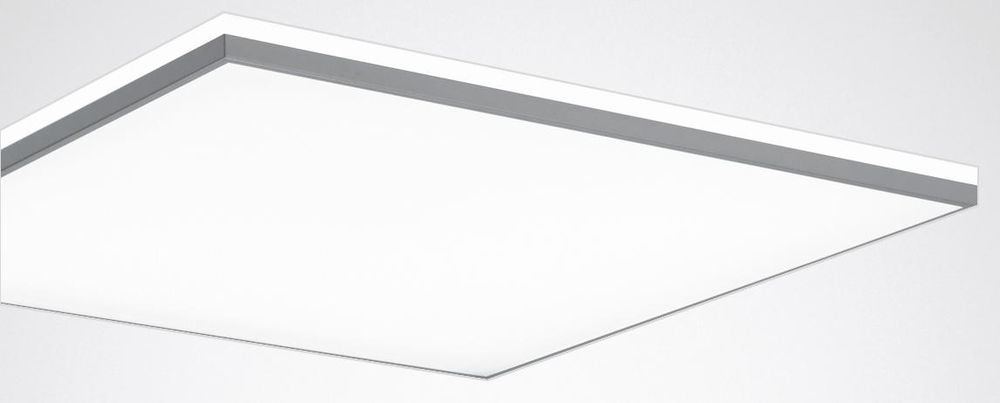

Trilux 6066540 Belviso C2 600 CDP LED3900nw ET 01, optimized, new CDP microprismatic

LED semi-recessed luminaire with microprismatic cover CDP. Version M73 (600 mm x 600 mm). Universally applicable in sawn installation openings and in system ceilings with concealed or visible support rails. Installation in system ceilings with asymmetrical, concealed support rails on request. Version M73. For system dimensions 600 mm x 600 mm. For ceiling cutouts 580 mm x 580 mm, installation depth = 65 mm. For installation in sawn installation openings and in system ceilings with concealed support rails, a set of Belviso C2 CBB mounting brackets is required, which must be ordered separately. With highly efficient microprismatic CDP. With symmetrically limited wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) 80. Color tolerance (initial MacAdam) = 3 SDCM. Average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). With all-round, exclusive light frame. Dimensions (L x W): 595 mm x 595 mm, luminaire height 72 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.2 kg. With 3-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. Luminaire 10 years, spare parts (LED module, control gear, optical system) 15 years after the invoice date, subject to reasonable changes that serve progress.
Type: Belviso C2 600 CDP L
