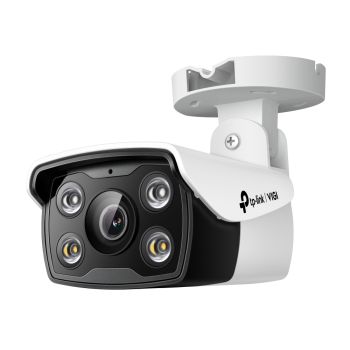

TP-Link VIGI C340(2.8mm) 4MP Outdoor Full Color IP Camera
|
60,96 EUR |
|
|
( 72,54 EUR incl. VAT ) ≈ £51.02 | ≈ $67.97 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 10. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1136320 |
| Mfg Part No: | VIGI C340(2.8mm)(UN) |
| UPC/EAN: | 4897098688618 |
| Weight: | 0.123 kg |
| Type: | CAM |
Product information for TP-Link VIGI C340(2.8mm)(UN):
Monitor clear and colorful details 24/7, even in the pitch black. VIGI's full-color camera offers maximum resolutions of 4 megapixels and ensures colorful surveillance with its large aperture lens, highly sensitive sensor and attached additional lights.
Highlights
- 4MP High Definition - more than enough pixels to capture some of the more discrete details
- Get 24-hour color details, even in pitch-black conditions, via the highly sensitive sensor and included headlight LEDs
- Waterproof: Reliable IP66 ensures the stable outdoor performance
- Intelligent detection (human detection, motion detection, area intrusion, line crossing, video tampering)
- H.265+: Without additional bandwidth, your cameras transmit compressed, crystal-clear videos without compromising image quality
- PoE/12V DC: Two power options not only offer you more convenience, but also make your wiring remarkably easy
- VIGI app: Manage your security from the palm of your hand with the VIGI app
- IP camera
- ear category (ElektroG): relevant, category 5: Small appliances < 50 cm (all sides), small appliances B2C
- Protection class: IP66 - Dustproof, protection against strong water jets
- Housing material: Plastic
- Mounting type: Drilling
- Swivel/tilt (device contains joints)
- Area of application: Outdoor
- Fastening: Ceiling , Wall
- Frame rate: 30 fps
- Viewing angle: 113.6 °
- Video resolution width: 2560 px
- Video resolution height: 1440 px
- Video resolution: HD
- Night vision
- Fixed focal length: 2.8 mm
- Camera resolution: 4 MP
- Chip type: CMOS
- Aperture max: f/1.6
- Sensor size: 1/3\dlash- Video encryption
- microSD card reader: 1
- Memory expandable by: 256 GB
- RJ45: 1
- PoE-capable Ethernet interfaces
- Microphone: Integrated Microphone
- Audio transmission
- Motion detectors
- Operating mode: App
- Video compression: H.264, H.265/HEVC
- Network, PoE
- Ethernet standard: 10/100 MBit/s
- Streaming > Basic properties
- Color: white, black
- Height: 70 mm
- Length/depth: 174 mm
- Width: 78 mm
- TP-Link VIGI C340 4MP IP Network Camera (2.8mm)
- Waterproof cable connections
- Mounting accessories
- Quick start guide
Product type
Specifications
Camera
Memory
Ports
Audio
Sensors
Functions
Power supply
Data transmission
Scope of delivery
| Audio | |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bit rate range | 0 - 64 Kbit/s |
| Built-in speaker(s) | |
| Built-in microphone | |
| Camera | |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 122° |
| Tilt angle range | -90 - 90° |
| Pan range | -90 - 90° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| LED indicators | |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Progressive scan | |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 64 m |
| Observe distance | 27 m |
| Recognize distance | 13 m |
| Maximum aperture number | 1.6 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| Management features | |
| Web browser | |
| Reset button | |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Live view | |
| Night vision | |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Night vision | |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | |
| Manual | |
| Packaging data | |
| Package width | 128 mm |
| Package depth | 218 mm |
| Package height | 103 mm |
| Package weight | 424 g |
| Package type | Box |
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 3.4 W |
| Power consumption (max) | 7 W |
| DC output voltage | 12 |
| Security | |
| Password protection | |
| Video motion detection | |
| IP address filtering | |
| HTTPS encryption | |
| Automatic Network Replenishment (ANR) | |
| Network access storage (NAS) | |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Built-in HDD | |
| Card reader integrated | |
| Sustainability | |
| Compliance certificates | BSMI, CE, KC |
| Sustainability compliance | |
| Video | |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Privacy masking | |
| Back Light Compensation (BLC) | |
| Highlight Compensation (HLC) | |
| Digital Wide Dynamic Range (DWDR) | |
| Region of Interest (ROI) encoding | |
| Smart IR | |
| 3D positioning | |
| Weight & dimensions | |
| Width | 174 mm |
| Height | 70 mm |
| Length | 78 mm |
| Weight | 280 g |
