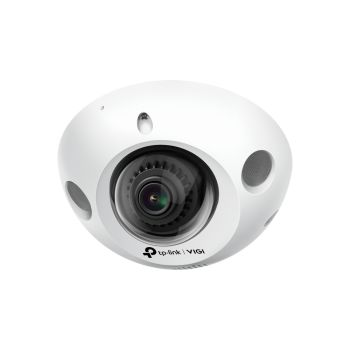

TP-Link VIGI C230I MINI(2.8MM) IP camera VIGI C230I Mini (2.8 mm) content_copy

3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Small but compact with wide views: With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

Audio
Built-in speaker(s)
Built-in microphone
Camera
Lens viewing angle, horizontal	106.9°
Lens viewing angle, vertical	56.9°
Lens viewing angle, diagonal	127.9°
Design
Form factor	Dome
Mounting type	Ceiling
Product colour	White
Housing material	Plastic
IK code	IK08
Image sensor
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Sensor type	CMOS
Lens system
Fixed focal length	2.8 mm
Management features
Reset button
Network
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet LAN
Wi-Fi
Bluetooth
Night vision
Night vision distance	30 m
LED type	IR
Night vision
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Packaging content
Number of cameras	1
Performance
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Certification	CE/VCCI/BSMI/KC/ONVIF
Day/night mode
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power source type	DC, PoE
Power consumption (max)	7.5 W
DC output voltage	12
Security
Password protection
IP address filtering
HTTPS encryption
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Built-in HDD
Card reader integrated
Video
Maximum resolution	2304 x 1296 pixels
Total megapixels	3 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Noise reduction
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Digital Wide Dynamic Range (DWDR)
Weight & dimensions
Width	114 mm
Depth	58 mm
Height	114 mm

---
