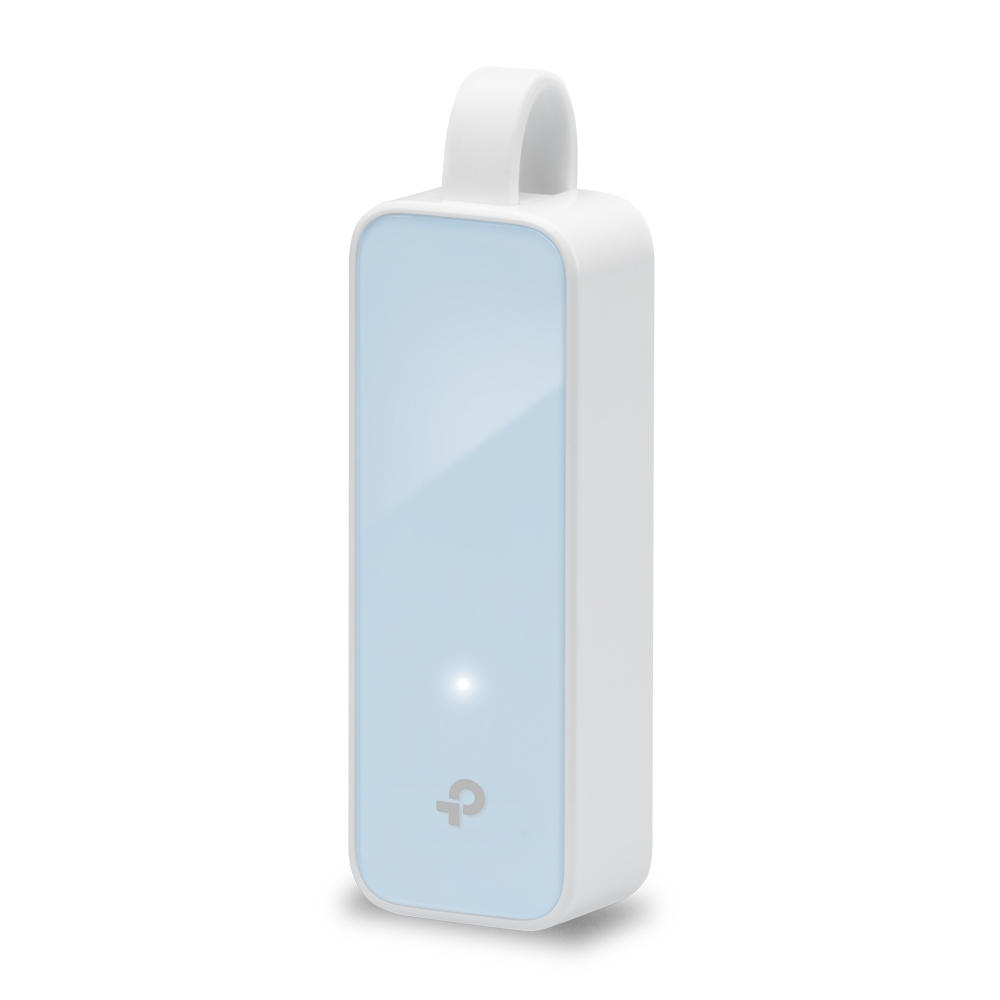

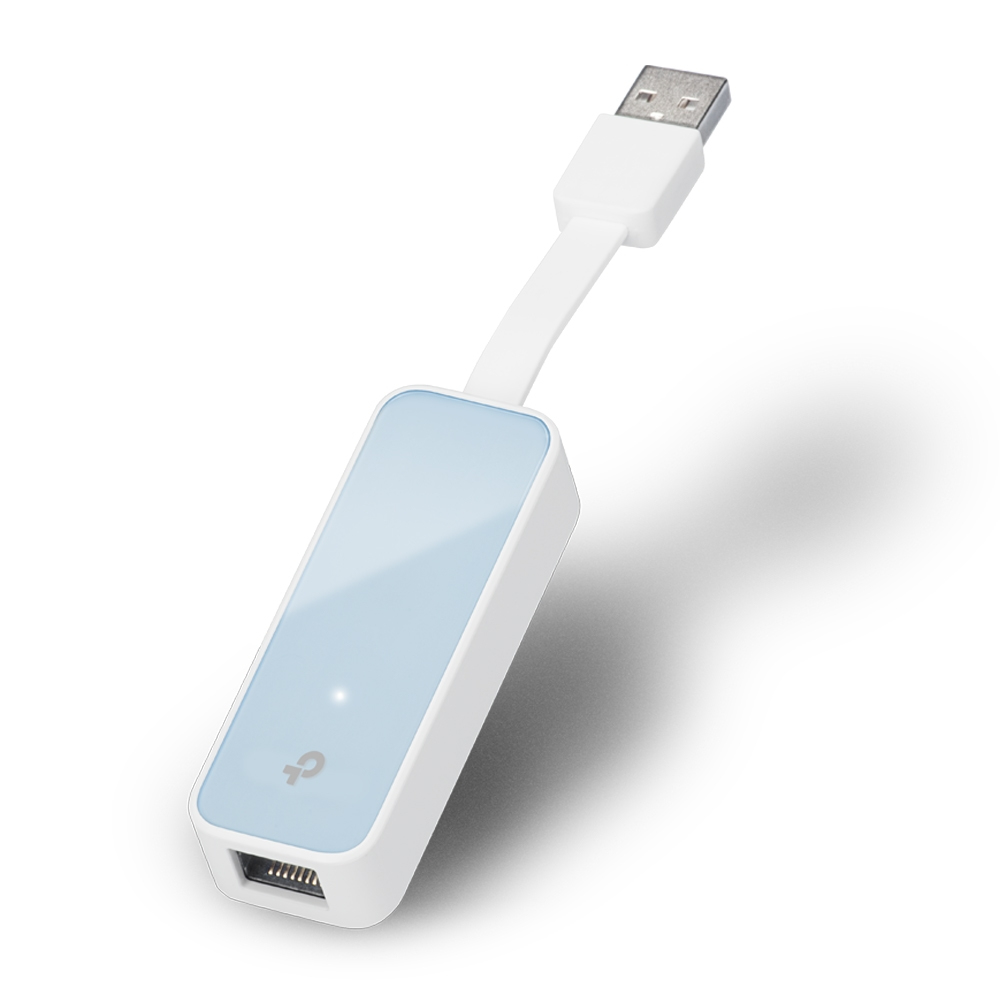

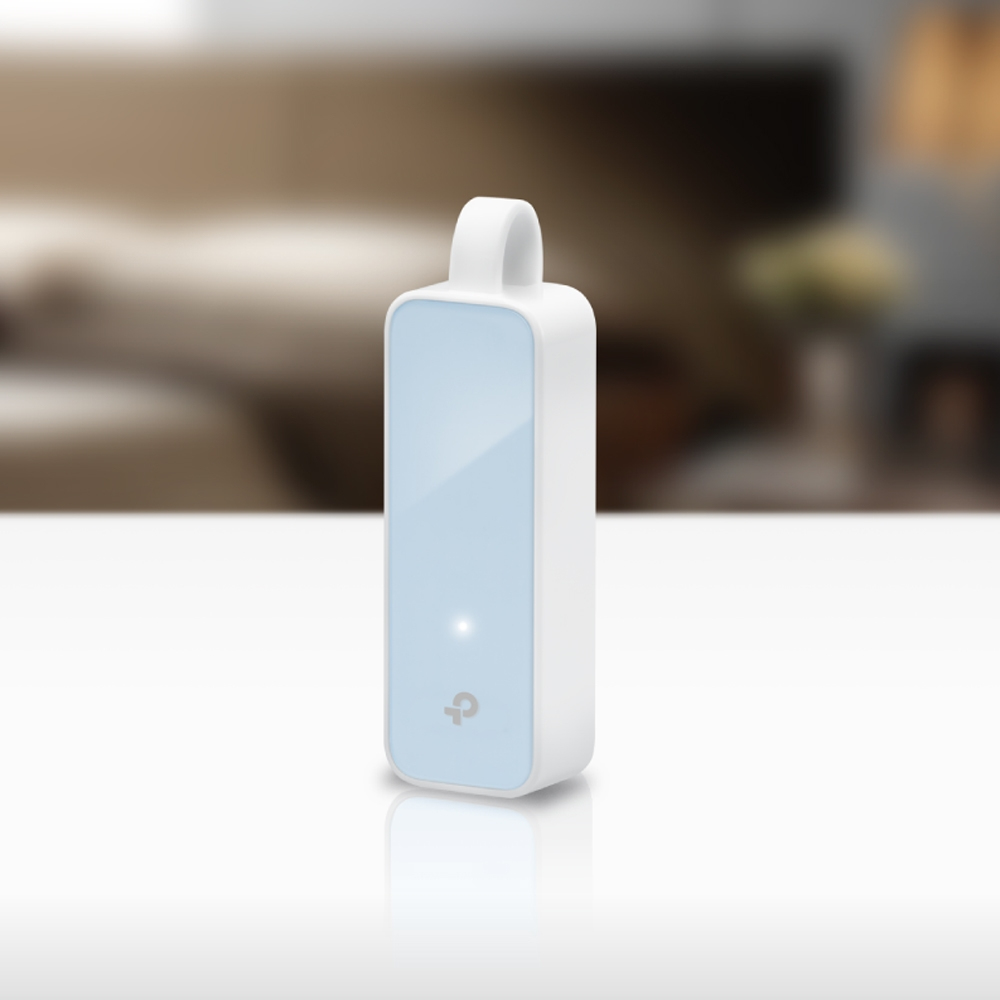

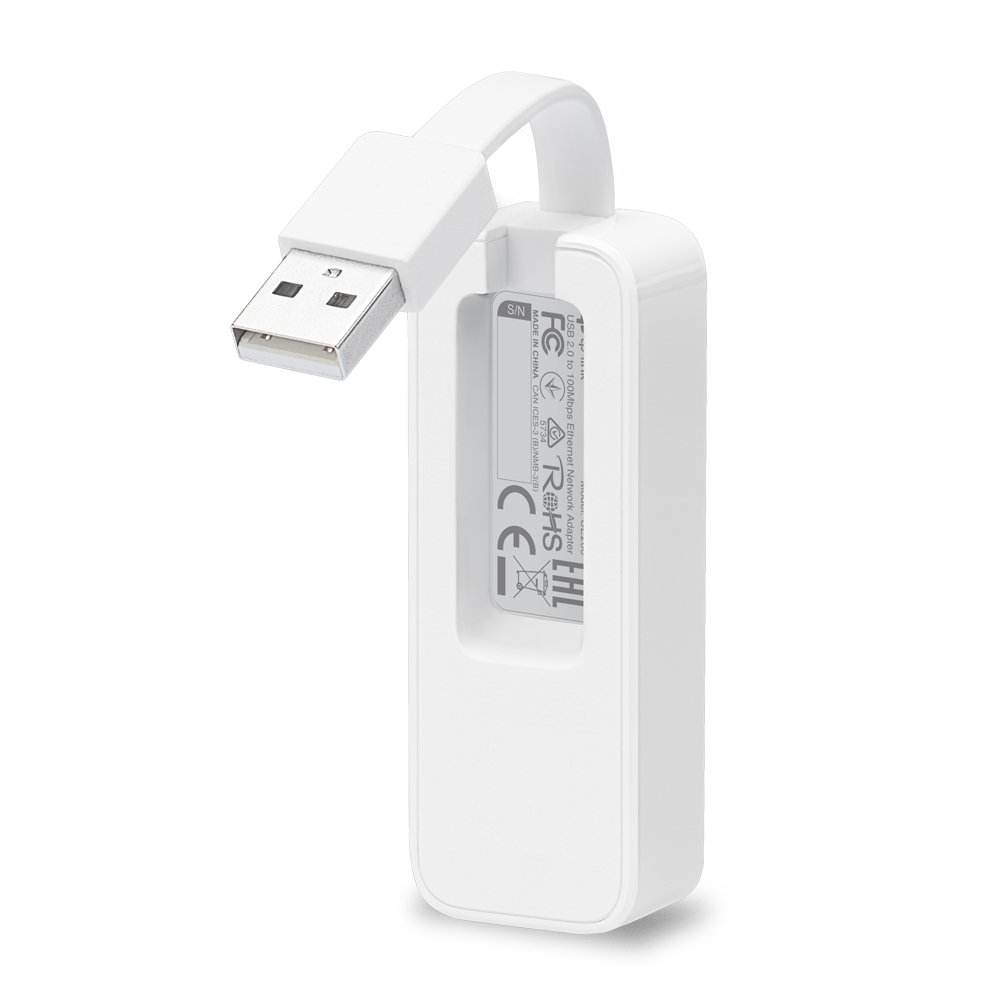

TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter

Your rating:
Average rating
product review for TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter
( 4 / 5 ) 1 ratings
TP-Link UE200
This image may differ from the desired article.
TP-Link UE200TP-Link UE200TP-Link UE200TP-Link UE200TP-Link UE200TP-Link UE200TP-Link UE200
8,42 EUR
( 10,02 EUR incl. VAT )
≈ £7.05  |  ≈ $9.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >10 pieces
1x TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter
Datasheet:file_download Download
Lieske Part No.:747894
Mfg Part No: UE200
UPC/EAN: 6935364094614
Weight:0.047 kg
Type:CTLR

Product information for TP-Link UE200:

The TP-Link UE200 is a USB 2.0 network adapter that enables devices without an integrated LAN port to establish a wired Ethernet connection via the USB interface. It is specifically designed for mobile end devices such as ultrabooks, laptops, and notebooks that lack a physical network interface but require stable and fast data transfer over a local network. The device operates with a USB 2.0 interface and provides an Ethernet-LAN connection (RJ-45) with a maximum data transfer rate of 100 Mbit/s. The cabling technology is based on 10/100BaseT(X), ensuring compatibility with standard Ethernet networks.

Applications
The UE200 is particularly suitable for mobile work environments where a WLAN connection is unavailable or not sufficiently stable. It is ideal for notebooks, convertibles, and other devices that feature a USB port but no built-in network connection. The compact design and foldable structure make it a practical gadget for on-the-go use, as it easily fits into pockets or laptop bags and does not protrude inconveniently from the USB port.

Features and Specifications in Detail
The adapter supports Plug & Play, meaning it is typically recognized and used without additional installation or driver configuration in most cases. The LED indicators signal the operating status and network connection. Backward compatibility with USB 1.1 ensures the adapter also functions with older devices featuring slower USB interfaces, although the maximum data transfer rate will be reduced accordingly. The interface is designed as a straight USB plug, enabling easy connection.

Technology Explained Simply
The UE200 uses the RTL8152B chipset, which is responsible for converting the USB signal into an Ethernet signal. Data transmission occurs via the Ethernet protocol with a maximum rate of 100 Mbit/s, although the actual speed depends on the network infrastructure and cabling. Power is supplied through the USB interface, eliminating the need for an external power source. The operating temperature ranges from 0 to 40 °C, allowing use in typical indoor environments and moderate outdoor temperatures. The storage temperature can range from -40 °C to 70 °C, ensuring safe storage in various environments.

Compatibility and Accessories

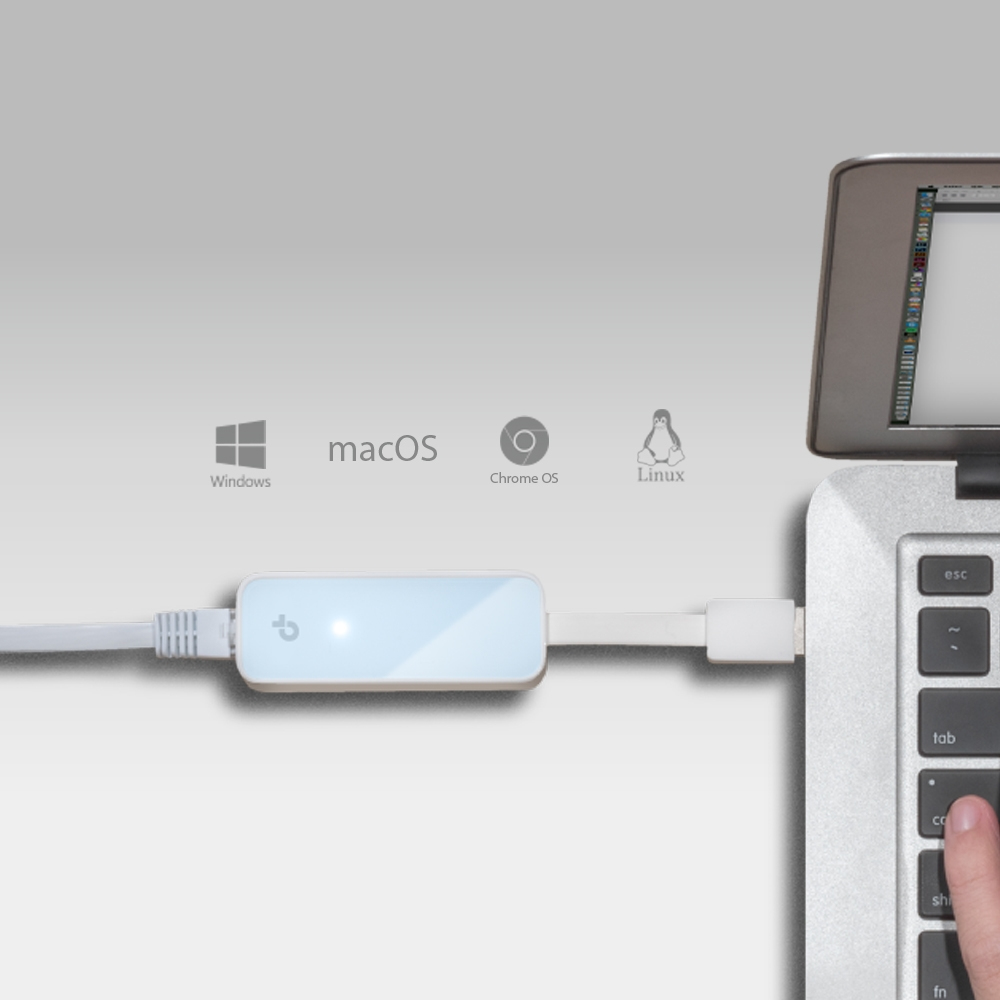

The UE200 is compatible with a wide range of operating systems. Supported systems include Windows 7, Windows 10 in various editions (including Home, Pro, Enterprise, Education, IoT), Mac OS X from version 10.5 to 10.13, and Linux operating systems. Compatibility with multiple operating systems makes the adapter universally usable in office environments, home applications, and technical work settings.

Installation and Mounting
Installation is performed by simply inserting the adapter into an available USB port. Most systems automatically detect it and install the required drivers. In some cases, particularly under Mac OS X 10.11, a manual driver download may be necessary. The quick installation guide included in the package assists with setup. No additional tools or installation steps are required.

Advantages in Operation
The UE200 provides a fast and stable data connection that is independent of WLAN signals or interference. The wired connection ensures a reliable network link, which is particularly beneficial for critical applications such as video streaming, file transfers, or remote maintenance. The compact design and foldable format enhance portability and reduce the risk of damage from frequent insertion and removal. The Plug & Play function minimizes setup time and makes the adapter accessible to users without technical expertise.

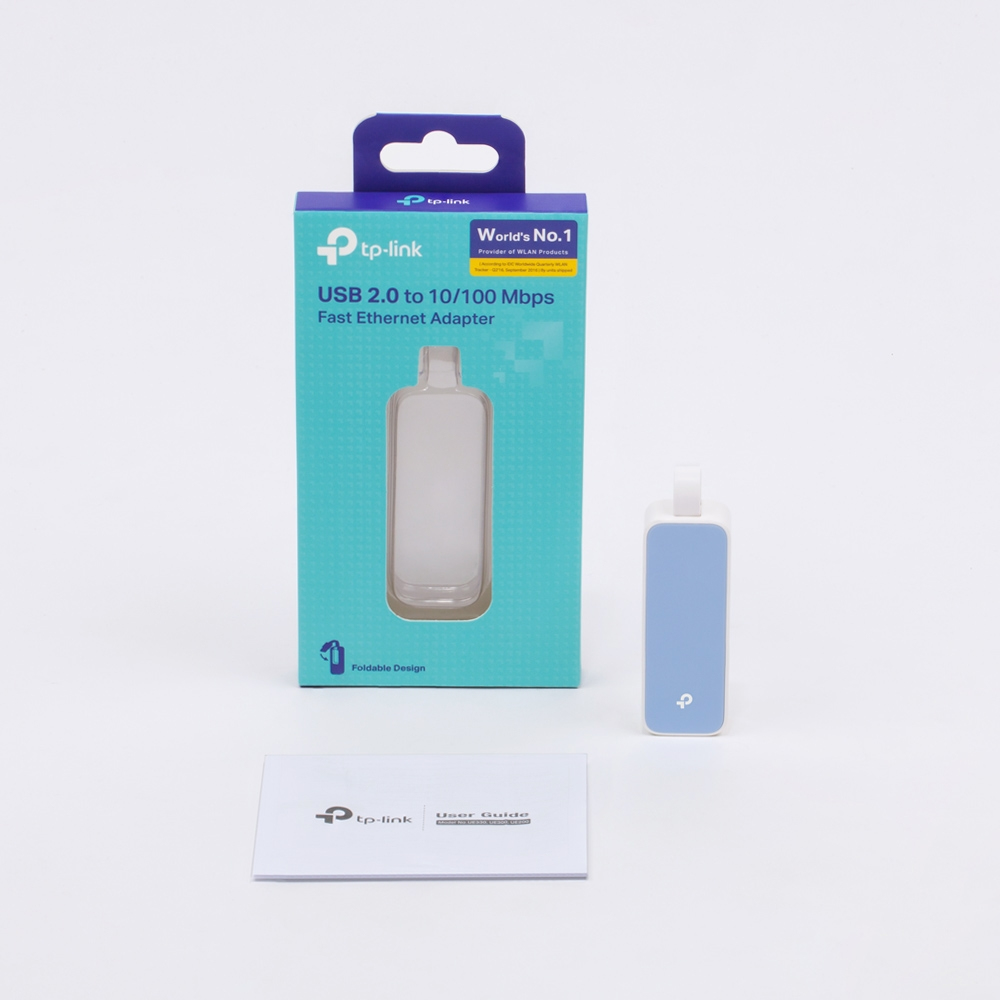

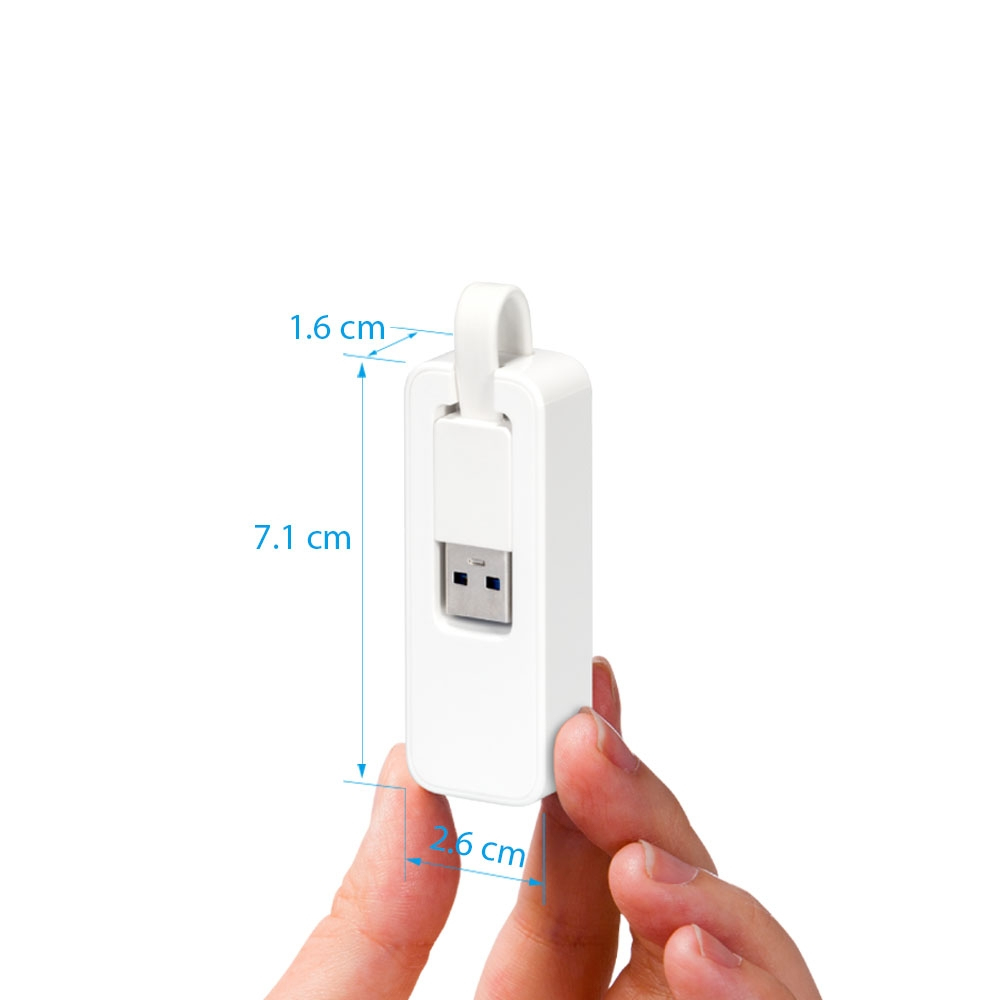

The package includes the TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter and a quick installation guide. The product is available in the color variants Blue and White. Dimensions are 71 mm (width) × 26 mm (depth) × 16.2 mm (height). Compliance with RoHS ensures the environmental compatibility of the product.

Design
Component forPC/Laptop
Product colourBlue, White
InternalNo
Plug and PlayYes
LED indicatorsYes
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate100 Mbit/s
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100BaseT(X)
Ethernet LANYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Packaging content
Quick installation guideYes
Packaging data
Package width183 mm
Package depth85 mm
Package height16 mm
Package weight50 g
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
USB connector form factorStraight
USB version2.0
Power
USB poweredYes
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64,
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Technical details
Compliance certificatesRoHS
Weight & dimensions
Width71 mm
Depth26 mm
Height16.2 mm


Product data sheet
Datasheet for TP-Link UE200, EAN: 6935364094614

Questions & answers

What is the delivery time of TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter?

The article TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link UE200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter always at the best possible price. We can give you a discount of 2% on TP-Link UE200 USB 2.0 to 100 Mbit/s Ethernet network adapter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
