TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN)

Your rating:
Average rating
product review for TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN)
( 4.7 / 5 ) 7 ratings
TP-Link TL-WPA8631P KIT
This image may differ from the desired article.
TP-Link TL-WPA8631P KITTP-Link TL-WPA8631P KITTP-Link TL-WPA8631P KITTP-Link TL-WPA8631P KIT
125,74 EUR
( 149,63 EUR incl. VAT )
≈ £105.24  |  ≈ $138.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: 2 pieces
1x TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN)
Datasheet:file_download Download
Lieske Part No.:1553017
Mfg Part No: TL-WPA8631P KIT
UPC/EAN: 6935364052539
Weight:0.852 kg
Type:WRLS

Product information for TP-Link TL-WPA8631P KIT:

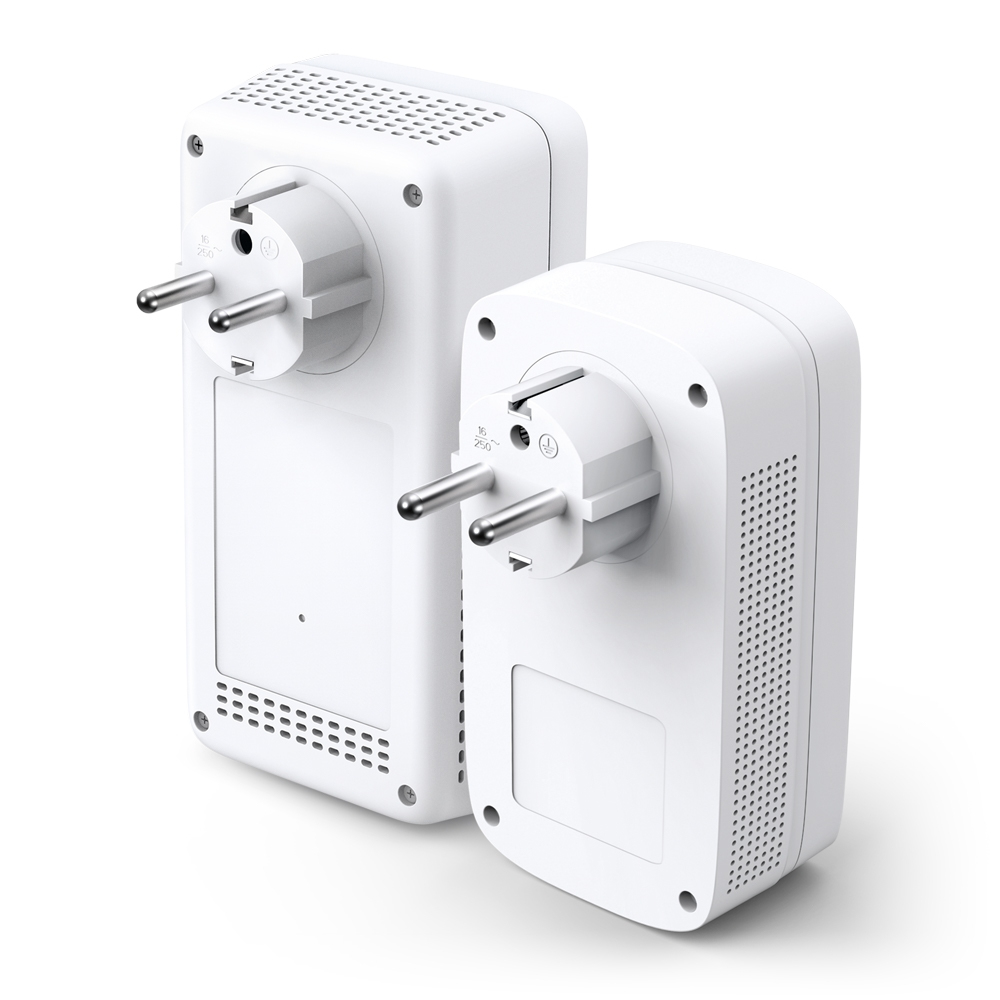

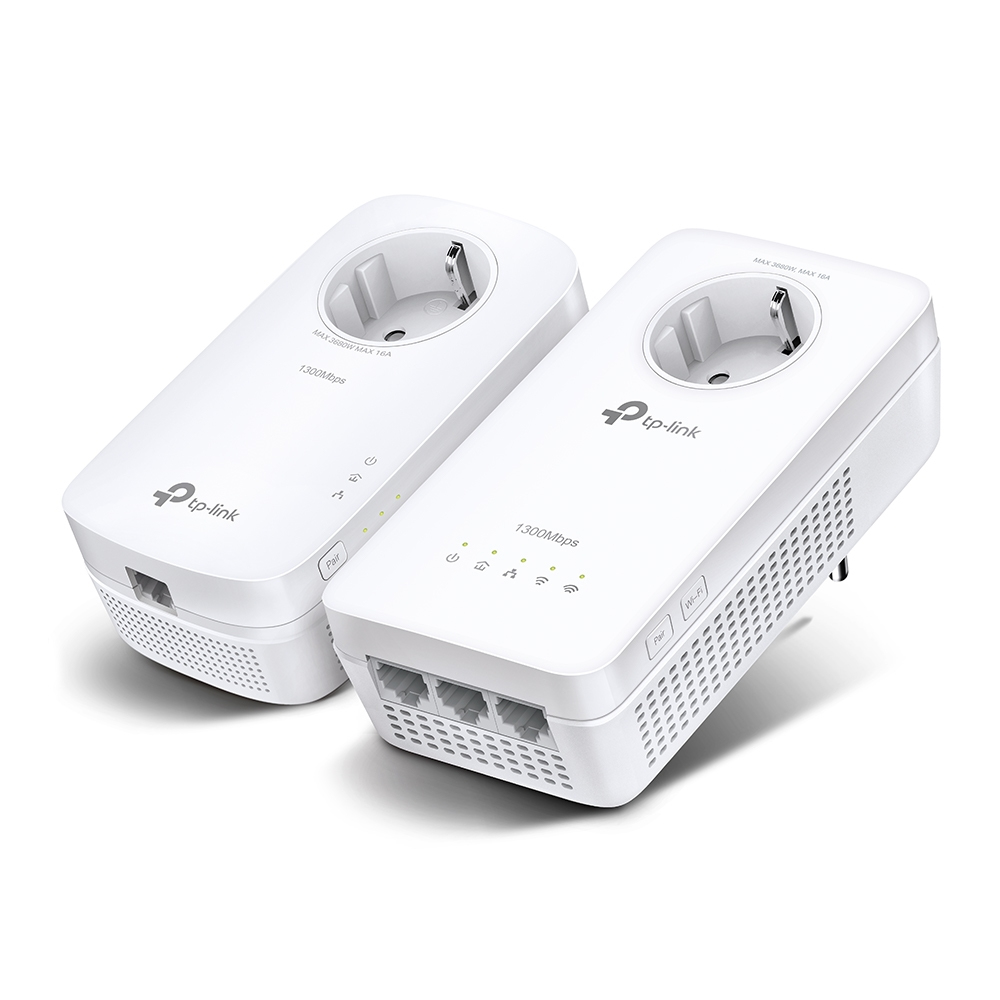

The TP-Link TL-WPA8631P KIT is a Powerline network kit consisting of two components: the WLAN adapter TL-WPA8631P and the Powerline adapter TL-PA8010P. It is designed to extend an existing network via the building’s existing electrical wiring, providing WLAN and wired internet connections at locations where direct access to the router is not possible. The solution is intended for use in private households and small offices, where a stable and fast network connection over long distances or through walls and floors is required.

Applications
This kit is suitable for improving WLAN coverage in rooms that are isolated from the router due to distance, building materials, or other obstacles. It enables the use of Gigabit WLAN and wired connections for bandwidth-intensive applications such as 4K video streaming, IPTV, online gaming, or Smart TV connections. The integrated socket ensures that the wall socket is not blocked when the adapter is installed.

Features and Equipment in Detail
The TL-WPA8631P KIT supports the HomePlug AV2 standard, enabling a maximum Powerline data transfer rate of up to 1300 Mbit/s. The WLAN function operates according to the Wi-Fi 5 (802.11ac) standard and provides simultaneous dual-band connectivity with 300 Mbit/s in the 2.4-GHz band and 867 Mbit/s in the 5-GHz band. The total data rate thus amounts to 1167 Mbit/s. The three Gigabit LAN ports (10/100/1000 Mbit/s) allow wired connections for devices such as TVs, gaming consoles, or network media players. The integrated socket is designed for type E/F and can be used like a standard socket.

Technology Explained Simply
Powerline technology uses the existing electrical wiring in the building as a data transmission medium. Data is transmitted over the electrical network, enabling wireless connectivity at any socket in the house. Modulation is performed using OFDM, which allows efficient data transmission even in the presence of interference. The 2×2 MIMO technology enables parallel data streams, improving stability and range. The integrated noise filter reduces electrical interference that could affect Powerline transmission. The WLAN function supports IEEE 802.11a/b/g/n/ac standards, ensuring compatibility with a wide range of devices.

Compatibility and Accessories
The kit is compatible with TP-Link’s OneMesh technology, enabling seamless WLAN transmission between various OneMesh devices. WLAN settings can be transferred with a single button press using the Wi-Fi Clone function from the router to the adapter. The Wi-Fi Auto-Sync function ensures that changes to SSID or password are automatically propagated to all adapters in the network. The devices are designed for use with Windows 10, 8, 8.1, Vista, XP, Linux, and Mac operating systems. Network management can be performed via the tpPLC app (for Android and iOS) or the tpPLC utility software on PCs.

Installation and Mounting
Installation is done via Plug & Play. The Powerline adapter TL-PA8010P is plugged into a socket near the router and connected to the router using a network cable. The WLAN adapter TL-WPA8631P is plugged into a socket at the desired location. The connection between the two devices is established automatically over the electrical network. WLAN settings can be configured using the Wi-Fi Clone button, which copies the SSID and password from the router. LED indicators show the operational status.

Advantages in Operation
Operation is simple and requires no additional configuration. The maximum range is up to 300 meters over the existing electrical network. Power supply is via the socket; power consumption in standard operation is 11 W (for the TL-WPA8631P). Operating temperature ranges from 0 to 40 °C, and relative humidity during operation is 10 to 90 %. The devices are designed for indoor use. The delivery includes two network cables (RJ-45), a quick installation guide, and the two adapters (TL-WPA8631P and TL-PA8010P). The devices are white and feature internal antennas. Security algorithms include WEP, WPA-PSK, and WPA2-PSK. The QoS function supports prioritization of data streams for critical applications.

Design
Antenna typeInternal
Product colourWhite
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Packaging content
Quantity per pack2 pc(s)
Cables includedLAN (RJ-45)
Quick installation guideYes
Packaging data
Package width230 mm
Package depth190 mm
Package height100 mm
Package weight870 g
Package typeBox
Performance
Maximum data transfer rate300 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports3
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Power plugType E / F
PowerLine standardHomePlug AV2
ModulationOFDM
Security algorithmsWEP, WPA-PSK, WPA2-PSK
Maximum operating distance300 m
Ethernet LANYes
Wi-FiYes
Built-in power socketYes
Quality of Service (QoS) supportYes
Plug and PlayYes
Power
Power consumption (typical)11 W
System requirements
Windows operating systems supportedWindows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supportedYes
Mac compatibilityYes


Product data sheet
Datasheet for TP-Link TL-WPA8631P KIT, EAN: 6935364052539

Questions & answers

What is the delivery time of TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN)?

The article TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN) is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-WPA8631P KIT to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN) always at the best possible price. We can give you a discount of 2% on TP-Link TL-WPA8631P KIT AV1300 Powerline 2er WLAN AC (3x LAN) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
