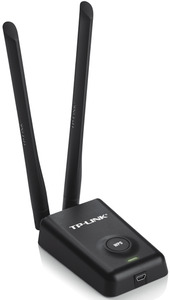

TP-LINK TL-WN8200ND IEEE 802.11n - Wi-Fi Adapter for Desktop Computer - USB - 300 Mbit/s content_copy

The TL-WN8200ND of TP-LINK is a 300Mbps high power wireless adapter that allows the user to equip its computers with an extremely powerful wireless capability to achieve performance improvements. The adapter works with high-power, which increased tenfold the range compared to a conventional adapter. One of the best features of the TL-WN8200ND is its greater penetration, which can effectively ensure that signal does not lose its strength and remains reliable when it passes through multiple walls or floors. Thanks to higher transmission power of the wireless USB adapter TL-WN8200ND delivers up to 10 times the performance of a normal adapter. In addition, the TL-WN8200ND is equipped with an incredibly strong penetration, so you do not fail physically to walls or ceilings / floors when you need access to the Internet. The TL-WN8200ND has a high receiving sensitivity, so you can continue to move away from the access point and still receive the same wireless signal. In this case means working with the TL-WN8200ND that you do not need to move as a divining your receiver, and you can access its high sensitivity reception problems on the network. The external antenna can be rotated and oriented in different directions to be different operating environments and achieve justice against internal antenna under normal indoor usage improved performance. For even more demanding applications, the antenna can be replaced with diverse indoor antenna or directional antenna (using standard RP-SMA connector) to get even more flexibility and an even greater wireless coverage. The TL-WN8200ND supports WiFi Protected Setup (WPS), allowing the user only needs to press the button on the outside of the unit and thus a highly secure connection is established immediately. This is not only faster than normal security setups but more convenient, because you do not need to remember a password. Besides the fashionable and exterior, the desktop-style design is beneficial for the signal reception in various application environments, which have a smooth and stable signal ensured. The TL-WN8200ND this is supplied with a 1.5 meter long USB extension cable, which simplifies the installation and placement, even with desktop devices. The TL-WN8200ND comes with a CD utility that helps you perform the software installation and adjust the settings of the wireless network, including security configurations and wireless connection, which is easy to do even for novice users.

Design
Product colour	Black
Antenna design	External
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	27 dBm
Operating modes	Infrastructure mode
Internal
Antenna
WPS push button
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Network
Maximum data transfer rate	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	150,300 Mbit/s
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Wi-Fi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	USB
Resource CD
Quick installation guide
Packaging data
Package width	200 mm
Package depth	150 mm
Package height	39 mm
Package weight	250 g
Ports & interfaces
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Sustainability
Sustainability compliance
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64,
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks
Linux operating systems supported
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	90.8 mm
Depth	60.8 mm
Height	24.5 mm

---
