TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket

Your rating:
Average rating
product review for TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket
( 4.6 / 5 ) 10 ratings

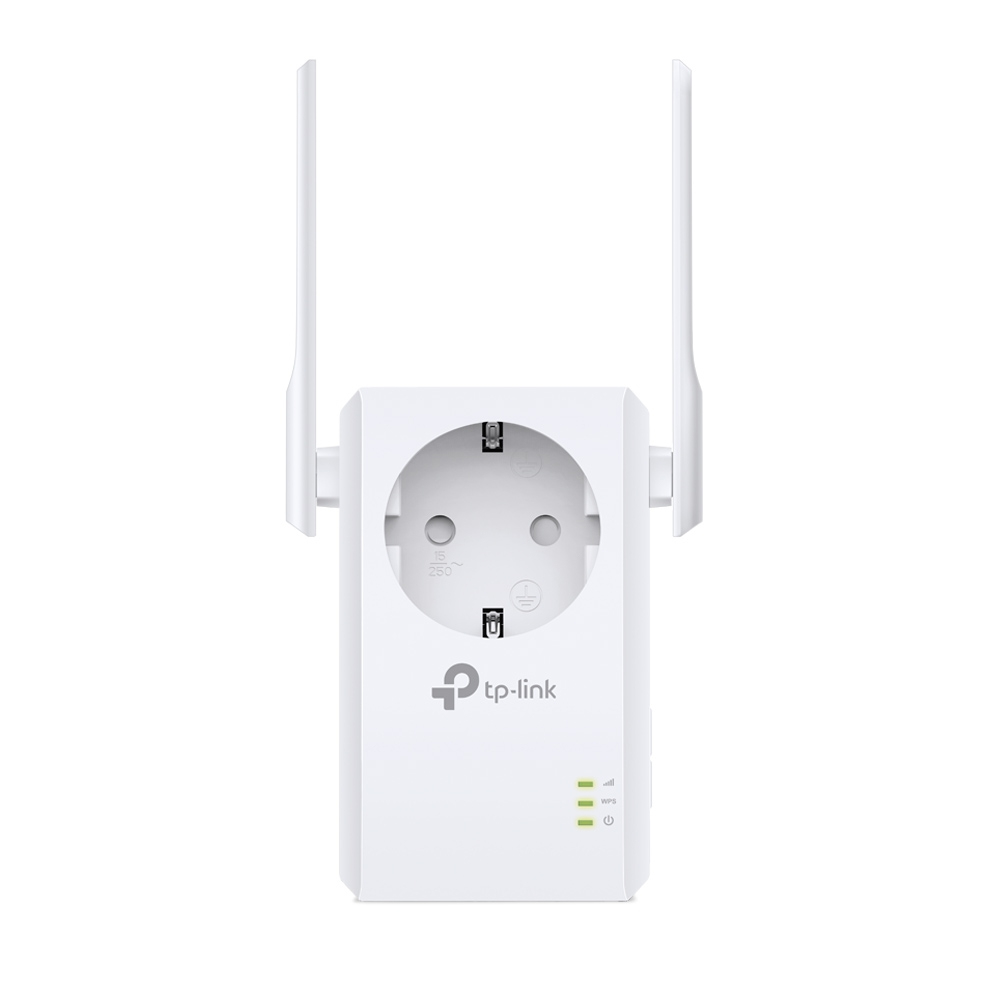

TP-Link TL-WA860RE
This image may differ from the desired article.
TP-Link TL-WA860RETP-Link TL-WA860RETP-Link TL-WA860RETP-Link TL-WA860RETP-Link TL-WA860RETP-Link TL-WA860RETP-Link TL-WA860RE
19,39 EUR 19,41 EUR
( 23,07 EUR incl. VAT )
≈ £16.15  |  ≈ $21.27
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >50 pieces
1x TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket
Datasheet:file_download Download
Lieske Part No.:689228
Mfg Part No: TL-WA860RE
UPC/EAN: 6935364071158
Weight:0.26 kg
Type:WRLS

Product information for TP-Link TL-WA860RE:

The WLAN repeater TL-WA860RE from TP-Link is a compact device for extending the range of existing WLAN networks. It serves as a relay station to receive the signal from a base router or access point and transmit it to areas that were previously only partially or not at all reachable. The device operates in repeater mode as a standard function, enabling comprehensive WLAN coverage in living and working spaces that are signal-attenuated due to walls or large distances. The integrated socket ensures that the connection to a power outlet is not lost, allowing for flexible placement.

Applications

The repeater is suitable for use in private and small commercial environments where a stable WLAN connection over larger areas or through multiple rooms is required. It is particularly useful in apartments, houses, or offices where WLAN coverage is limited by physical obstacles such as concrete walls or large distances. The integrated socket allows for easy installation at any power outlet without losing a socket.

Functions and equipment in detail

The device features two external antennas that improve signal coverage. The signal strength indicator on the front displays the current reception strength, facilitating optimal placement of the repeater. The repeater can be easily and securely connected to the router via the WPS button (Wi-Fi Protected Setup) without manual configuration. Setup is therefore plug and play, requiring no special network knowledge. Via the integrated LAN port, the repeater can also function as a WLAN adapter to connect wired devices such as Blu-ray players, gaming consoles, or TVs to the existing WLAN.

Technology explained simply

The TL-WA860RE supports WLAN standards IEEE 802.11b, 802.11g, and 802.11n, with the top standard Wi-Fi 4 (802.11n) achieving data rates up to 300 Mbit/s. This speed is sufficient for applications such as HD video streaming, online gaming, and VoIP. Network functions are based on IEEE 802.3 and IEEE 802.3u standards, ensuring compatibility with fast Ethernet (10/100 Mbit/s). Network security is ensured by encryption algorithms such as 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, and WPA2-PSK. Power supply is via mains, with standard operation consuming 3 W.

Compatibility and accessories

The repeater is compatible with all devices supporting WLAN standards 802.11b/g/n. Operating system compatibility includes Windows 2000, Windows 98SE, Windows NT, Windows Vista (all variants), Windows 7 (all variants), as well as Mac and Linux operating systems. Setup is performed via a web interface accessible at the domain name http://tplinkextender.net. The device is designed for indoor use, with an operating temperature range of 0 to 40 °C and relative humidity of 10 to 90 % during operation.

Installation and mounting

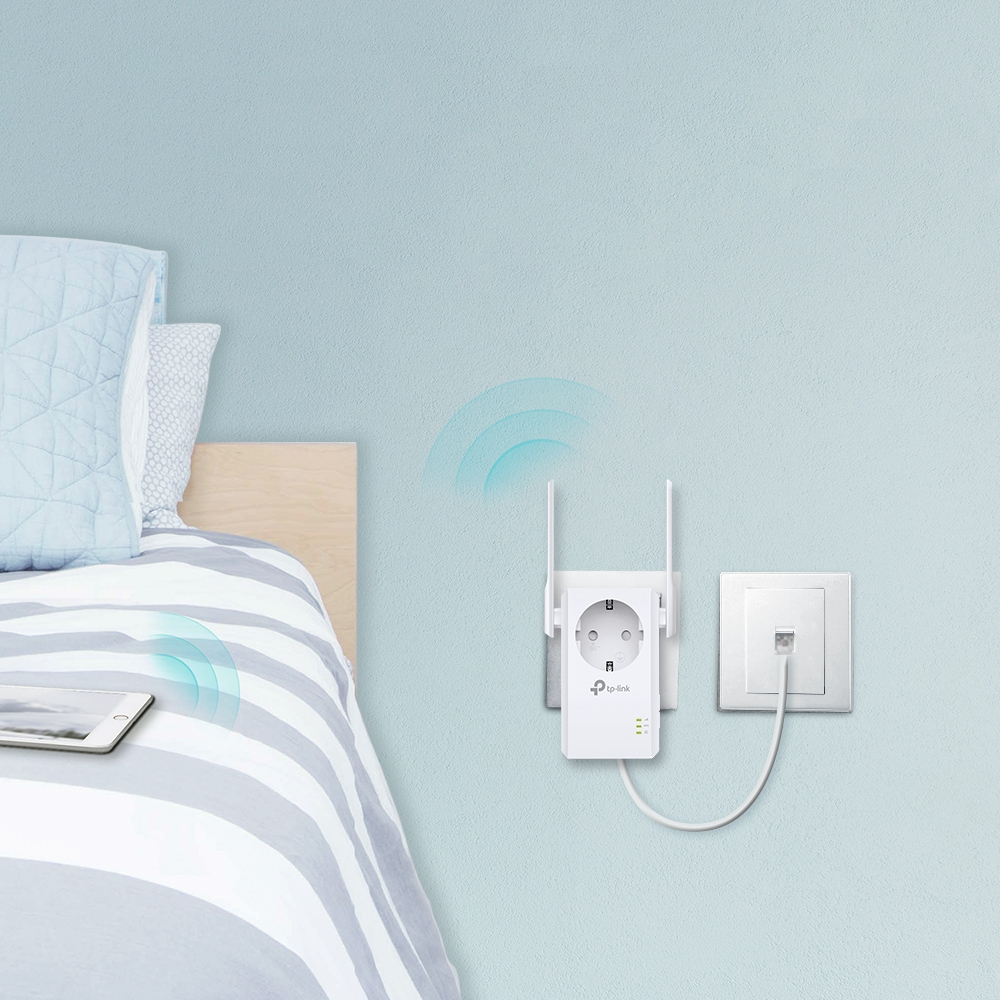

Installation is done by simply plugging into a power outlet. The integrated socket allows another device to be connected to the same outlet. The WPS function enables quick and secure connection to the existing WLAN without requiring manual entry of network data. The LED indicators support placement by visualizing signal strength.

Advantages in operation

The repeater offers a simple and cost-effective way to extend WLAN coverage without installing additional routers or complex network architectures. The combination of repeater function and LAN port enables flexible use, both as a signal booster and as a WLAN adapter for wired devices. The compact design and integrated socket ensure discreet and practical placement at any power outlet. Operating conditions are designed for indoor use, with a storage temperature range of -40 to 70 °C allowing safe storage even under extreme conditions.

Scope of delivery

The device is delivered with an RJ45 Ethernet cable, a CD, a quick installation guide, and the user manual. The CD contains the necessary software and configuration documents. The quick installation guide supports setup, while the user manual describes detailed configuration options and functions.

Certificates
Compliance certificatesRoHS
Design
Product colourWhite
Quantity per pack1 pc(s)
LED indicatorsYes
Logistics data
Harmonized System (HS) code85171800
Network
Ethernet LAN interface typeFast Ethernet
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported11,54,300 Mbit/s
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, WPA2-PSK
Wi-FiYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Packaging content
ManualYes
Packaging data
Package typeBox
Package width156.5 mm
Package depth101.5 mm
Package height89 mm
Package weight240 g
Performance
Ethernet LAN data rates10,100 Mbit/s
Windows operating systems supportedWindows 2000, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate
Plug and PlayYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Power
Power consumption (typical)3 W
Sustainability
Sustainability complianceYes
Weight & dimensions
Width110 mm
Depth65.8 mm
Height75.2 mm


Product data sheet
Datasheet for TP-Link TL-WA860RE, EAN: 6935364071158

Questions & answers

What is the delivery time of TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket?

The article TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-WA860RE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket always at the best possible price. We can give you a discount of 2% on TP-Link TL-WA860RE 300 MBit WLAN N Repeater with front socket if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
