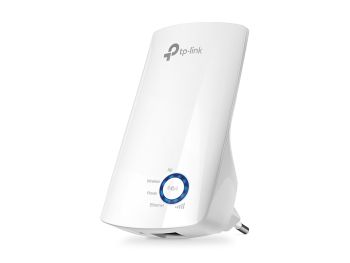

TP-Link TL-WA850RE(DE) universal 300 MBit WLAN N repeater content_copy

Product FunctionalitiesThe TP-LINK WiFi repeater TL-WA850RE is designed to create an extended WiFi with wider coverage and a further range. It offers repeater mode as the standard WiFi mode, and acts as a relay station" to pick up WiFi signals from a base router or from a network access point and then flawlessly extend the signal into previously inaccessible or difficult-to-wire areas. With its LAN port, it is able to serve as a WLAN adapter for network devices. WLAN expansion with 300 Mbit/sThe TL-WA850RE is designed to improve the coverage and strength of existing WLANs and eliminate "dead areas. With data rates of up to 300 Mbit/s according to IEEE802.11n, it is the ideal device for smooth HD video streaming, online gaming and VoIP.Easy setup and flexible placementThe small housing for practical attachment to the socket allows flexible placement It's child's play: By pressing the WPS button on the AP/router, followed by the WPS button on the TL-WA850RE, you can easily and easily establish a connection. The TL-WA850RE remembers previously configured WLANs, so you can easily You can switch between different wireless networks that have already been programmed in without having to change anything.Entertainment adapterThe LAN port of the TL-WA850RE allows the repeater to function as a WLAN adapter at the same time. This allows you to integrate wired network devices such as Blu-ray® players, game consoles, televisions, etc. into a WLAN. At the same time, your WLAN is increased as usual. Signal strength display 5 LEDs show the signal strength currently received by the TL-WA850RE, which means you can easily find the best operating location Universal compatibility The TL-WA850RE is compatible with all 802.11b/g/n devices and can therefore be used with all common ones WLAN routers work together. Microsoft Windows 8 is also supported.

Highlights

• WLAN expansion at the touch of a button to eliminate dead spots
• Up to 300 Mbit/s WLAN speed
• A LAN port for integrating wired network devices such as game consoles, smart TVs into a WLAN
• Miniature design for plugging into the socket
• Practical signal strength display helps with optimal placement
• Compatible with all 802.11b/g/n WLAN routers

Product type

• Repeater

Specifications

• Area of application: Indoor

Data transmission

• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• Security standard: WEP, WPA, WPA2, WPS
• WiFi frequency band: 2.4 GHz
• WPS

Basic properties

• Color: White
• Height: 75.2 mm
• Length/Depth: 65.8 mm
• Width: 110 mm
• icecat Import: 2022/12/07

Scope of delivery

• TP-Link TL-WA850RE
• Quick installation guide

Design
Product colour	White
LED indicators
On/off switch
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	300 Mbit/s
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Wi-Fi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging data
Package width	156.5 mm
Package depth	101.5 mm
Package height	89 mm
Package weight	289 g
Performance
Type	Network transmitter & receiver
Data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	3 W
Weight & dimensions
Width	110 mm
Depth	65.8 mm
Height	75.2 mm

---
