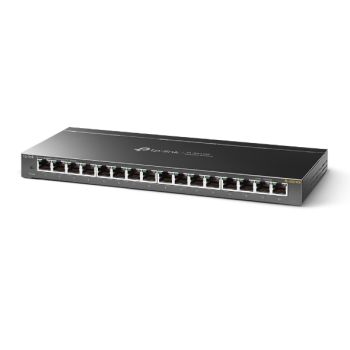

TP-Link TL-SG116E(UN)
Switch 16x GE TL-SG116E V2.4
|
63,97 EUR |
|
|
( 76,12 EUR incl. VAT ) ≈ £53.86 | ≈ $71.84 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 207538 |
| Mfg Part No: | TL-SG116E(UN) |
| UPC/EAN: | 1210002617000 |
| Weight: | 1.239 kg |
Product information for TP-Link TL-SG116E(UN):
Quality of Service (QoS) Support
Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16
Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T
MAC-Adressentabelle: 8000 Eintragungen Routing-/Switching-Kapazität: 32 Gbit/s
Desktop
Gleichstrom Netzteil enthalten
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Cable length detection | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 31.68 BTU/h |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 412 mm |
| Package height | 70 mm |
| Package weight | 1.36 kg |
| AC adapter included | |
| Rubber feet | |
| Performance | |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power | |
| Power source | DC |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 9.19 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
Questions & answers
What is the delivery time of TP-Link TL-SG116E(UN) Switch 16x GE TL-SG116E V2.4?
The article TP-Link TL-SG116E(UN) Switch 16x GE TL-SG116E V2.4 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SG116E(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link TL-SG116E(UN) Switch 16x GE TL-SG116E V2.4 always at the best possible price. We can give you a discount of 2% on TP-Link TL-SG116E(UN) Switch 16x GE TL-SG116E V2.4 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
