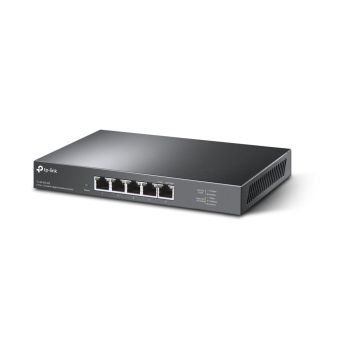

TP-Link TL-SG105-M2(UN) Switch 5x 2.5G Multi-Gigabit TL-SG105-M2 V3.0
|
-29% 51,32 EUR 72,19 EUR |
|
|
( 61,07 EUR incl. VAT ) ≈ £43.21 | ≈ $57.63 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2071182 |
| Mfg Part No: | TL-SG105-M2(UN) |
| UPC/EAN: | 1210002612654 |
| Weight: | 0.942 kg |
Product information for TP-Link TL-SG105-M2(UN):
| Certificates | |
| Certification | CE, FCC ,RoHS |
| Data transmission | |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 41.32 BTU/h |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 920 g |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Power | |
| Power source | DC |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 12.11 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
Questions & answers
What is the delivery time of TP-Link TL-SG105-M2(UN) Switch 5x 2.5G Multi-Gigabit TL-SG105-M2 V3.0?
The article TP-Link TL-SG105-M2(UN) Switch 5x 2.5G Multi-Gigabit TL-SG105-M2 V3.0 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SG105-M2(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link TL-SG105-M2(UN) Switch 5x 2.5G Multi-Gigabit TL-SG105-M2 V3.0 always at the best possible price. We can give you a discount of 2% on TP-Link TL-SG105-M2(UN) Switch 5x 2.5G Multi-Gigabit TL-SG105-M2 V3.0 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
