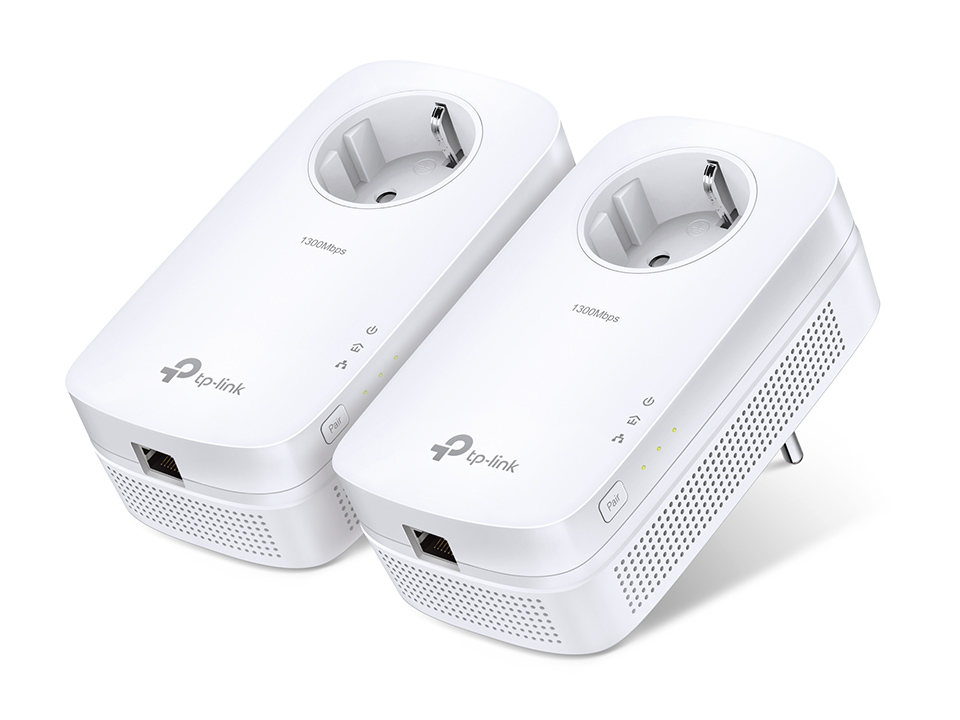

TP-LINK TL-PA8010P KIT Powerline Network Adapter - 2 - 1 x Network (RJ-45) - 1200 Mbit/s Powerline content_copy

Up to 1200Mbps!Perfect for Bandwidth Demanding Activities Advanced HomePlug AV2 technology means the TL-PA8010P supports 2x2 MIMO with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

Line-Neutral/Line-Ground 2x2 MIMO with Beamforming Larger Range MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets. Higher Transmission Capacity < More Stable Connections MIMO Technology means the TL-PA8010P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

Gigabit Port for Ultra-fast Datasheet Transfer With one Gigabit Ethernet port, TL-PA8010P allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you're done!

Extra Power Socket for Additional Devices The integrated power socket, with power output of up to 16A, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

Power Save by Up to 85% TL-PA8010P is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular Working" mode to "Power-Saving mode reducing energy consumption by up to 85%.

Certificates
Compliance certificates	RoHS
Design
LED indicators	LAN, PLC, Power
Product colour	White
Certification	CE
Logistics data
Harmonized System (HS) code	85171800
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	2 pc(s)
Cables included	LAN (RJ-45)
Quick installation guide
Packaging data
Package width	230 mm
Package depth	190 mm
Package height	100 mm
Package weight	700 g
Performance
Maximum data transfer rate	1300 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power plug	Type E / F
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
Ethernet LAN
Built-in power socket
Plug and Play
Power
Power consumption (typical)	6 W
Power consumption (standby)	0.5 W
AC input voltage	220 V
AC input frequency	50 Hz
System requirements
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows XP
Mac operating systems supported	macOS
Linux operating systems supported
Mac compatibility
Weight & dimensions
Width	42 mm
Depth	72 mm
Height	131 mm

---
