TP-Link Powerline TL-PA7027P Kit AV1000 2-Port content_copy

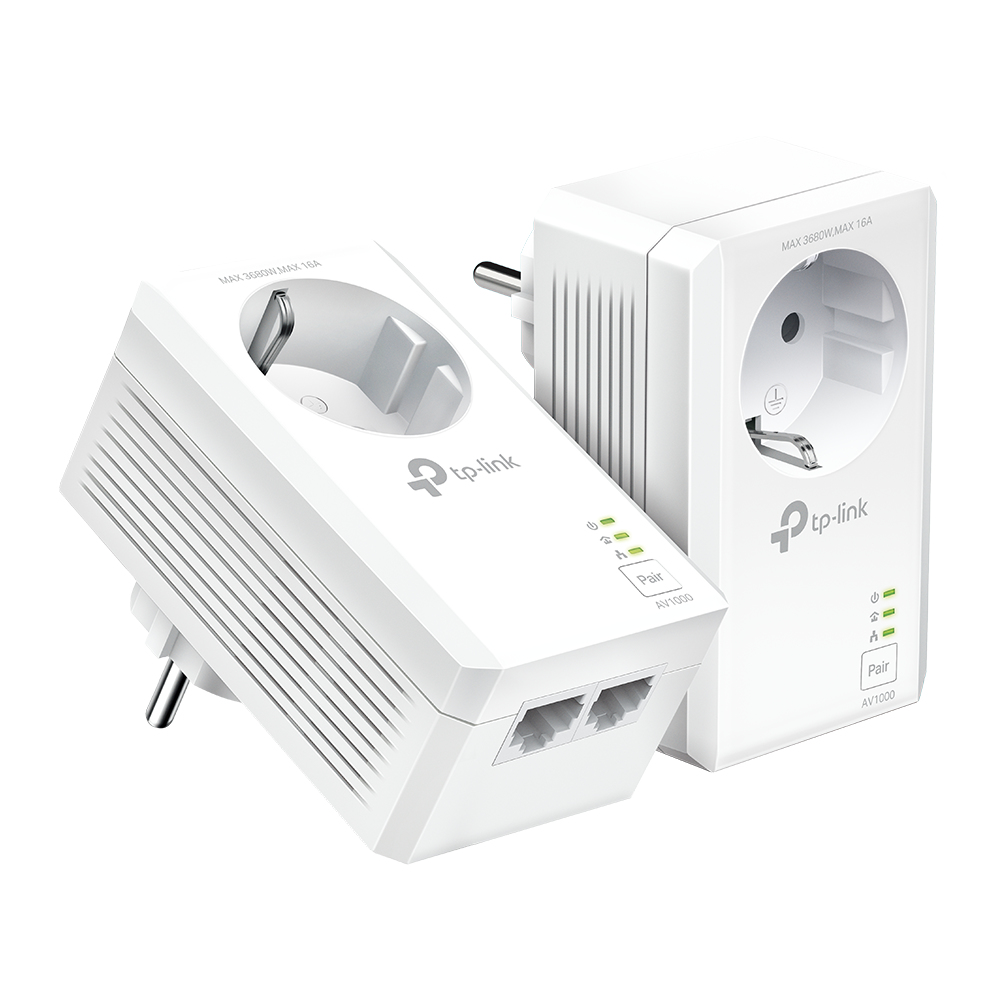

Expand your Gigabit network with the TP-Link TL-PA7027P kit over the existing power line. Installation is incredibly easy thanks to plug and play. With the integrated socket, you won't lose any power connection.
The 2 Gigabit LAN ports deliver up to 1 Gbit/s transmission speed according to the Homeplug AV2 standard. In addition, the patented energy saving mode, which regulates itself automatically and switches from work mode to energy saving mode, reduces the power consumption of the TL-PA7027P by up to 85%.

Highlights

• Up to 1Gbit/s according to the Homeplug AV2 standard over existing power lines
• 2 Gigabit LAN ports for connecting computers, smart TVs, game consoles etc.
• Easy installation thanks to Plug < Play, no configuration required
• Integrated socket ensures ensures that no slot is lost
• Patented energy saving mode to reduce power consumption by up to 85%
• Compatible with all HomePlug AV < HomePlug AV2 standard powerline adapters

Product type

• Powerline
• ear category (ElektroG): relevant, category 6: small devices of IT and telecommunications technology, small devices of IT and telecommunications technology B2C

Specifications

• integrated socket

Data transmission

• Powerline standard up to: 1000 MBit/s

Basic properties

• Color: White
• Height: 95 mm
• Length/ Depth: 42 mm
• Width: 58 mm

Scope of delivery

• TP-Link TL-PA7027P KIT
• 2× TL-PA7027P
• 2× Ethernet Cables
• Quick Installation Guide

Certificates
Compliance certificates	CE, RoHS
Design
Antenna type	Internal
LED indicators	LAN, Power
Product colour	White
Certification	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Quantity per pack	2 pc(s)
Cables included	LAN (RJ-45)
Quick installation guide
Manual
Packaging data
Package width	190 mm
Package depth	136 mm
Package height	100 mm
Package weight	580 g
Package type	Box
Performance
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 1901, IEEE 802.3, IEEE 802.3u
Power plug	Type E / F
PowerLine standard	HomePlug AV2
Modulation	COFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
Ethernet LAN
Wi-Fi
Built-in power socket
Encryption button
Plug and Play
Power
Power consumption (typical)	4 W
Power consumption (standby)	0.84 W
System requirements
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported
Mac compatibility
Mac operating systems supported
Weight & dimensions
Width	58 mm
Depth	42 mm
Height	95 mm

---
