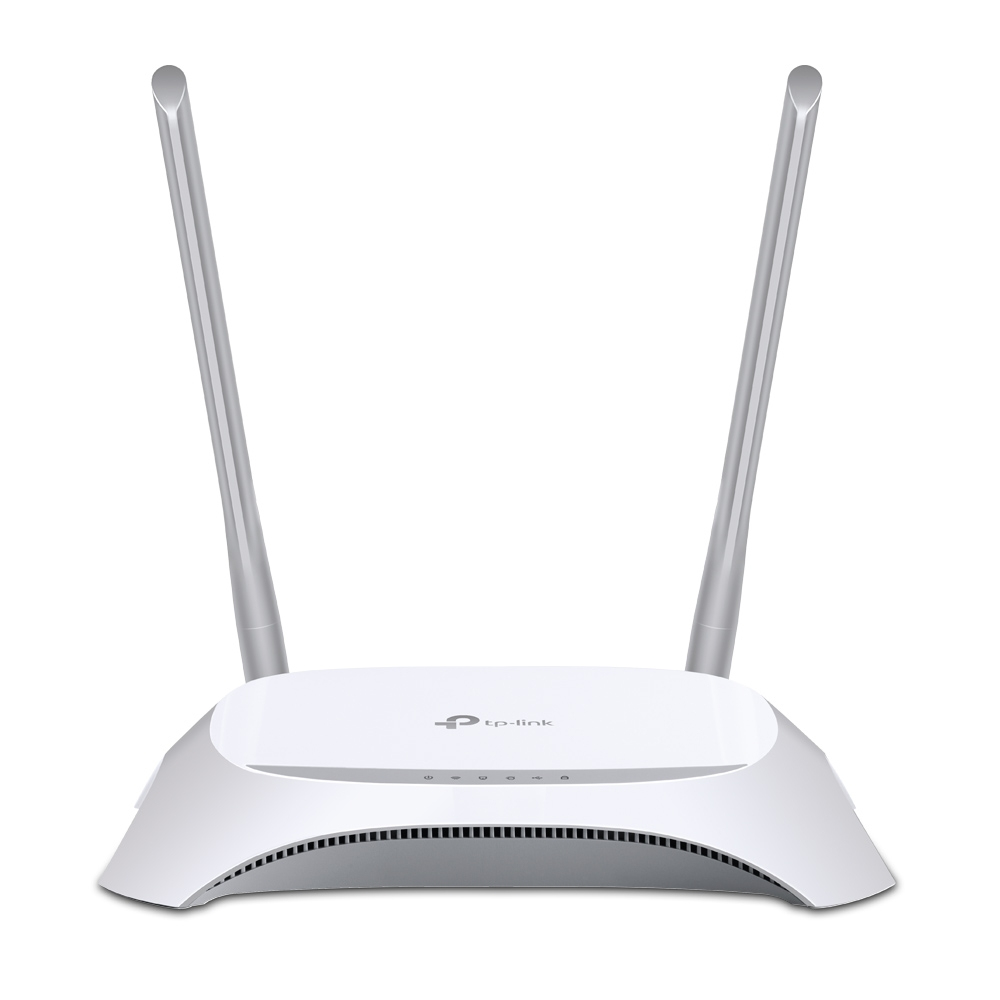

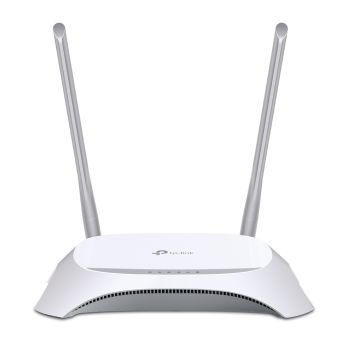

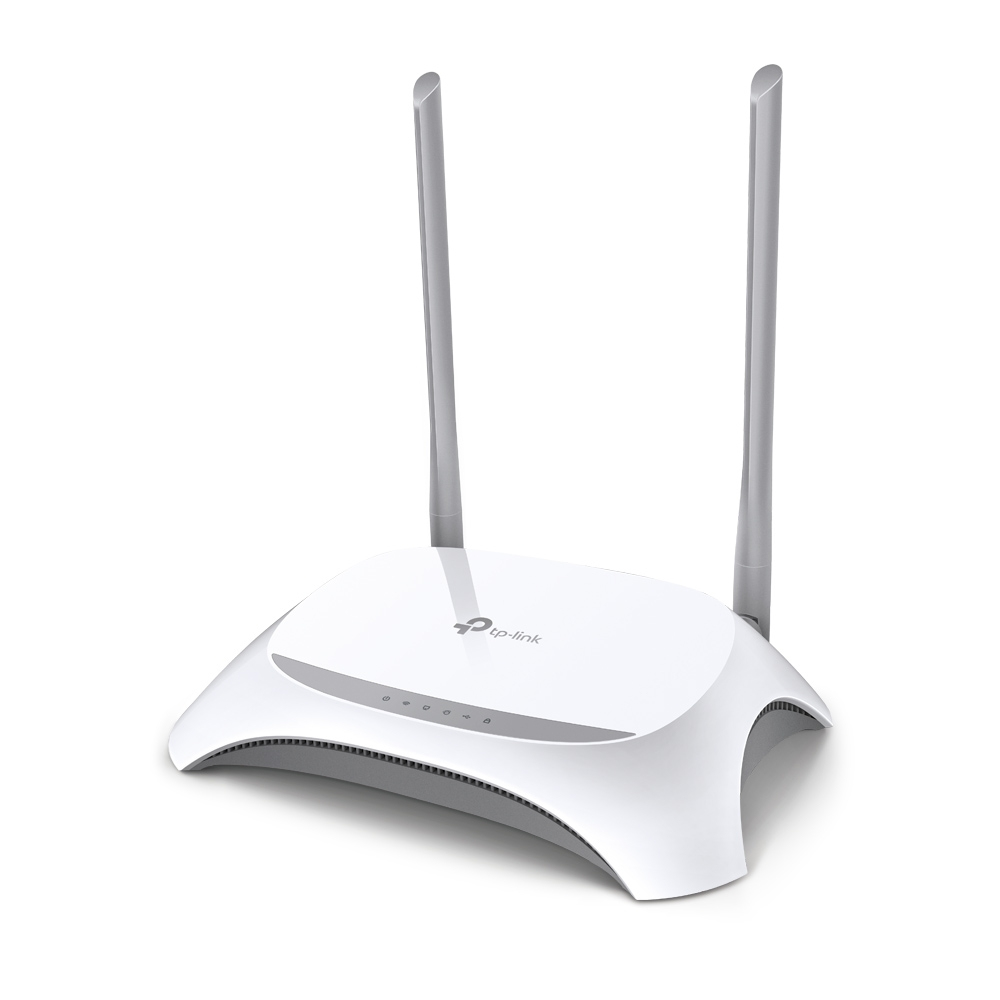

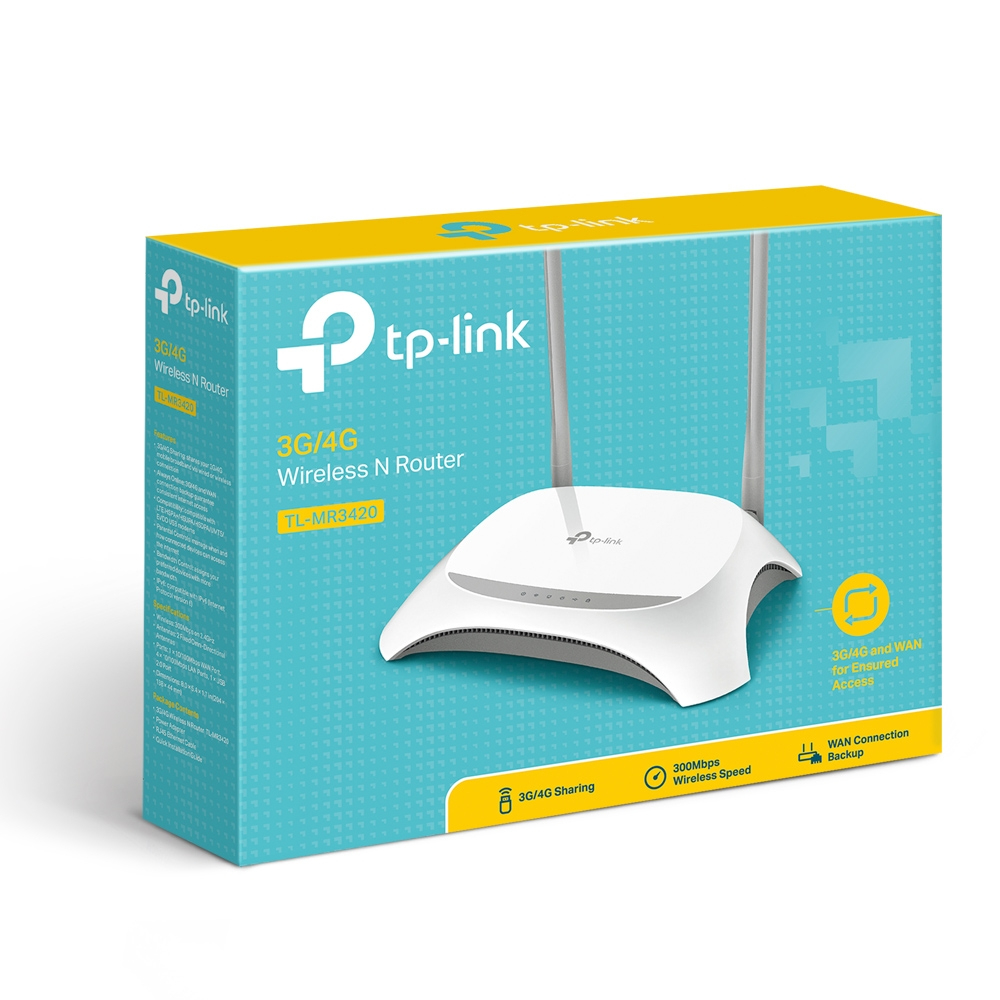

TP-Link TL-MR3420 WLAN router
|
23,15 EUR |
|
|
( 27,55 EUR incl. VAT ) ≈ £19.49 | ≈ $26.00 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| End-Of-Life: | 13. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2065602 |
| Mfg Part No: | TL-MR3420 |
| UPC/EAN: | 6935364051495 |
| Weight: | 0.123 kg |
Product information for TP-Link TL-MR3420:
TP-LINK TL-MR3420 WLAN ROUTER
| Antenna | |
| Antenna design | External |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Transmit power | 20 dBmW |
| Certificates | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Design | |
| Product colour | Black, White |
| Product type | Tabletop router |
| On/off switch | |
| Features | |
| Firmware upgradeable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Web-based management | |
| WPS push button | |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u |
| Receiver sensitivity | 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER |
| Ethernet LAN | |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | |
| Antenna included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 315 mm |
| Package depth | 240 mm |
| Package height | 70 mm |
| Package weight | 620 g |
| Ports & interfaces | |

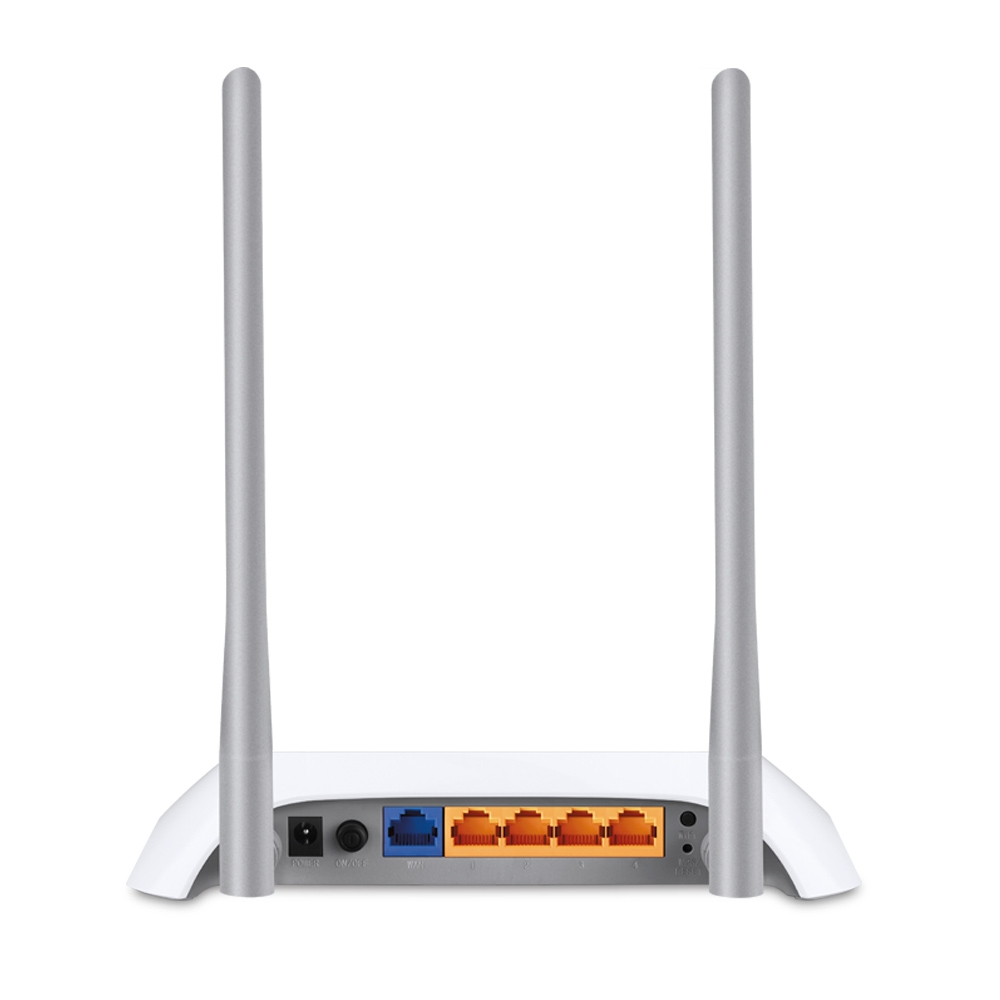

| Ethernet LAN (RJ-45) ports | 4 |

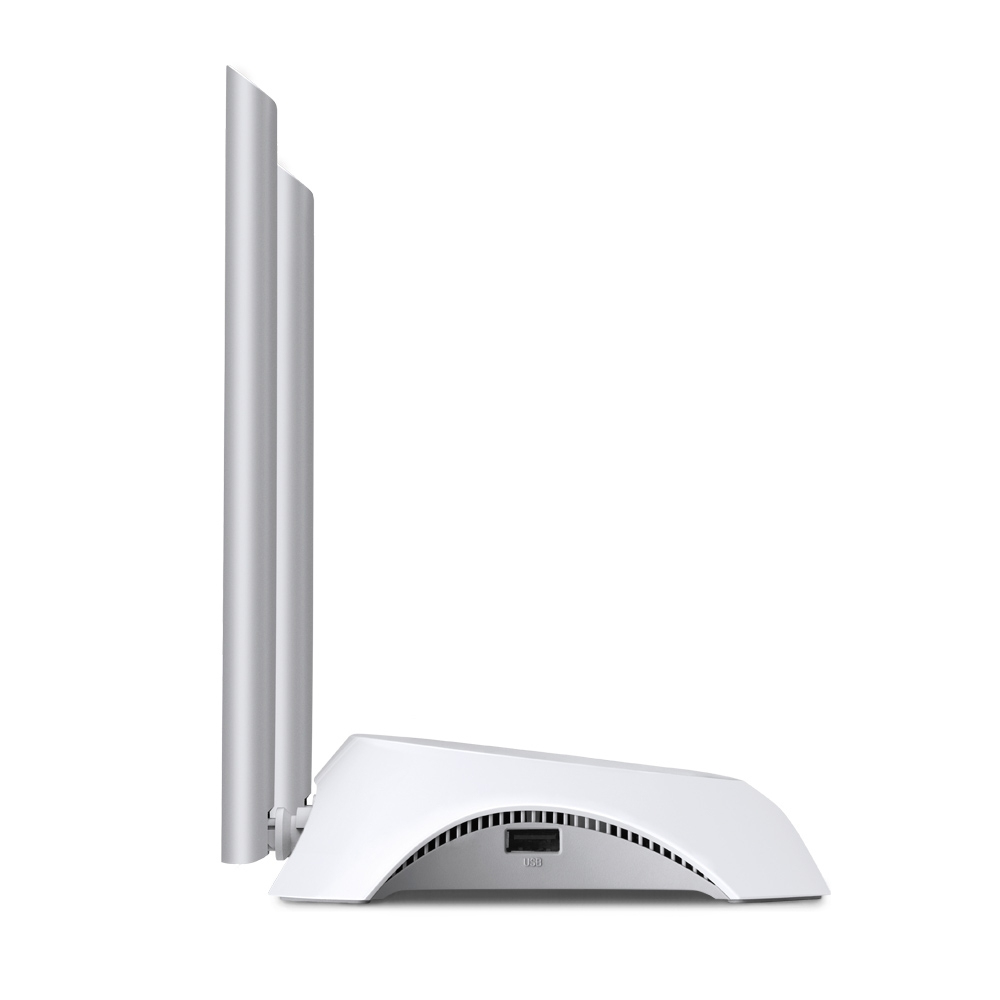

| USB 2.0 ports quantity | 1 |
| USB port | |
| DC-in jack | |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| Security | |
| Firewall security | NAT, SPI |
| Firewall | |
| DDoS protection | |
| Filtering | |
| MAC address filtering | |
| IP address filtering | |
| URL filtering | |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, |
| Linux operating systems supported | |
| Mac operating systems supported | |
| WAN connection | |
| WAN connection type | RJ-45 |
| Ethernet WAN | |
| DSL WAN | |
| SIM card slot | |

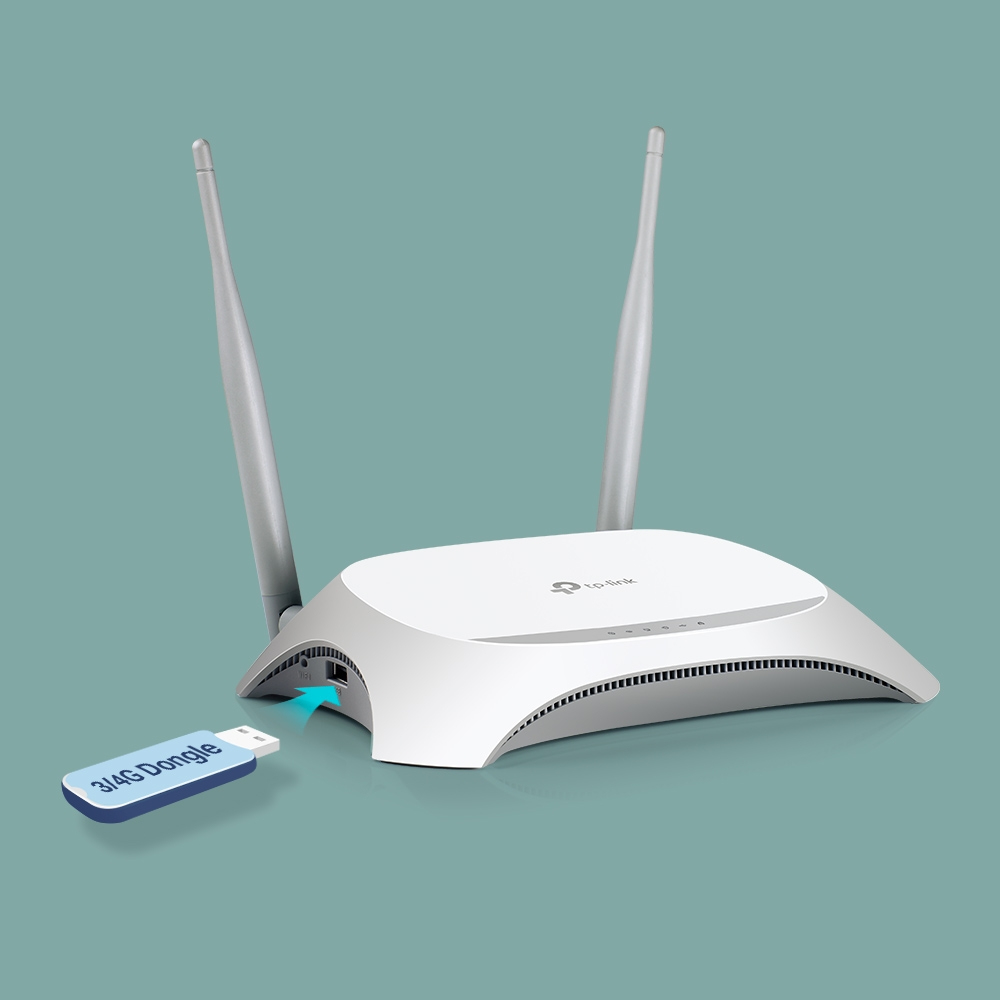

| 3G/4G USB modem compatibility | |
| Weight & dimensions | |
| Width | 204 mm |
| Depth | 138 mm |
| Height | 44 mm |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
