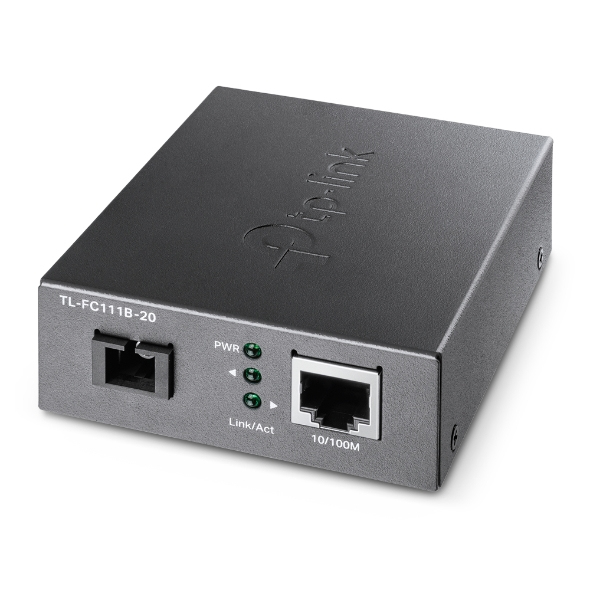

TP-Link TL-FC111B-20 RJ45 to 100 Mbps single-mode converter
|
-19% 19,24 EUR 23,65 EUR |
|
|
( 22,90 EUR incl. VAT ) ≈ £16.20 | ≈ $21.61 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1606100 |
| Mfg Part No: | TL-FC111B-20 |
| UPC/EAN: | 6935364010997 |
| Weight: | 0.36 kg |
| Type: | ACCS |
Product information for TP-Link TL-FC111B-20:
Highlights
- 10/100 Mbit/s WDM media converter
- Range up to 20 km
- Auto-detection of full and half duplex
- Complies with 802.3u 10 / 100Base-TX, 100Base-FX standards
- Sends and receives data on one single fiber
- network component
- ear category (ElektroG): relevant, category 5: small devices < 50 cm (all sides), small devices B2C
- color: black
- height: 27 mm
- length/depth: 73 mm
- width : 94.5 mm
- TP-Link TL-FC111B-20 10/100 Mbit/s WDM media converter
product type
basic properties
Box contents
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, CE |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Data transfer rate | 100 Mbit/s |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 360 g |
| Performance | |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Output voltage | 5 V |
| Output current | 0.6 A |
| External power adapter | |
| Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Questions & answers
What is the delivery time of TP-Link TL-FC111B-20 RJ45 to 100 Mbps single-mode converter?
The article TP-Link TL-FC111B-20 RJ45 to 100 Mbps single-mode converter is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-FC111B-20 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link TL-FC111B-20 RJ45 to 100 Mbps single-mode converter always at the best possible price. We can give you a discount of 2% on TP-Link TL-FC111B-20 RJ45 to 100 Mbps single-mode converter if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
