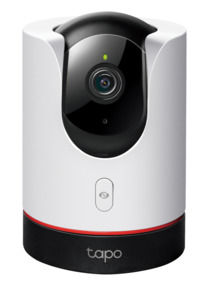

TP-Link Tapo C225 Pan/Tilt AI Home Security IP Camera content_copy

Experience the TP-Link Tapo C225 Pan/Tilt AI Home Security IP Camera - your reliable partner for security and convenience. With its swivel and tilt mechanism, you always have a perfect overview. Using advanced AI technology, the camera detects movements, people, pets, vehicles and also unusual noises. You will receive instant notifications on your smartphone. With its Full HD video quality and infrared night vision, you won't miss any detail, whether day or night. Installation is easy and the camera can be easily integrated into your smart home. Protect your family and property with the TP-Link Tapo C225!

Highlights

• Physical Privacy Mode
• Intelligent AI detection and notification
• Pan and tilt - Provides a 360° horizontal field of view
• Intelligent motion tracking
• Highly sensitive starlight sensor captures high quality images even in low light conditions
• Triggers light and sound effects to scare away unwanted visitors
• Two-way audio allows communication via a built-in microphone and speaker
• Easy setup - Follow the in-app instructions to complete setup in minutes

Product type

• IP camera
• ear- Category (ElektroG): relevant, Category 5: Small devices < 50 cm (all pages), small devices B2C

Specifications

• Swivel/tilt (device contains joints)
• Area of application: Indoor
• Mounting: Table

Camera

• Camera highlights: Integrated microphone and loudspeaker
• Frame rate: 15 fps
• Viewing angle: 360 °
• Video resolution width: 2560 px
• Video resolution height: 1440 px
• Video resolution: 2K
• Night vision
• Aperture max: f/1.6
• Sensor size: 1/3\dlash- Video encryption

Storage

• microSD cards Reader: 1
• Memory expandable by: 512 GB

Audio

• Microphone: Integrated microphone
• Audio transmission

Sensors

• Acoustic sensor
• Motion detector

Functions

• Type of operation: App
• Video compression: H.264

Power supply

• Network

Data transmission

• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• Streaming

Basic features

• Color: White
• Height: 112 mm
• Length/Depth: 80 mm
• Width: 80 mm

Scope of delivery

• TP-Link Tapo C225 camera
• power supply
• quick start guide
• mounting screws
• mounting plate

Audio
Audio system	2-way
Built-in speaker(s)
Built-in microphone
Audio detection
Camera
Field of view (FOV) angle	360°
Angle of rotation	360°
Tilt angle range	0 - 149°
Pan range	0 - 360°
Pan speed	120 °/sec
Camera shutter type	Electronic
Camera pan control
Camera tilt control
Design
Form factor	Tower
Mounting type	Desk
Product colour	Black, White
Image sensor
Optical sensor size	25.4 / 3 mm (1 / 3")
Effective sensor resolution	1440 pixels
Sensor type	Starlight
Number of effective pixels (H x V)	2560 x 1440 pixels
Lens system
Number of lenses	1
Maximum aperture number	1.6
Fixed focal length	4 mm
Management features
Reset button
Remotely operated
Smartphone/tablet remote support
Network
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP, ONVIF
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN
Wi-Fi
Bluetooth
Night vision
LED type	IR
Number of illumination LEDs	1
Infra-red wavelength	940 nm
Night vision
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Number of cameras	1
Packaging content	Tapo C225 Camera DC Power Adapter Quick Start Guide Mounting Screws Mounting Template Camera Base
Screws included
Mounting template
Packaging data
Package width	160 mm
Package depth	190 mm
Package height	110 mm
Package weight	500 g
Performance
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Certification	CE, RCM, WEEE, EAC
Auto-tracking
Day/night mode
Remote viewing
Built-in light
Ports & interfaces
DC-in jack
Power
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC output voltage	12
DC output current	1 A
Security
Security algorithms	WPA, WPA2-PSK
Alert notification type	Push notification, Snapshot alert message
Video motion detection
HTTPS encryption
Privacy protection
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Built-in HDD
Card reader integrated
Sustainability
Compliance certificates	RoHS
Sustainability compliance
Video
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264
Supported video modes	1440p
Frame rate	15 fps
Video recording
Video streaming
Weight & dimensions
Height	112 mm
Diameter	8 cm

---
