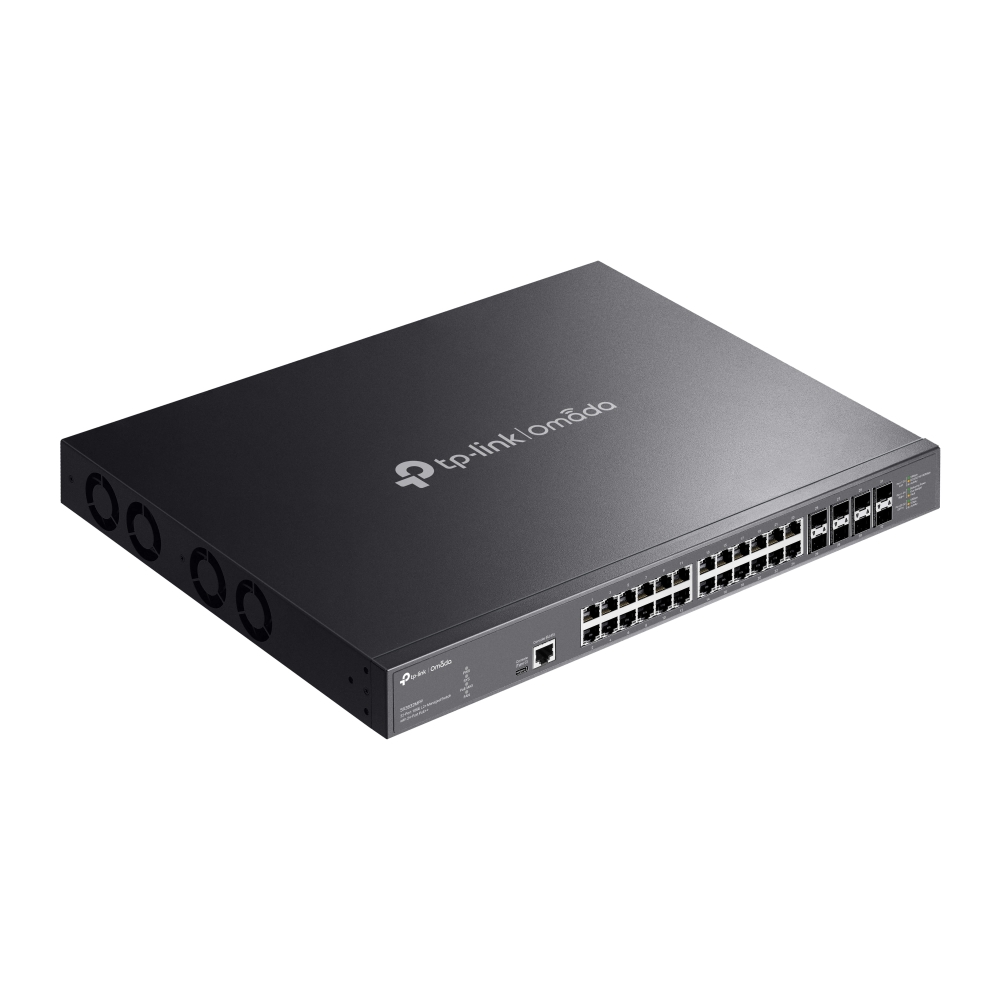

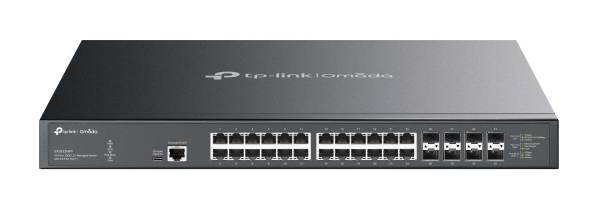

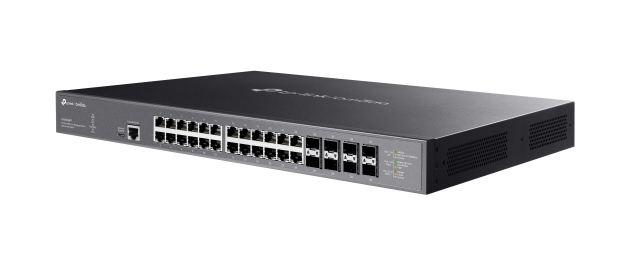

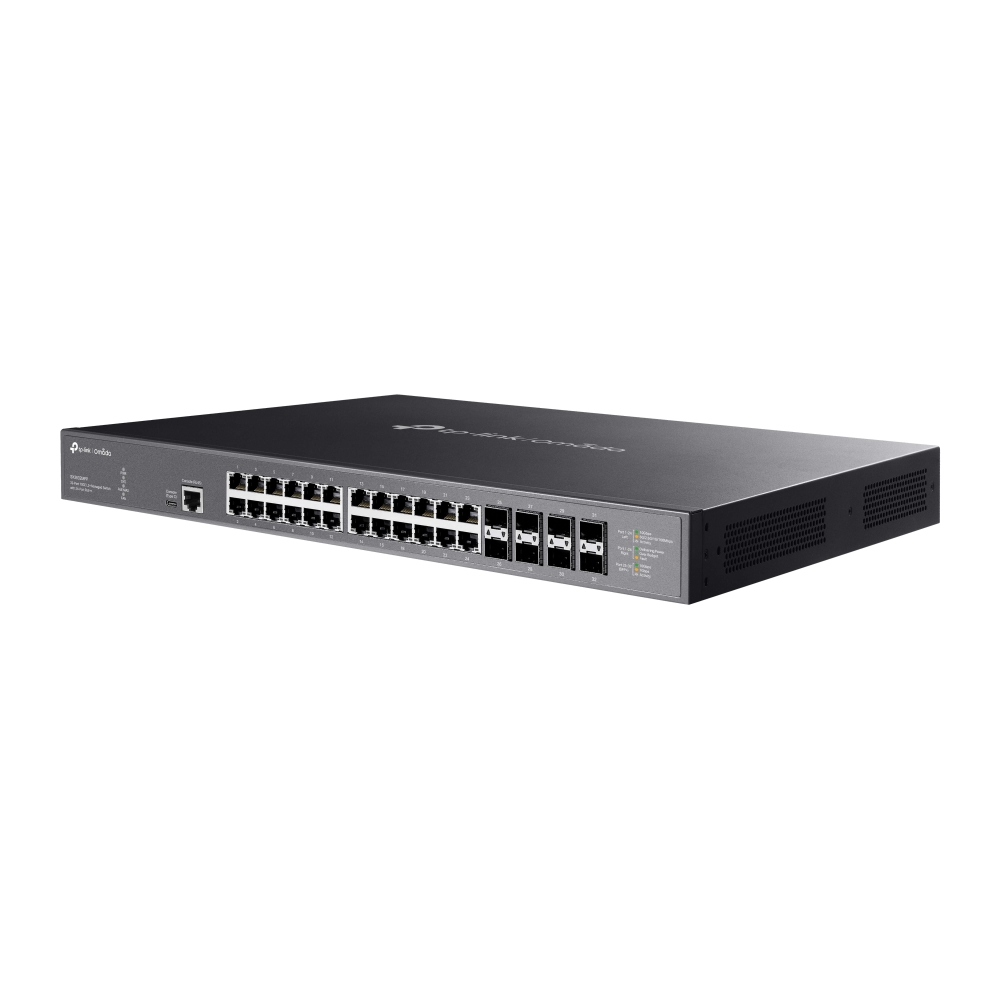

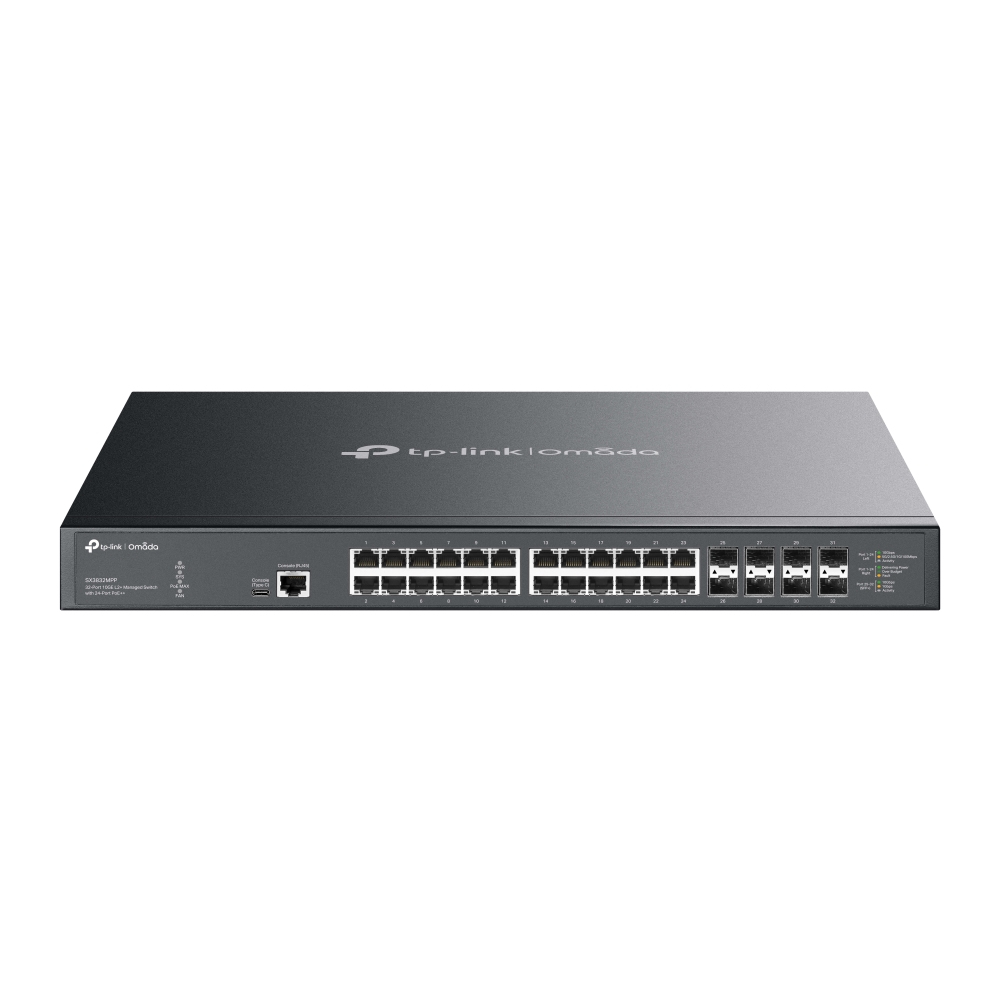

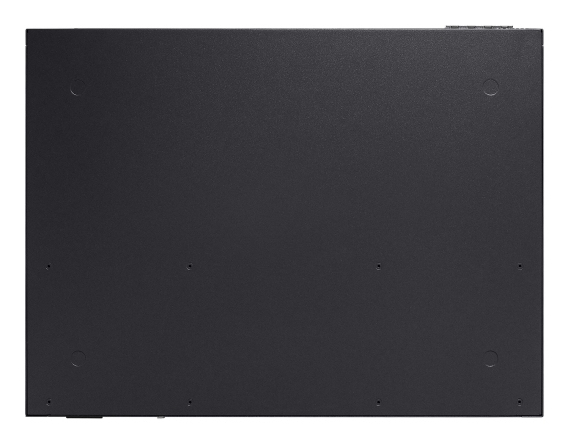

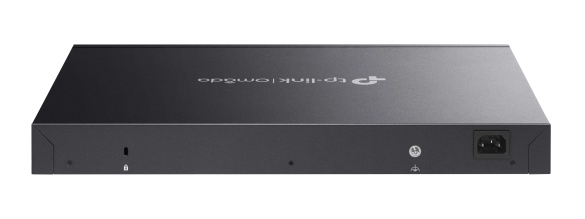

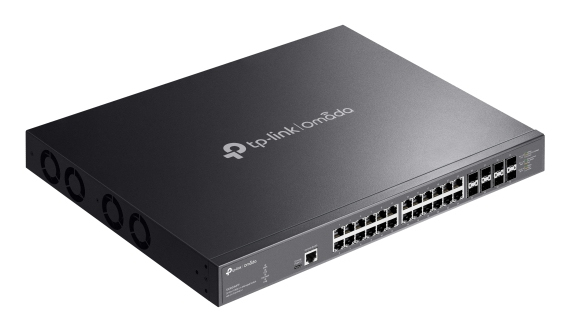

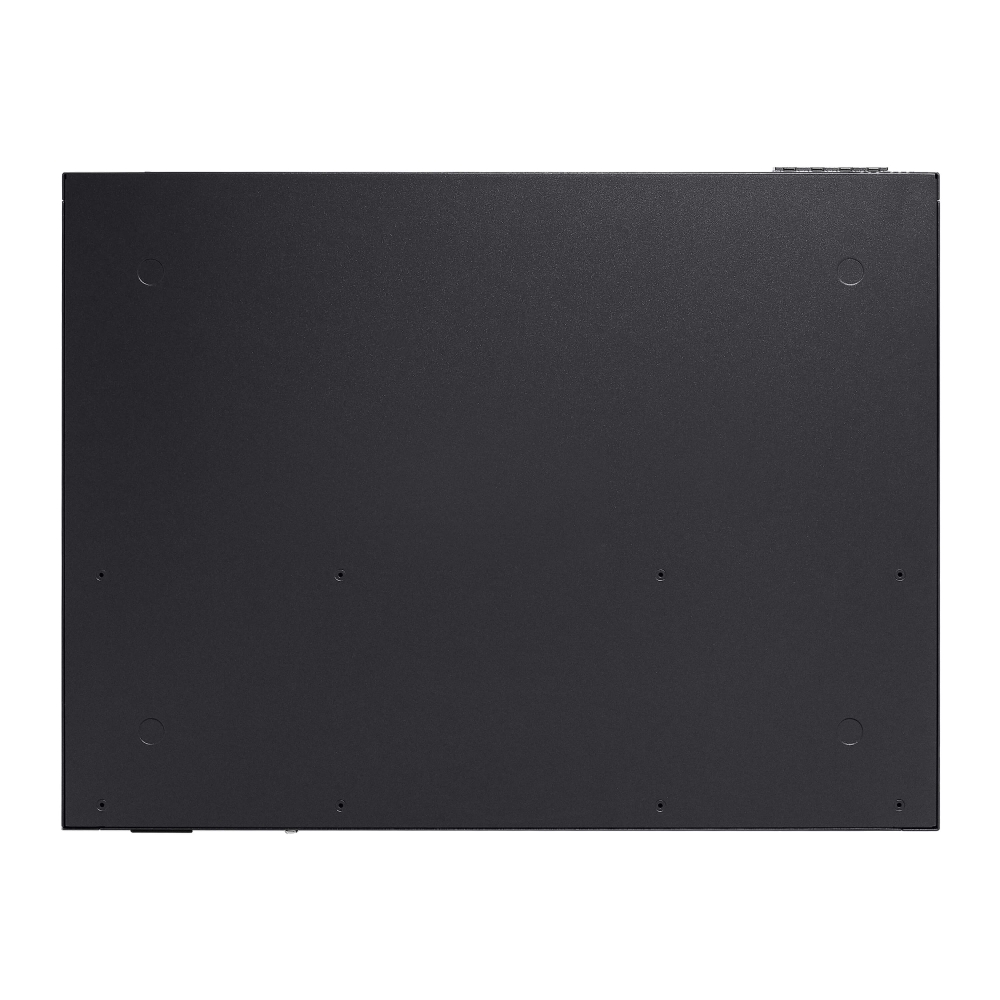

TP-LINK SX3832MPP Omada 32-Port 10GE L2+ Managed Switch 24x 10G RJ45 PoE++ Ports 8x 10G SFP+ Slots content_copy

Der TP-Link Omada SX3832MPP kombiniert 32x 10GE-Ports, darunter 24x PoE++ mit hoher 720 W Gesamtleistung, ideal für leistungsstarke Geräte wie Access Points, Kameras und VoIP-Telefone. Mit L2+ Management-Funktionen und Omada Cloud-Integration bietet er maximale Kontrolle und Effizienz für moderne Netzwerke in Unternehmen und Rechenzentren.

Highlights

• 24× 1/2,5/5/10 Gbit/s RJ45 PoE++-Ports
• 8× 1/10 Gbit/s SFP+-Steckplätze
• 770 W PoE-Gesamtbudget, bis zu 90 W PoE-Ausgang pro Port
• Zentralisierte Cloud-Verwaltung über das Web oder die Omada App
• Eigenständige Verwaltung über Web, CLI, SNMP und RMON
• Statisches Routing hilft, den internen Datenverkehr für höhere Effizienz zu routen
• VLAN, ACL, QoS, IGMP Snooping, OAM und DDM
• ERPS unterstützt schnellen Schutz und Wiederherstellung in einer Ringtopologie
• Langlebiges Metallgehäuse und Rack-montierbares Design

Produkttyp

• Switch
• ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können

Spezifikationen

• Lüfter integriert
• Switch-Art: Access
• Switchingkapazität: 640 GBit/s (Gbps)

Versand

• WEEE: 85565951

Anschlüsse

• Kupferports (RJ45) gesamt: 24
• Glasfaserports (fest verbaut oder SFP) gesamt: 8
• Davon PoE-fähige Ports: 24
• Anschlüsse Highlights: 1× RJ45-Konsolenport; 1× USB-Typ-C-Konsolenport
• Bandbreite: 100/1000/10G-Base-T
• PoE-Standard: PoE - 802.3af, PoE+ - 802.3at, PoE++ - 802.3bt (Typ 3)
• PoE-Budget: 770 W
• Konsolenport
• Hauptporttyp: Kupfer
• Anzahl PoE++ (bt Typ 3) Ports: 24
• Anzahl RJ45 Ports (10G): 24
• Anzahl SFP+ Ports (10G): 8

Funktionen

• Switch managebar: Ja
• Montageart: 48,3 cm ( 19 inch ) Rackmontage
• IGMP

Stromversorgung

• Netzteil: integriert

Grundeigenschaften

• Farbe: Schwarz
• Höhe: 44 mm
• Länge/Tiefe: 330 mm
• Breite: 440 mm

Lieferumfang

• TP-Link Omada SX3832MPP 32-Port 10GE L2+ Managed Switch mit 24-Port PoE++
• Netzkabel
• Konsolenkabel
• Schnellinstallationsanleitung
• Rackmontagesatz
• Gummifüße

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Data transmission
Switching capacity	640 Gbit/s
Forwarding rate	240 Mpps
MAC address table	32000 entries
Number of queues	8
Jumbo frames	9
Packet buffer memory	24 MB
Static route
Jumbo frames support
Design
Form factor	DIN rail
Product colour	Black
Housing material	Metal
Number of fans	4 fan(s)
Rack mounting
Stackable
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Unified static configuration
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast support
Multicast Listener Discovery (MLD) snooping
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
Address Resolution Protocol (ARP) entries (max)	510
IPv4 routes	48
IPv6 routes	48
Virtual LAN features	MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
Spanning tree protocol
Auto-negotiation
Ethernet Ring Protection Switching (ERPS)
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	3444.7 BTU/h
Other features
Packaging content	Console Cable
Packaging content
Cables included	Power
Quick start guide
Rack mount kit
Packaging data
Mounting brackets included
Rubber feet
Screws included
Performance
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Firmware upgradeable
Fanless
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	24
2.5G Ethernet (copper) ports quantity	24
10G Ethernet (copper) ports quantity	24
Installed SFP+ modules quantity	8
Console port	RJ-45/USB Type-C
Power
Power source	AC
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	953.7 W
Power consumption (max)	1010.2 W
Power supply included
Power saving mode (EEE)
Power over Ethernet (PoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	24
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	770 W
Power over Ethernet (PoE)
Protocols
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
Device link detection protocol (DLDP)
Security
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Authentication	Guest VLAN
Authentication type	AAA, RADIUS, TACACS+
Queue scheduling algorithms	Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
Static port security
DoS attack prevention
CPU defense
Sustainability
Sustainability organizations	Accountability
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm

---
