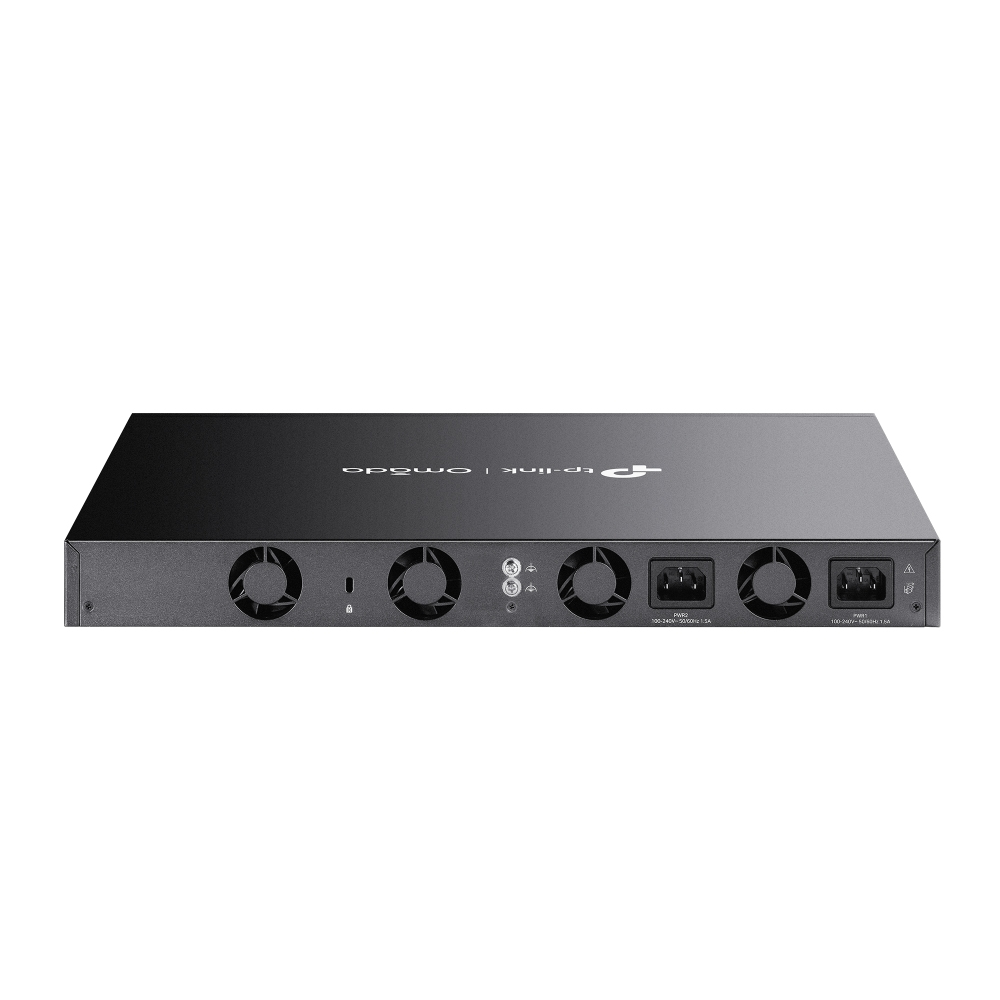

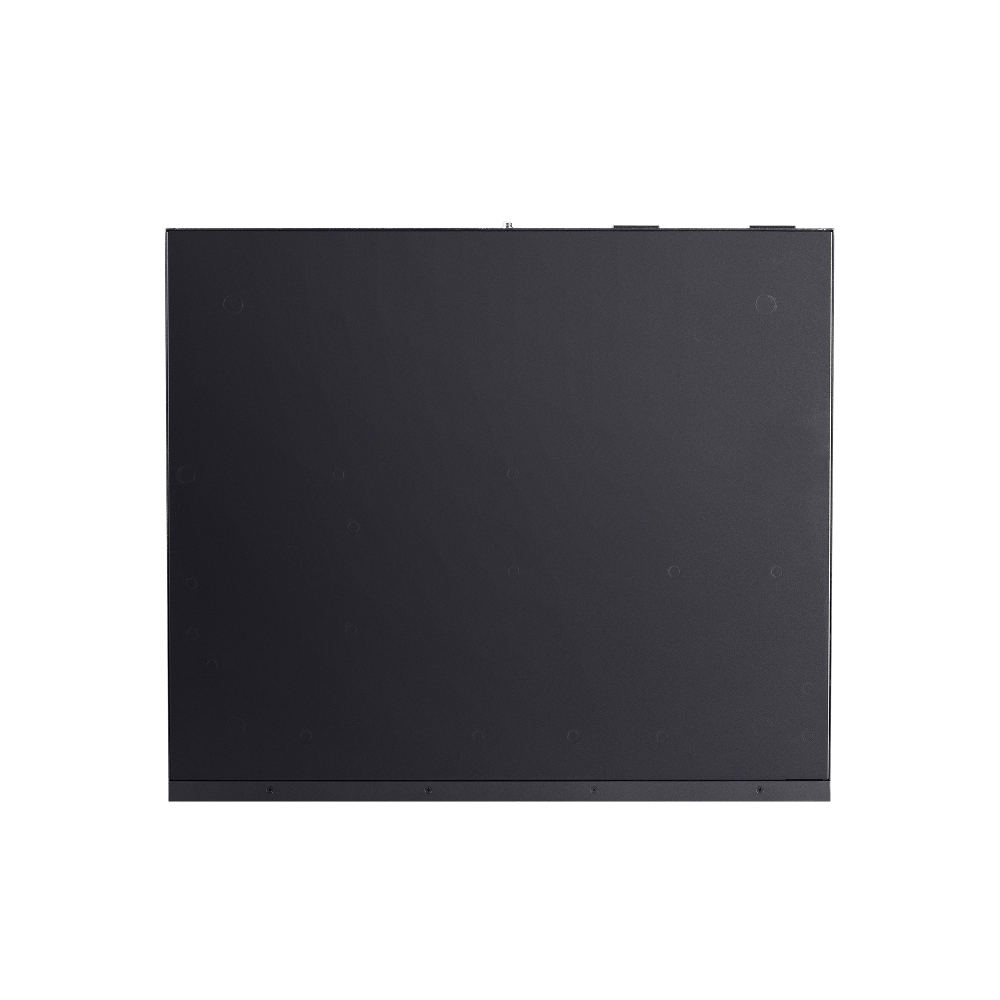

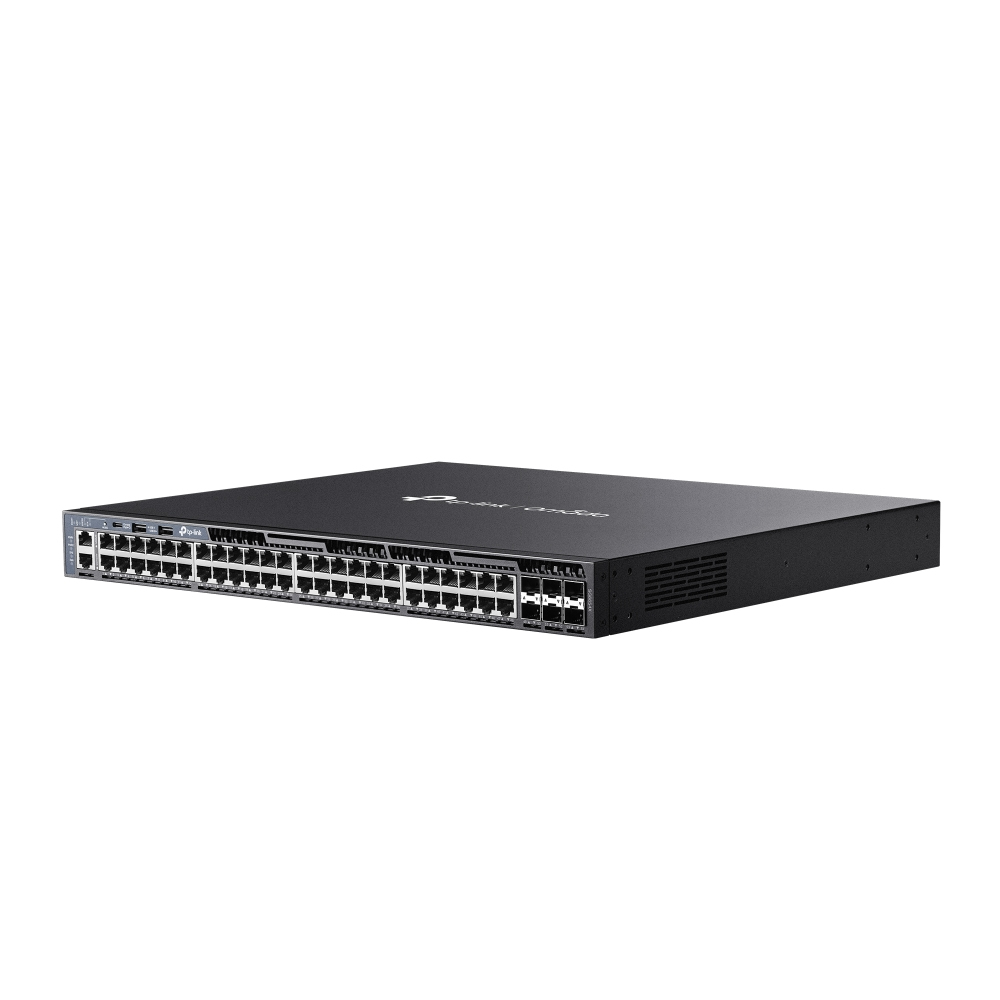

TP-LINK Switch SG6654X 48xGBit /6x10Gbit SFP+ Managed Layer 3 +++ Rack Mountable, Omada SDN, 4 Fans, Layer 3, no PoE
|
-34% 2.564,05 EUR 3.859,80 EUR |
|
|
( 3.051,22 EUR incl. VAT ) ≈ £2,179.44 | ≈ $2,879.43 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Lieske Part No.: | 2119231 |
| Mfg Part No: | SG6654X(UN) |
| UPC/EAN: | 4895252501452 |
| Weight: | 9.37 kg |
| Type: | CPNT |
Product information for TP-Link SG6654X(UN):
Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots 216 Gbps switching capacity per unit Physical Stacking for built-in redundancy and performance L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay Security Strategies: ACL, Port Security, DoS Defend, 802.1X Highly Available with two internal fixed power supplies, VRRP, and ERPS Centralized cloud management via Omada SDN controller Standalone management via web, CLI, SNMP, and RMON
| Data transmission | |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.7 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Flow control support | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 135.81 BTU/h |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Manual | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 39.8 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 snooping |
| IGMP entries | 2048 |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| Loop protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 380 mm |
| Height | 44 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
