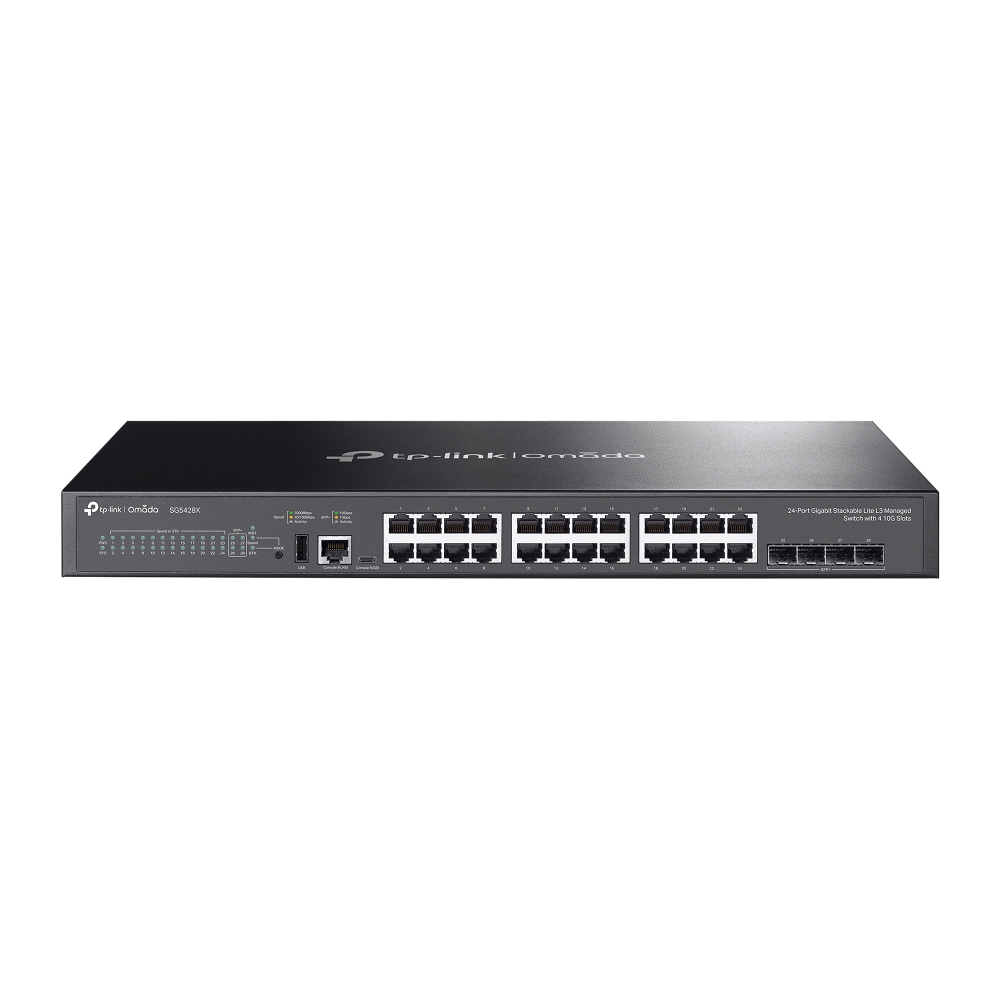

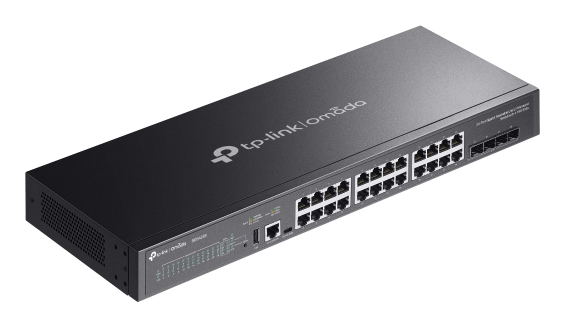

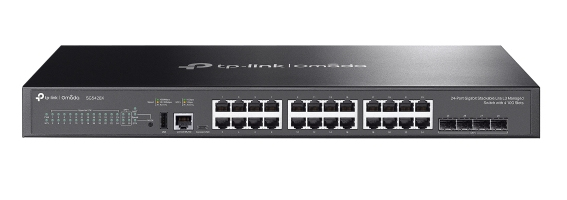

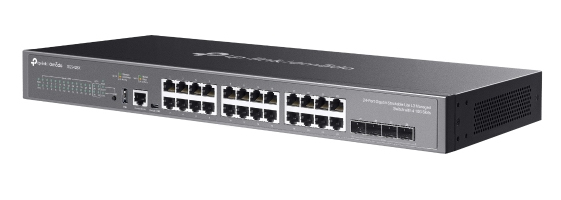

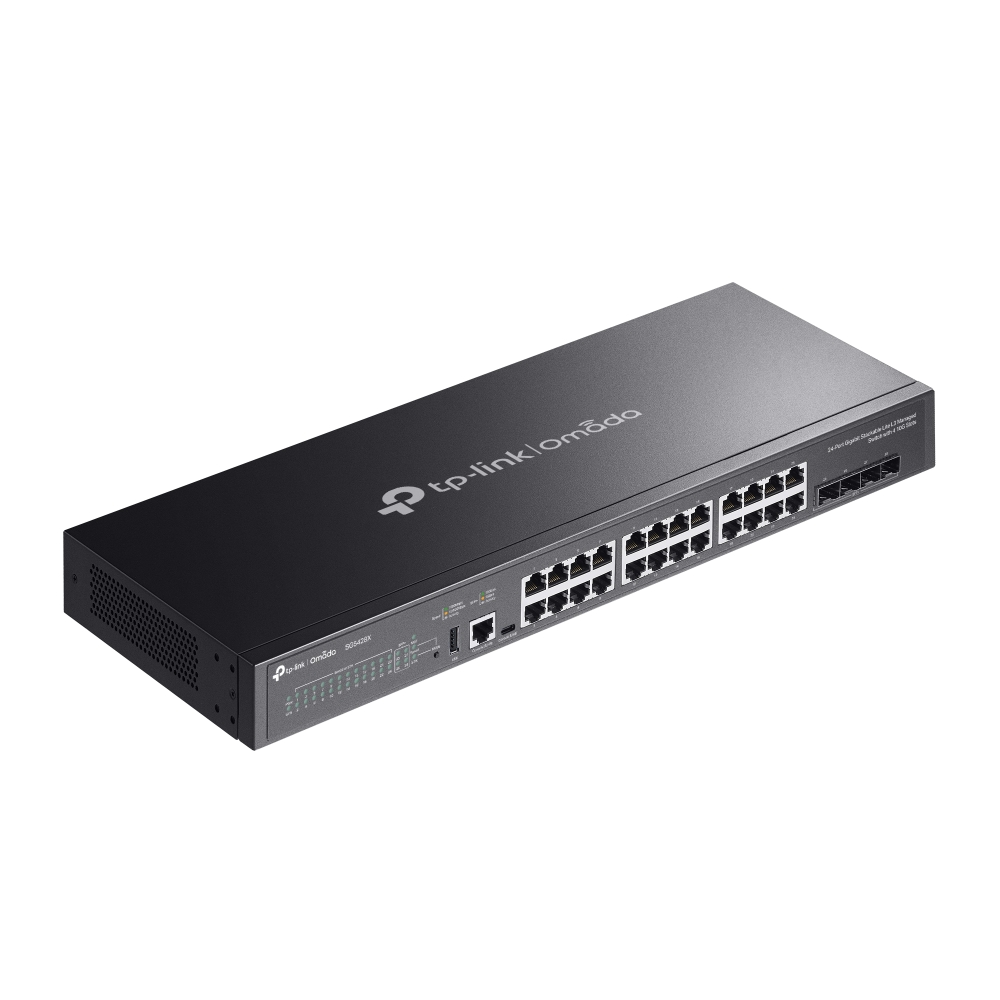

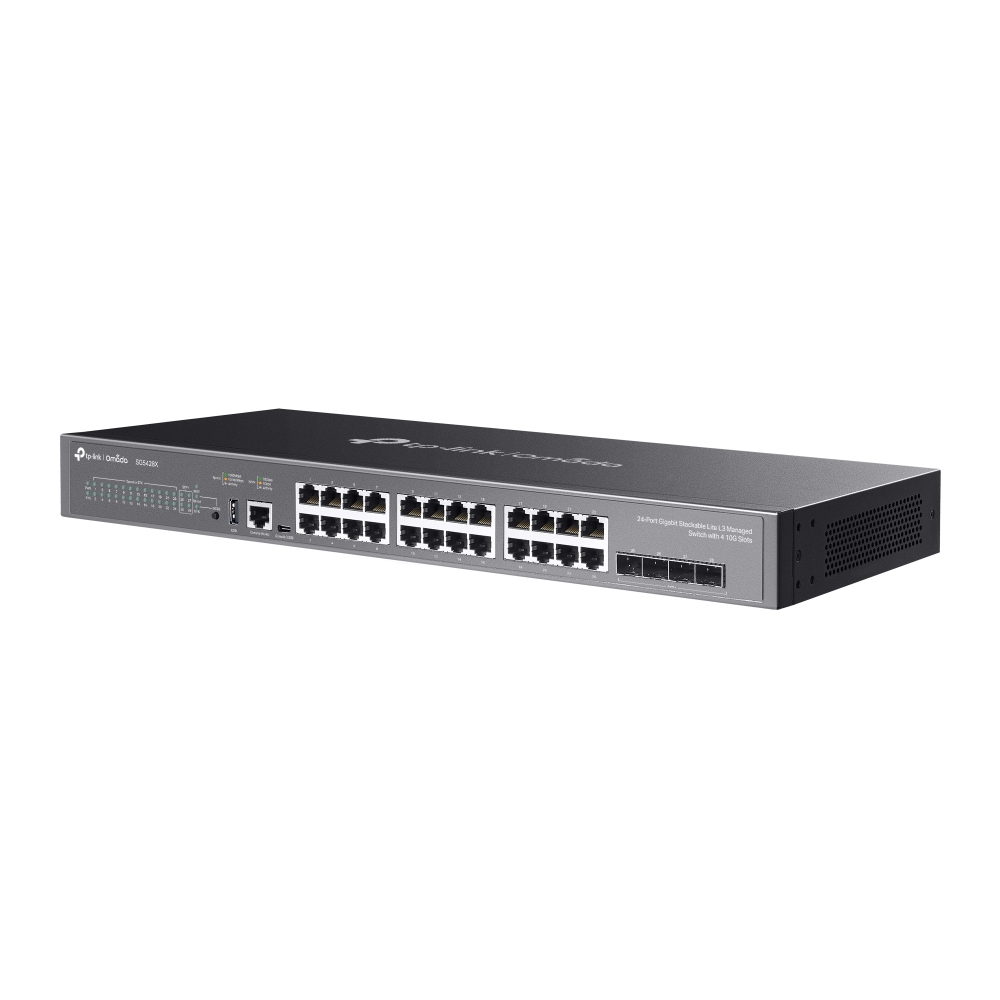

TP-LINK Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4 10G Slots
|
426,36 EUR |
|
|
( 507,37 EUR incl. VAT ) ≈ £362.41 | ≈ $478.80 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 542205 |
|---|---|
| Mfg Part No: | SG5428X |
| UPC/EAN: | 8885020626421 |
| Weight: | 3 kg |
| Type: | CPNT |
Product information for TP-Link SG5428X:
Der TP-Link SG5428X ist ein leistungsstarker Layer-3-Managed-Switch mit 24 Gigabit-Ports und 4 SFP+-Uplinks für 10G-Geschwindigkeit – ideal für moderne Unternehmensnetzwerke. Er unterstützt physisches Stacking, zentrale Verwaltung über Omada SDN sowie umfangreiche Layer-3-Routing- und Sicherheitsfunktionen wie ACLs, 802.1X und DoS-Schutz. Mit geräuschlosem, lüfterlosem Design und einer Switching-Kapazität von 128?Gbps bietet er höchste Performance und Skalierbarkeit.
Highlights
- 24x Gigabit RJ45-Ports und 4x 10 Gbps SFP+-Steckplätze
- 128 Gbit/s Switching-Kapazität pro Einheit
- Physisches Stapeln von bis zu 4 Einheiten für integrierte Redundanz und Leistung
- L3-Funktionen: RIP, OSPF, statisches Routing und DHCP-Server/Relay
- Sicherheitsstrategien: ACL, Port Security, DoS Defend, 802.1X
- ERPS unterstützt schnellen Schutz und Wiederherstellung in einer Ringtopologie
- Zentralisiertes Cloud-Management über den Omada SDN-Controller
- Standalone-Verwaltung über Web, CLI, SNMP und RMON
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 216 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Kupferports (RJ45) gesamt: 24
- Glasfaserports (fest verbaut oder SFP) gesamt: 4
- Anschlüsse Highlights: 1x USB 2.0-Port; 1x RJ45-Konsolenport, 1x USB Type-C-Konsolenport
- Bandbreite: 10/100/1000 MBit/s
- Konsolenport
- Hauptporttyp: Kupfer
- Anzahl RJ45 Ports (1G): 24
- Anzahl SFP+ Ports (10G): 4
Funktionen
- Switch managebar: Ja
- Montageart: 48,3 cm ( 19 inch ) Rackmontage
- IGMP
Stromversorgung
- Netzteil: integriert
- Steckertyp: Schukostecker (Typ F CEE 7/4)
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 44 mm
- Länge/Tiefe: 180 mm
- Breite: 440 mm
Lieferumfang
- TP-Link Omada SG5428X 24-Port Gigabit Stackable Lite L3 Managed Switch mit 4× 10G-Steckplätzen
- Netzkabel
- Konsolenkabel
- Rackmontage-Kits
- Gummifüße
- Schnellinstallationsanleitung
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| ARP inspection | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 66.87 BTU/h |
| Other features | |
| Management level | 4 |
| Bandwidth | 64 Gbit/s |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Rack mount kit | |
| Performance | |
| Physical stacking (units) | 4 |
| Processor manufacturer | ARM |
| Processor frequency | 1200 MHz |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Mean time between failures (MTBF) | 519.543 h |
| Built-in processor | |
| Firmware upgradeable | |
| Telnet | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 19.6 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Static port security | |
| SSH/SSL support | |
| IP-MAC-Port binding | |
| Password protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
