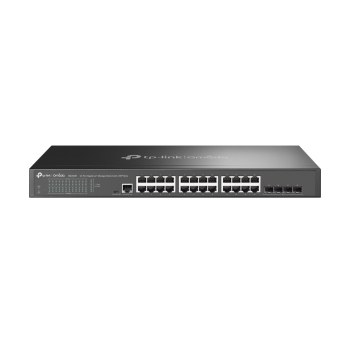

TP-LINK Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
|
205,35 EUR |
|
|
( 244,37 EUR incl. VAT ) ≈ £172.90 | ≈ $230.61 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 253604 |
| Mfg Part No: | SG3428 |
| UPC/EAN: | 1210002611886 |
| Weight: | 3.2 kg |
| Type: | CPNT |
Product information for TP-Link SG3428:
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 48 |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Store-and-forward | |
| Static route | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 0 fan(s) |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| MIB support | |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| IP routing | |
| Policy-based routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Head-of-line (HOL) blocking | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 70.3 BTU/h |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 20.6 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP) | |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Static port security | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| IP-MAC-Port binding | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
Questions & answers
What is the delivery time of TP-LINK Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots?
The article TP-LINK Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link SG3428 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots always at the best possible price. We can give you a discount of 2% on TP-LINK Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
