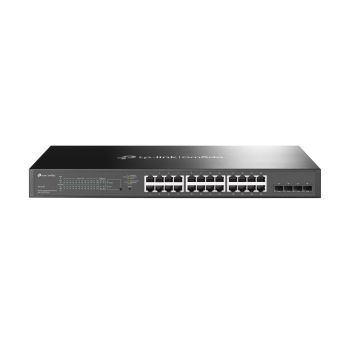

TP-Link SG2428P(UN) Omada Switch 28x GE thereof 24x POE+ V5.40
|
308,66 EUR |
|
|
( 367,31 EUR incl. VAT ) ≈ £259.89 | ≈ $346.63 plus delivery charges: 53,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 215431 |
| Mfg Part No: | SG2428P(UN) |
| UPC/EAN: | 1210002611848 |
| Weight: | 4.536 kg |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L2+ |
| MIB support | Y |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1052.94 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Rack mount kit | |
| Performance | |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 301.1 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| Authentication type | RADIUS |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| BPDU filtering/protection | |
| IP-MAC-Port binding | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
Questions & answers
What is the delivery time of TP-Link SG2428P(UN) Omada Switch 28x GE thereof 24x POE+ V5.40?
The article TP-Link SG2428P(UN) Omada Switch 28x GE thereof 24x POE+ V5.40 is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link SG2428P(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link SG2428P(UN) Omada Switch 28x GE thereof 24x POE+ V5.40 always at the best possible price. We can give you a discount of 2% on TP-Link SG2428P(UN) Omada Switch 28x GE thereof 24x POE+ V5.40 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
