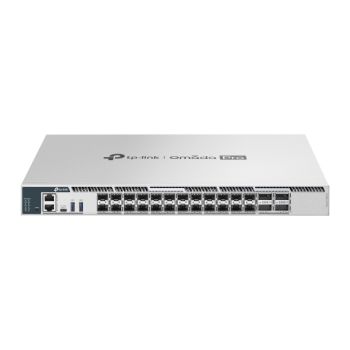

TP-LINK S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots
|
-7% 15.140,39 EUR 16.282,05 EUR |
|
|
( 18.017,06 EUR incl. VAT ) ≈ £12,748.21 | ≈ $17,002.66 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Lieske Part No.: | 1237197 |
| Mfg Part No: | S7500-24Y4C(UN) |
| UPC/EAN: | 4895252505351 |
| Weight: | 10.2 kg |
| Type: | CPNT |
Product information for TP-Link S7500-24Y4C(UN):
| Data transmission | |
| Switching capacity | 2000 Gbit/s |
| Forwarding rate | 810 Mpps |
| MAC address table | 128000 entries |
| Number of queues | 8 |
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Number of fans | 4 fan(s) |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Cloud-managed | |
| Configuring Location Settings (CLI) | |
| Network | |
| Networking standards | IEEE 802.1p |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| 10G support | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1658.78 BTU/h |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | |
| Ports & interfaces | |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 137.63 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Authentication type | AAA, RADIUS, TACACS+ |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| Static port security | |
| SSH/SSL support | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 380 mm |
| Height | 44 mm |
