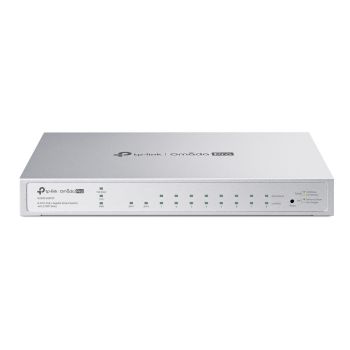

TP-LINK S4500-8GP2F Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots
|
562,67 EUR |
|
|
( 669,58 EUR incl. VAT ) ≈ £473.77 | ≈ $631.88 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1237143 |
| Mfg Part No: | S4500-8GP2F(UN) |
| UPC/EAN: | 4895252505610 |
| Weight: | 1.35 kg |
| Type: | CPNT |
Product information for TP-Link S4500-8GP2F(UN):
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x, IEEE 802.1s, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 1000BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Active link detection | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 265.3 BTU/h |
| Packaging content | |
| Quick start guide | |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Power | |
| Power source | DC |
| Input current | 1.31 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 77.8 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 61 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Authentication type | RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Loop protection | |
| Password protection | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
Questions & answers
What is the delivery time of TP-LINK S4500-8GP2F Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots?
The article TP-LINK S4500-8GP2F Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link S4500-8GP2F(UN) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK S4500-8GP2F Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots always at the best possible price. We can give you a discount of 2% on TP-LINK S4500-8GP2F Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
