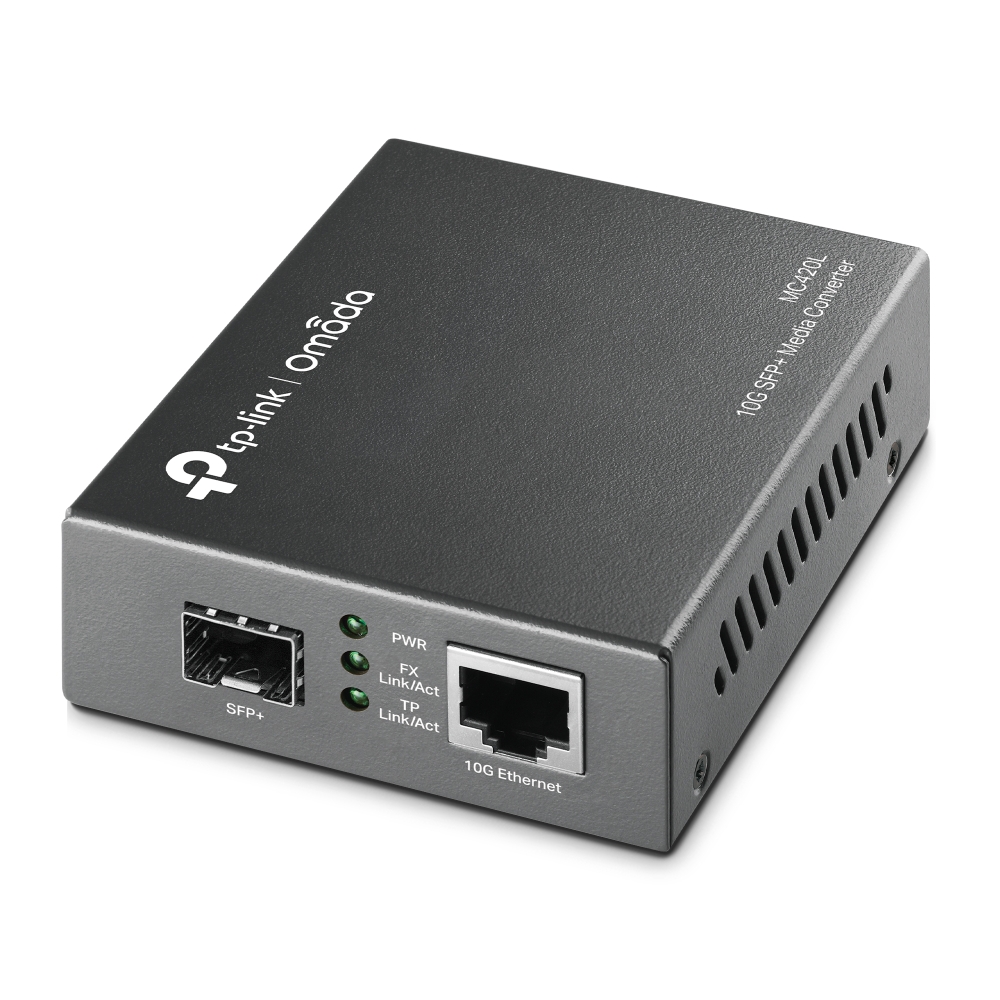

TP-Link MC420L Omada Nek Multi-Gigabit RJ45 to 10G SFP+ Slot
|
-10% 42,79 EUR 47,40 EUR |
|
|
( 50,92 EUR incl. VAT ) ≈ £36.03 | ≈ $48.05 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 07.02.2027info_outline | |
| End-Of-Life: | 06. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1216996 |
| Mfg Part No: | MC420L |
| UPC/EAN: | 8885020625554 |
| Weight: | 0.465 kg |
| Type: | CABL |
Further Media-Converters from TP-LinkFurther products in category Media-Converters
All products of TP-Link
Product information for TP-Link MC420L:
Der TP-Link Omada MC420L ist der kompakte Highspeed-Medienkonverter, der Kupfer- und Glasfasernetze effizient verbindet. Ausgestattet mit einem flexiblen 10G RJ45-Anschluss, der Auto-Negotiation von 1/2.5/5/10?Gbps bietet, und einem SFP+ Slot für Hot-Swap-SFP-Module (SR/LR/LRM), ermöglicht er nahtlose Konvertierung zwischen 10GBASE-T und 10GBASE-SX/LX Netzen – perfekt für Gebäude-übergreifende Verbindungen, Surveillance oder IoT-Infrastrukturen. Sein robustes Metallgehäuse liefert aktuelle Stati über LEDs, verbraucht dabei nur rund 4?W und unterstützt flexible Installation – als Stand-alone oder in einem MC1400-Chassis. MC420L – Ihr zuverlässiger Partner für professionelle Multi-Gig-Vernetzung: leistungsstark, platzsparend und zukunftssicher.
Highlights
- 1x 1G/2,5G/5G/10Gbps Auto-Negotiation RJ45-Ports mit Unterstützung für Auto-MDI/MDIX
- Automatische Aushandlung des Halbduplex-/Vollduplex-Übertragungsmodus
- Entspricht IEEE 802.3an, IEEE 802.3ae und IEEE 802.3aq
- FX-Port unterstützt Hot-Swapping
- Die maximale Übertragungsdistanz hängt vom eingesetzten SFP ab
Produkttyp
- Converter
- ear-Kategorie (ElektroG): relevant, Kategorie 5: Kleingeräte Spezifikationen
- Einsatzgebiet: Indoor
Versand
- WEEE: 85565951
Anschlüsse
- Anschlussarten: RJ45, SFP+
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 27 mm
- Länge/Tiefe: 73 mm
- Breite: 94.5 mm
Lieferumfang
- TP-Link Omada MC420L 10G Multi-Gigabit SFP Medienkonverter
- Netzteil
- Installationsanleitung
| Certificates | |
| Compliance certificates | RoHS, UL |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 2.5GBASE-T, 10GBASE-T, 1000BASE-T |
| Data transfer rate | 10000 Mbit/s |
| Duplex system | Full, Half |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Performance | |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
| Power | |
| Power consumption (max) | 4.12 W |
| Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
