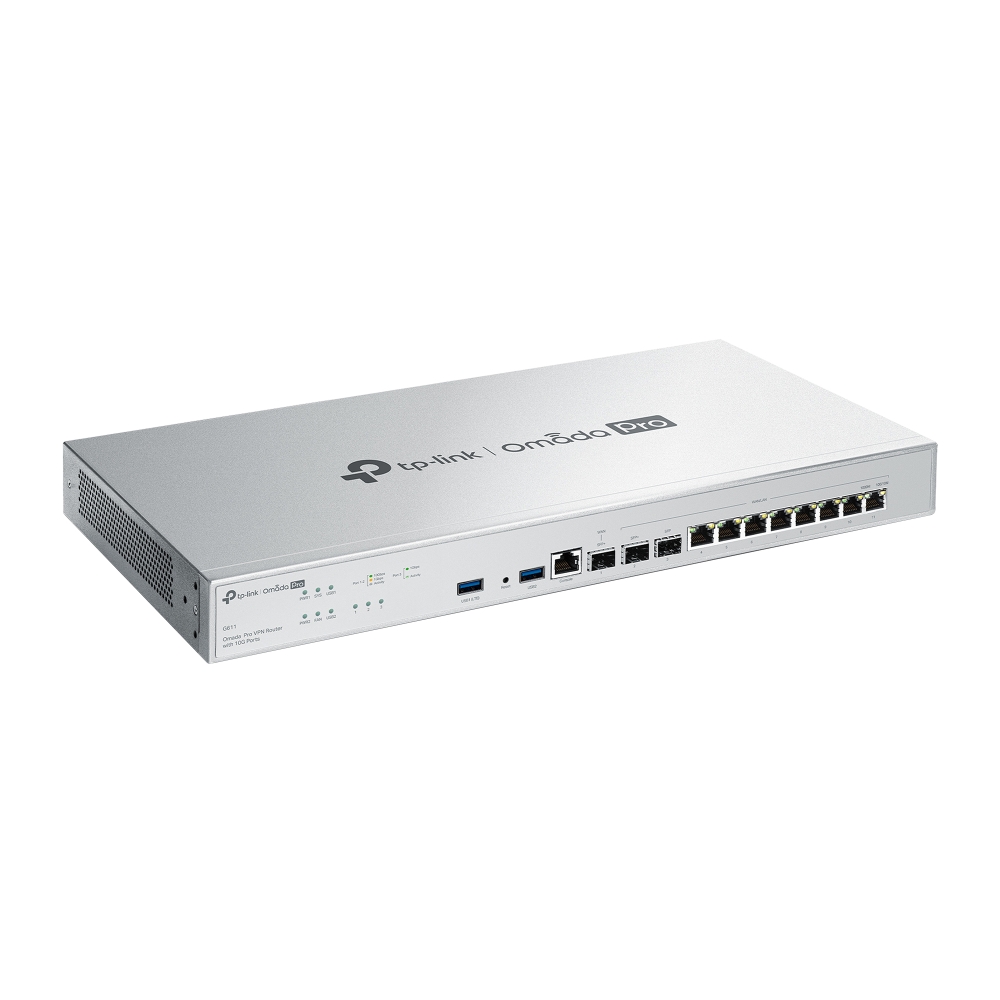

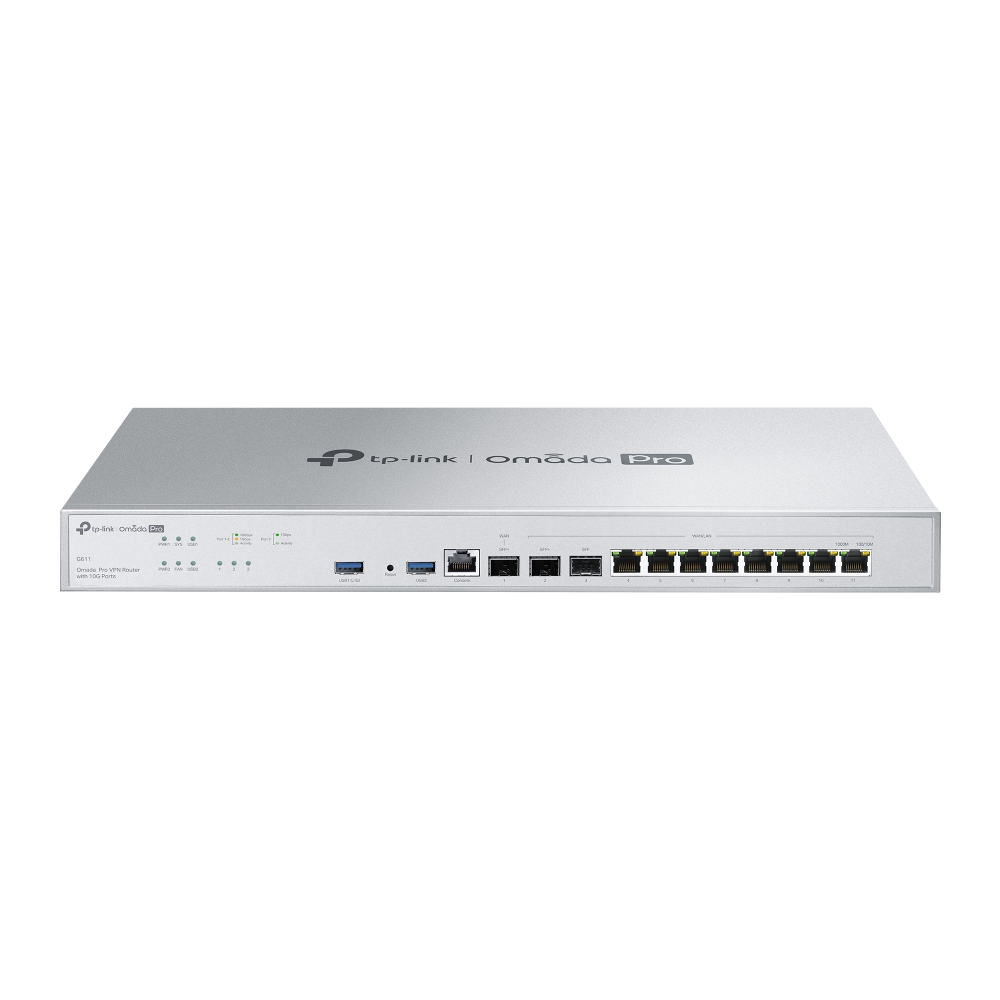

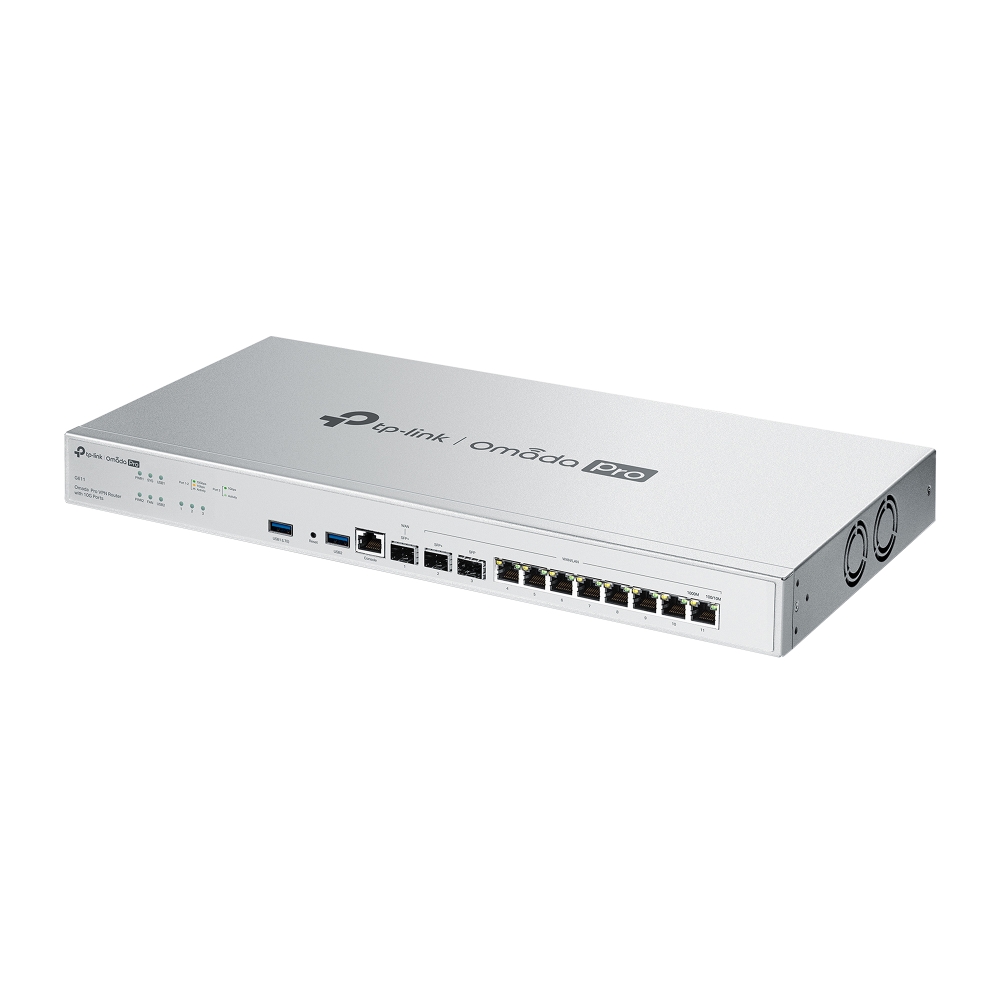

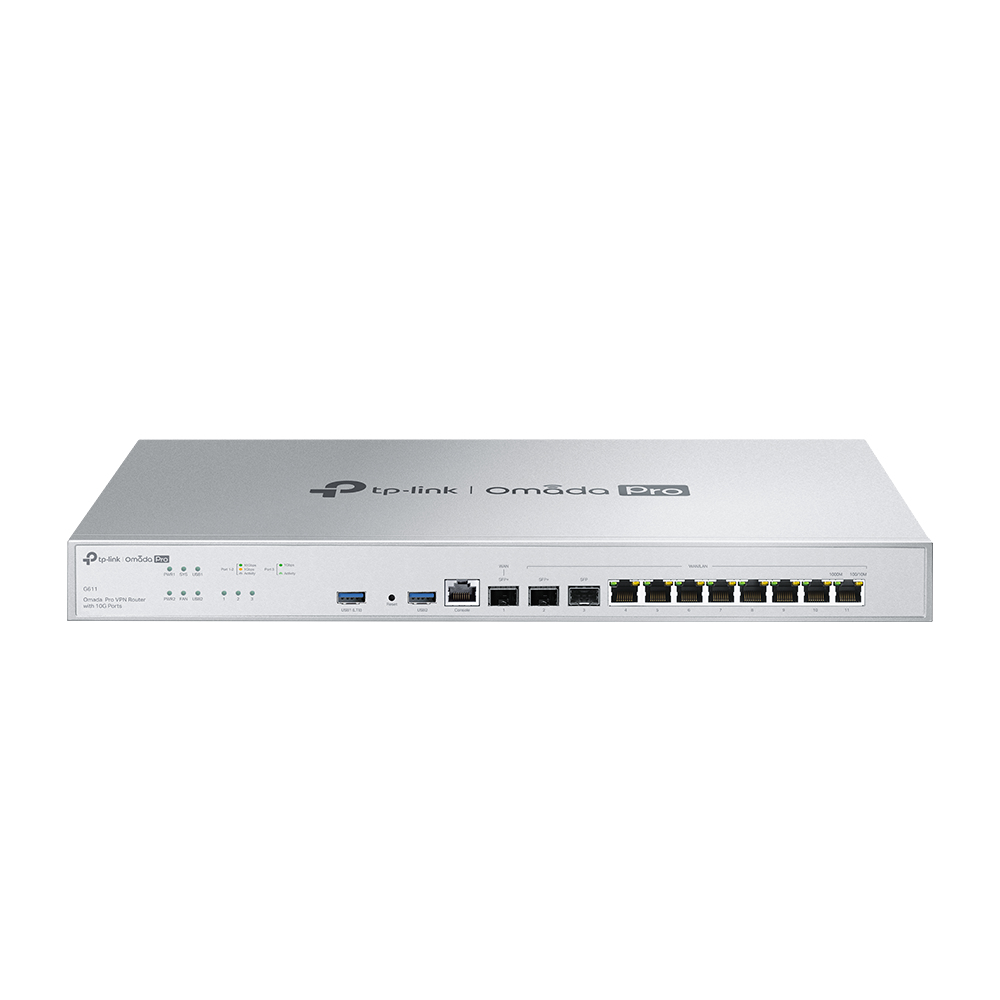

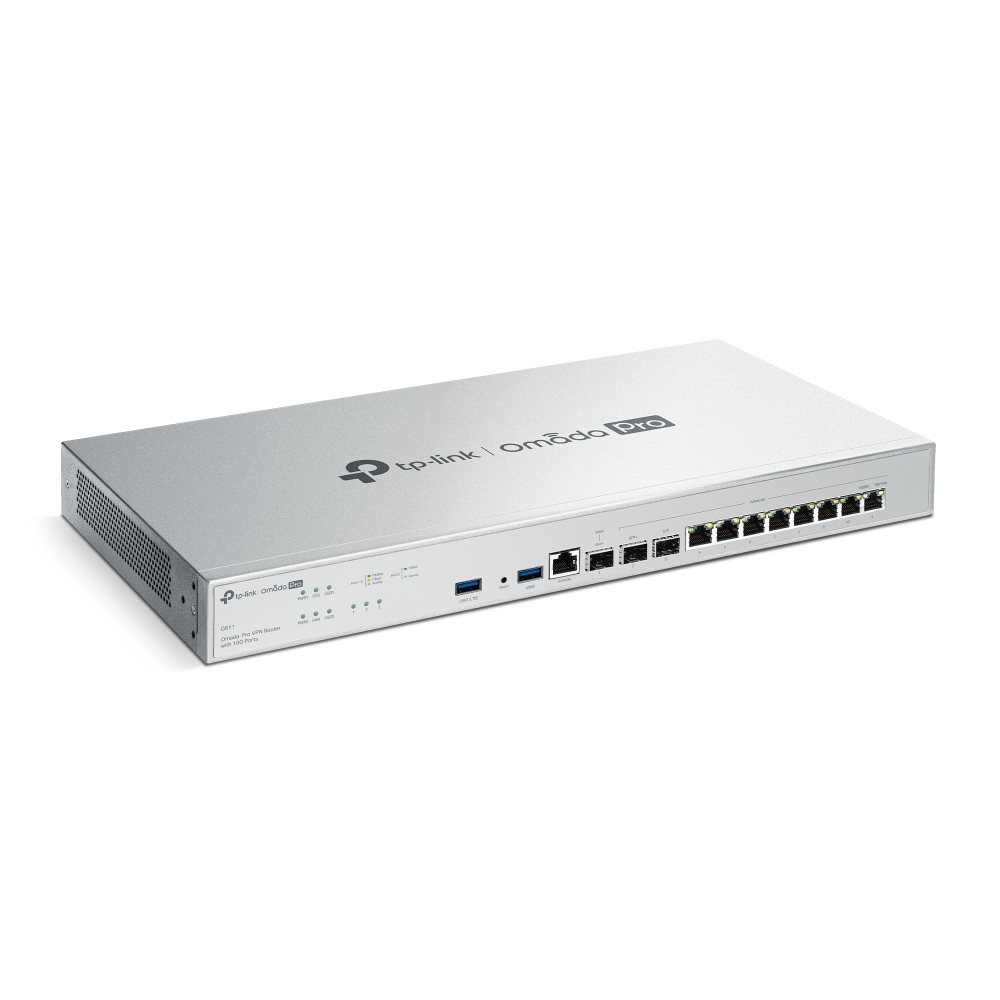

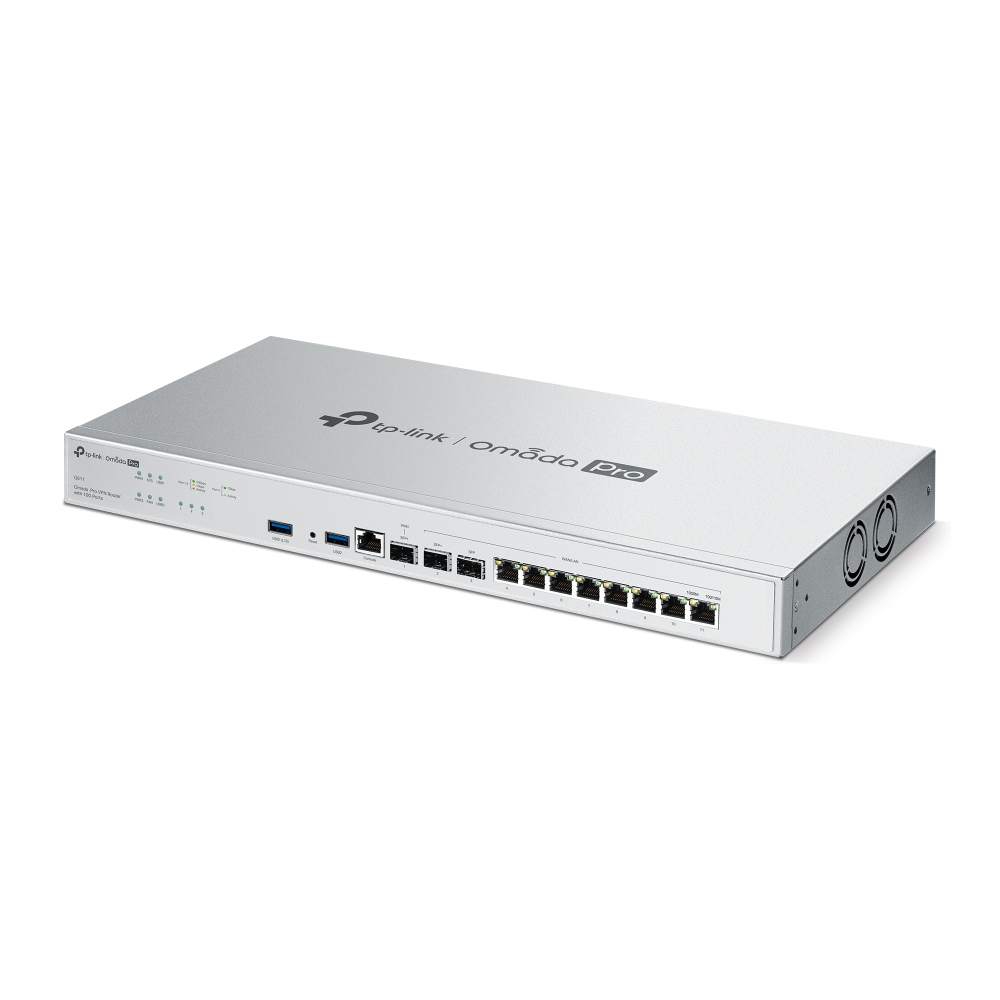

TP-LINK G611 Omada Pro VPN Router 1x 10G SFP+ WAN 1x 10G SFP+ WAN/LAN 1x Gigabit SFP WAN/LAN 8x Gigabit RJ45 WAN/LAN 2x USB3.0 content_copy

What This Product Does

The G611 is a superb VPN router with 10G ports. It comes with a quad-core Cortex-A72 @2.2GHz CPU and 4GB DDR4 high-speed memory for outstanding performance.

10× WAN Ports & One USB WAN for Mobile Broadband

Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup. Note: At least one of the ten WAN/LAN ports needs to function as a LAN.

High-Security and High-Performance VPN

G611 supports pass-through traffic and multiple VPN protocols, including WireGuard, SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.

Robust Security Features

G611 supports various security features. Advanced firewall policies protect your network data and resources. Intrusion detection systems (IDS)*2 monitor and analyze your network traffic for signs of intrusion. DoS Defense automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats. IP-MAC Binding reserves static IP assignments for clients to defend against ARP attacks and spoofing. More features like advanced firewall policies, VLAN Support, and One-Click ALG Activation further improve network security.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and class

Produkttyp

• Stationärer Router
• ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können

Versand

• WEEE: 85565951

Anschlüsse

• USB-Standard: USB 3.0 (USB 3.2 Gen 1)
• Kupferports (RJ45) gesamt: 8

Funktionen

• DHCP-Server
• VPN

Stromversorgung

• Netzteil: extern

Datenübertragung

• Bandbreite: 10/100/1000 MBit/s

Grundeigenschaften

• Farbe: Grau
• Höhe: 44 mm
• Länge/Tiefe: 220 mm
• Breite: 440 mm

Lieferumfang

• TP-Link Omada Pro G611 Kabelrouter Gigabit Ethernet Grau

Design
Product colour	Grey
LED indicators
Features
Processor manufacturer	ARM
Processor model	ARM Cortex-A72
Processor frequency	2.2 MHz
Flash memory	256 MB
Internal memory	4096 MB
Internal memory type	DDR4
Certification	CE, FCC, RoHS
Built-in processor
Management features
Quality of Service (QoS) support
Universal Plug and Play (UPnP)
Reset button
Network
Networking standards	IEEE 802.1Q
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Concurrent connections	2300000
Static route
VLAN support
Traffic control
Port forwarding
Policy-based routing
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
AC adapter included
Quick start guide
Ports & interfaces
Ethernet LAN (RJ-45) ports	8
WAN/Ethernet LAN ports quantity	8
SFP module slots quantity	1
SFP+ module slots quantity	2
USB ports quantity	2
USB version	3.2 Gen 1 (3.1 Gen 1)
DC-in jack
Power
Power consumption (typical)	19.12 W
Power consumption (max)	26.36 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Protocols
Routing protocols	RIP, OSPF
DHCP client
DHCP server
Security
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SHA-1, SHA-256, SHA-384, SHA-512
VPN tunnels quantity	500
URL filtering
IP address filtering
ARP attack prevention
ICMP attack prevention
Access Control List (ACL)
Network address translation (NAT)
Guest access
System event log
WAN connection
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
SFP WAN
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm

---
