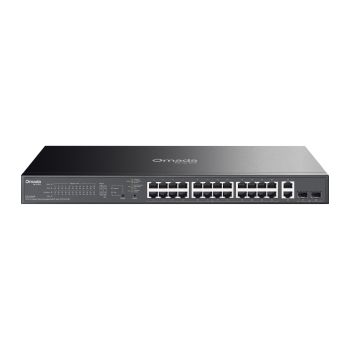

TP-LINK Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
|
-7% 196,67 EUR 210,76 EUR |
|
|
( 234,04 EUR incl. VAT ) ≈ £165.60 | ≈ $220.86 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 544299 |
| Mfg Part No: | ES228GP |
| UPC/EAN: | 1210002609760 |
| Weight: | 3.627 kg |
Product information for TP-Link ES228GP:
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 56 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Davon PoE-fähige Ports: 24
- PoE-Budget: 250 W
- Anzahl PoE (af) Ports: 24
- Anzahl PoE+ (af/at) Ports: 8
- Anzahl RJ45 Ports (1G): 26
- Anzahl SFP Ports (1G): 2
- Combo Ports gesamt: 1
Funktionen
- Switch managebar: Ja
Stromversorgung
- Netzteil: integriert
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 44 mm
- Länge/Tiefe: 180 mm
- Breite: 440 mm
Lieferumfang
- OMADA ES228GP Netzwerk-Switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Schwarz
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.67 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
