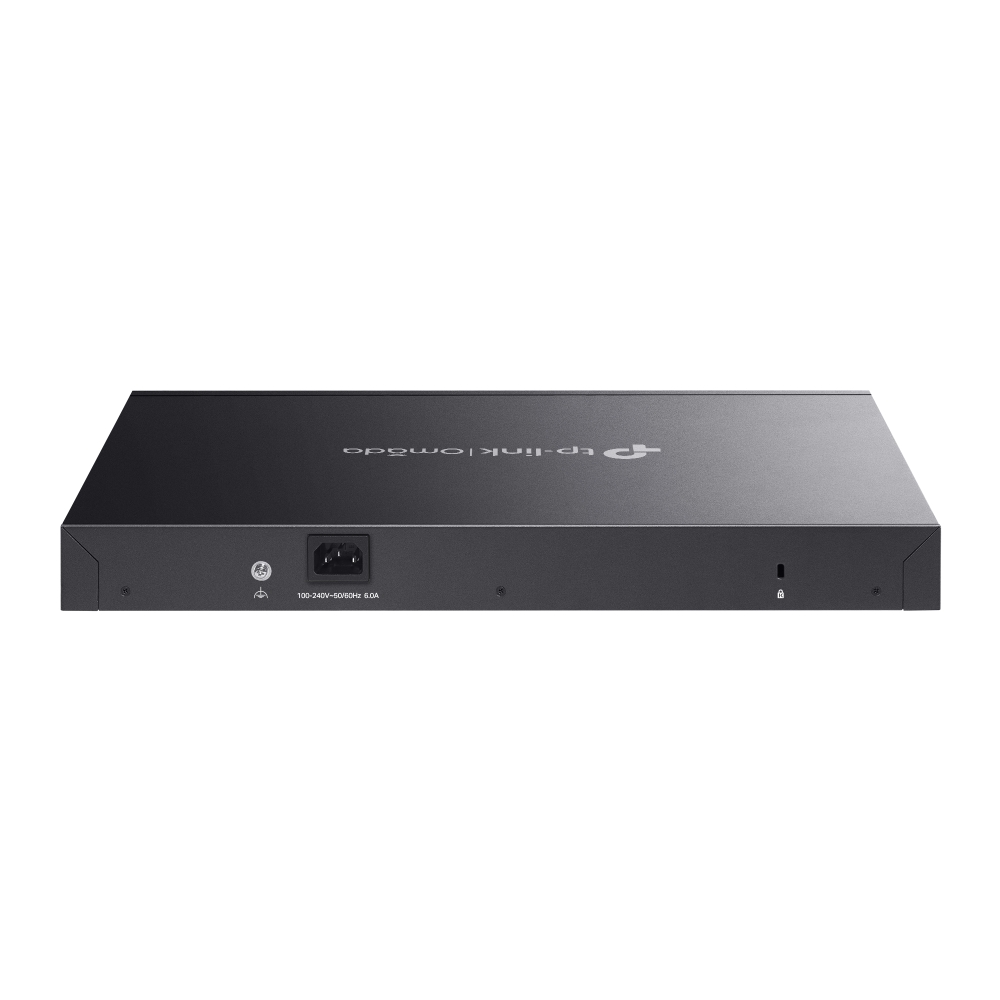

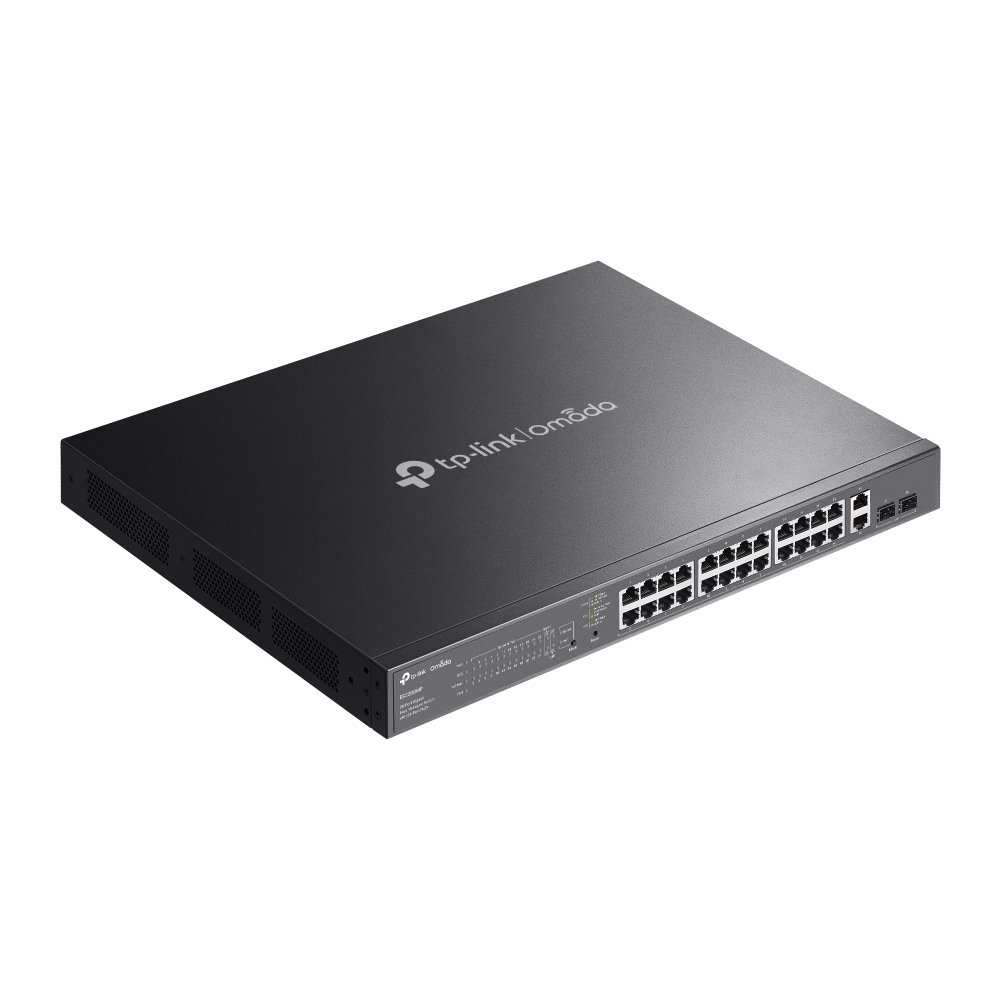

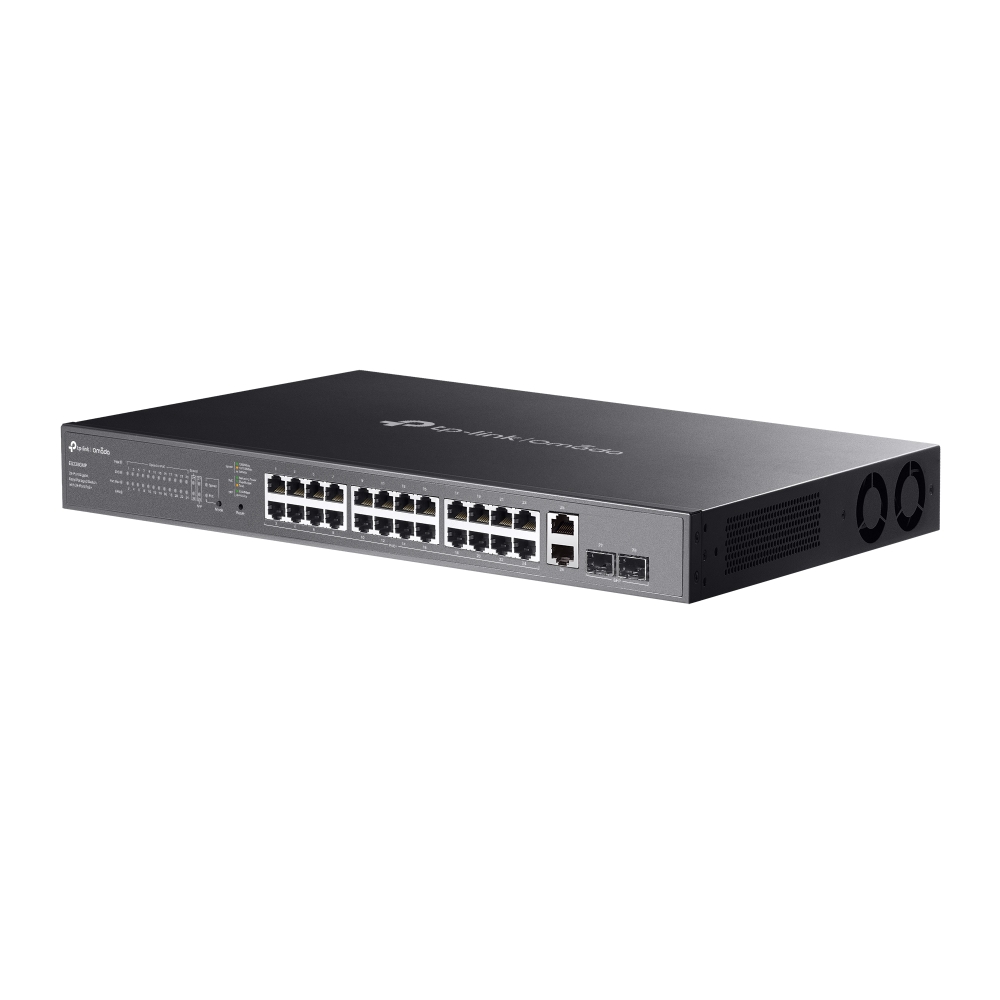

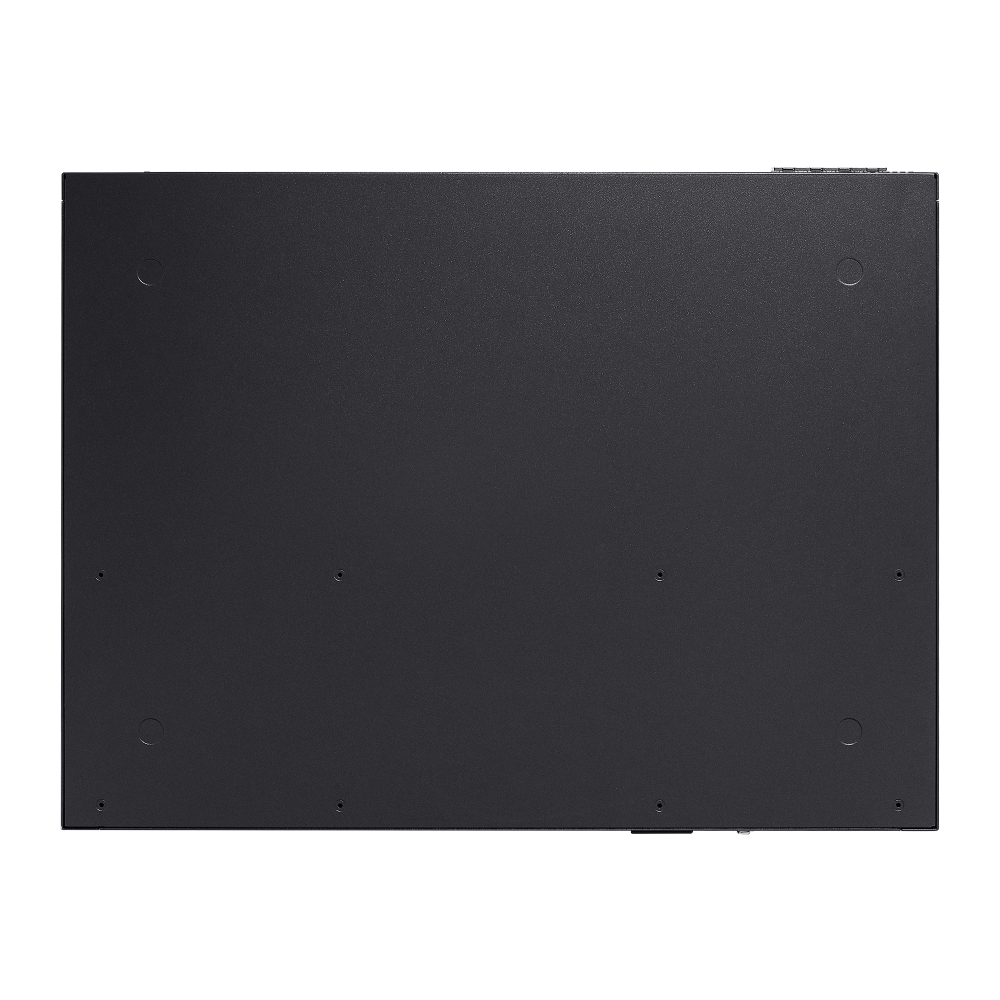

TP-LINK Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
|
350,69 EUR |
|
|
( 417,32 EUR incl. VAT ) ≈ £298.09 | ≈ $393.82 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 1352036 |
|---|---|
| Mfg Part No: | ES228GMP |
| UPC/EAN: | 1210002600989 |
| Weight: | 6.46 kg |
| Type: | CPNT |
Product information for TP-Link ES228GMP:
Der Omada ES228GMP bietet 28 Gigabit-Ports, darunter 24 mit PoE+ (384?W Gesamtbudget) – perfekt zur zuverlässigen Stromversorgung von IP-Kameras, Access Points oder VoIP-Telefonen. Mit einer PoE-Reichweite von bis zu 250?m und zentralem Cloud-Management über die Omada-Plattform lässt sich Ihr Netzwerk flexibel und ortsunabhängig steuern. Funktionen wie PoE Auto Recovery und intelligentes Traffic-Management sorgen für maximale Stabilität. Ideal für Büros, Hotels oder Überwachungsumgebungen – lüfterlos, leistungsstark und effizient.
Highlights
- 26x 10/100/1000Mbps RJ45-Ports (24x 802.3af/at-kompatibles PoE+)
- 2x Gigabit-SFP-Port
- 384 W Leistungsbudget, mit bis zu 30 W für jeden PoE-Port
- Einfach zu bedienen: Unterstützt Plug-and-Play für sofortige Konnektivität und einfache Konfiguration für zusätzliche Funktionen
- Zentralisiertes Cloud-Management über das Web oder die Omada-App
- Bis zu 250 m PoE, QoS, PoE Auto Recovery und Port-Isolation für zuverlässige Überwachungsnetzwerke
- Automatische Schleifenverhinderung, VLAN und IGMP-Snooping
- Robustes Metallgehäuse und Rack-montierbares Design
Produkttyp
- Switch
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Switchingkapazität: 56 GBit/s (Gbps)
Versand
- WEEE: 85565951
Anschlüsse
- Kupferports (RJ45) gesamt: 26
- Glasfaserports (fest verbaut oder SFP) gesamt: 2
- Davon PoE-fähige Ports: 24
- Bandbreite: 10/100/1000 MBit/s
- PoE-Standard: PoE - 802.3af, PoE+ - 802.3at
- PoE-Budget: 384 W
- Hauptporttyp: Kupfer
- Anzahl PoE+ (af/at) Ports: 24
- Anzahl RJ45 Ports (1G): 26
- Anzahl SFP Ports (1G): 2
Funktionen
- Switch managebar: Ja
- Montageart: 48,3 cm ( 19 inch ) Rackmontage
- IGMP
Stromversorgung
- Netzteil: integriert
- Steckertyp: Schukostecker (Typ F CEE 7/4)
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 44 mm
- Länge/Tiefe: 330 mm
- Breite: 440 mm
Lieferumfang
- TP-Link Omada ES228GMP 28-Port Gigabit Easy Managed Switch mit 24-Port PoE+
- Netzkabel
- Montagehalterungen
- Gummifüße
- Schrauben
- Installationsanleitung
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Cloud-managed | |
| Unified static configuration | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Fast leave | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1546.15 BTU/h |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Manual | |
| Rack mount kit | |
| Performance | |
| Flash memory | 64 MB |
| Noise level | 46.2 dB |
| Mean time between failures (MTBF) | 224143 h |
| Firmware upgradeable | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 26 |
| SFP module slots quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 454.8 W |
| Surge protection voltage | 6 kV |
| Power supply included | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 384 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
