TP-Link ES220GMP(UN) Omada Switch 20x GB ES220GP Easy managed/POE+ content_copy

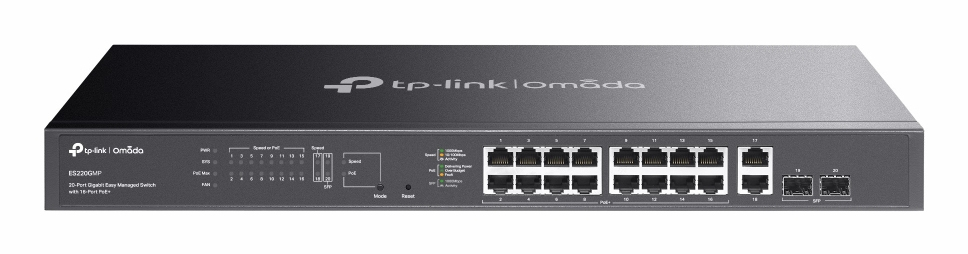

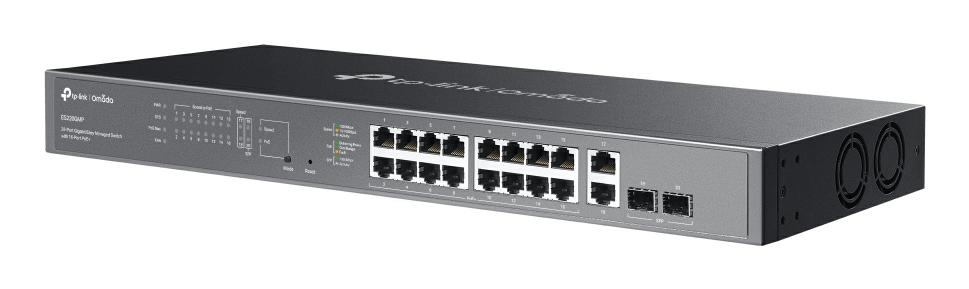

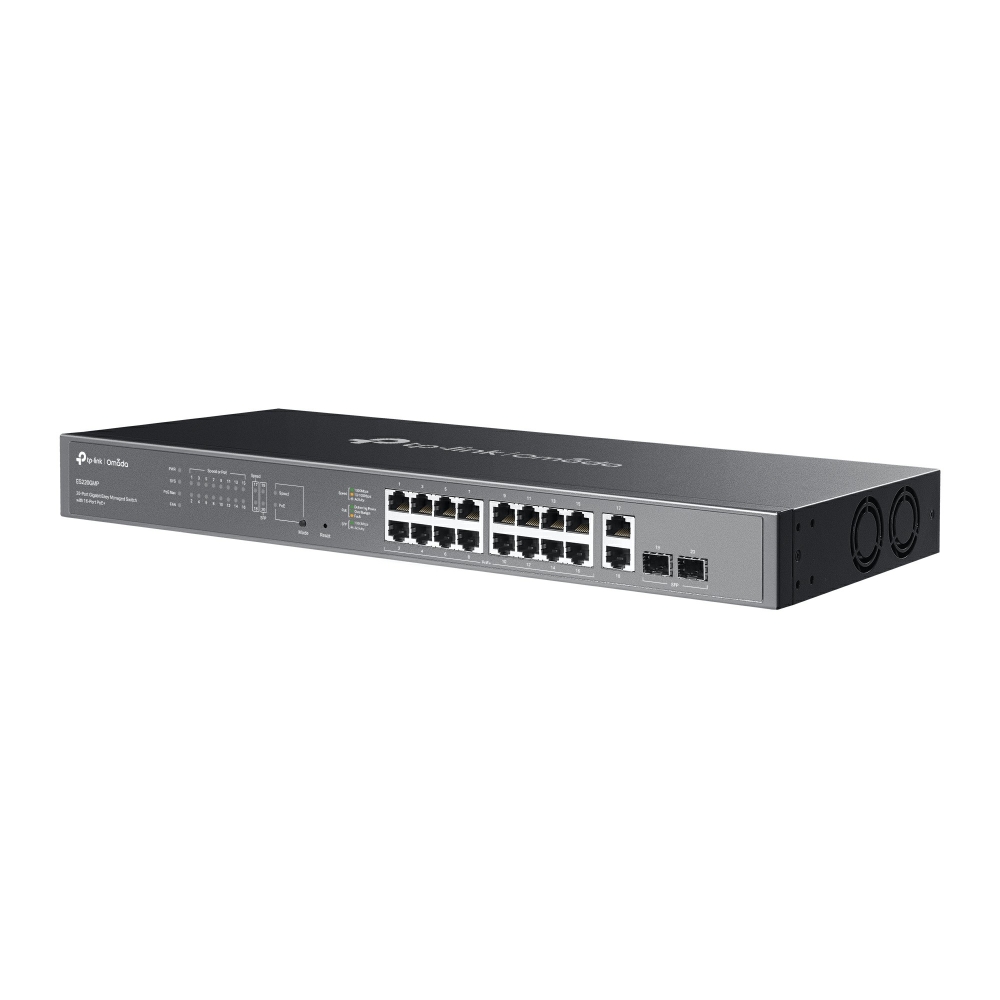

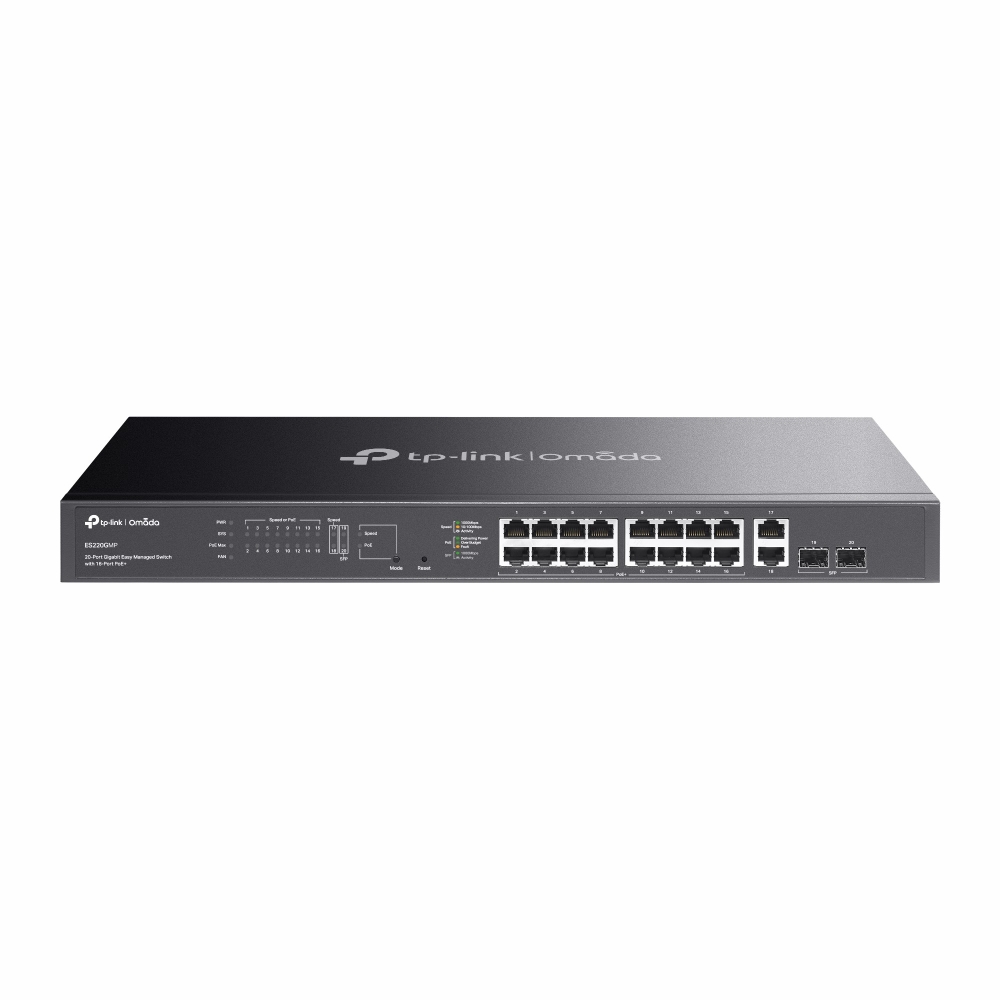

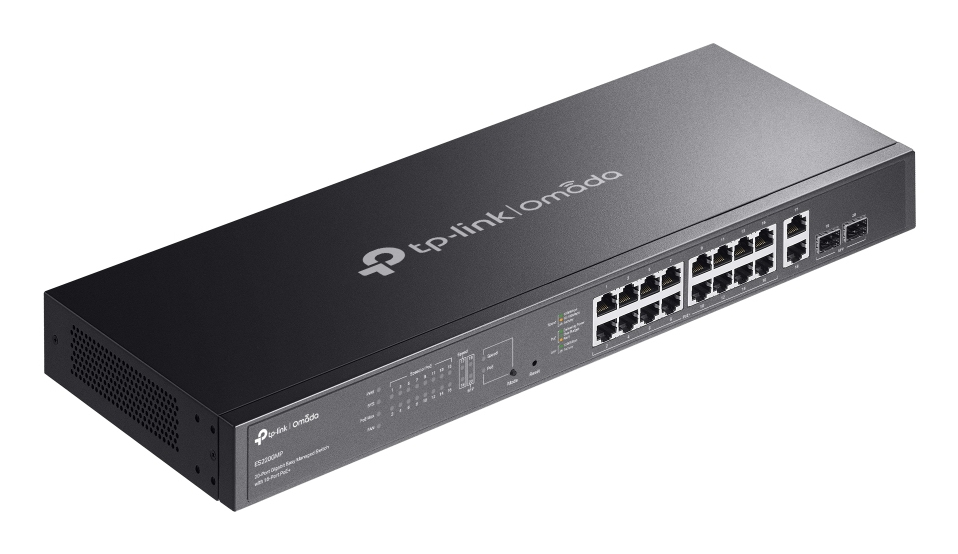

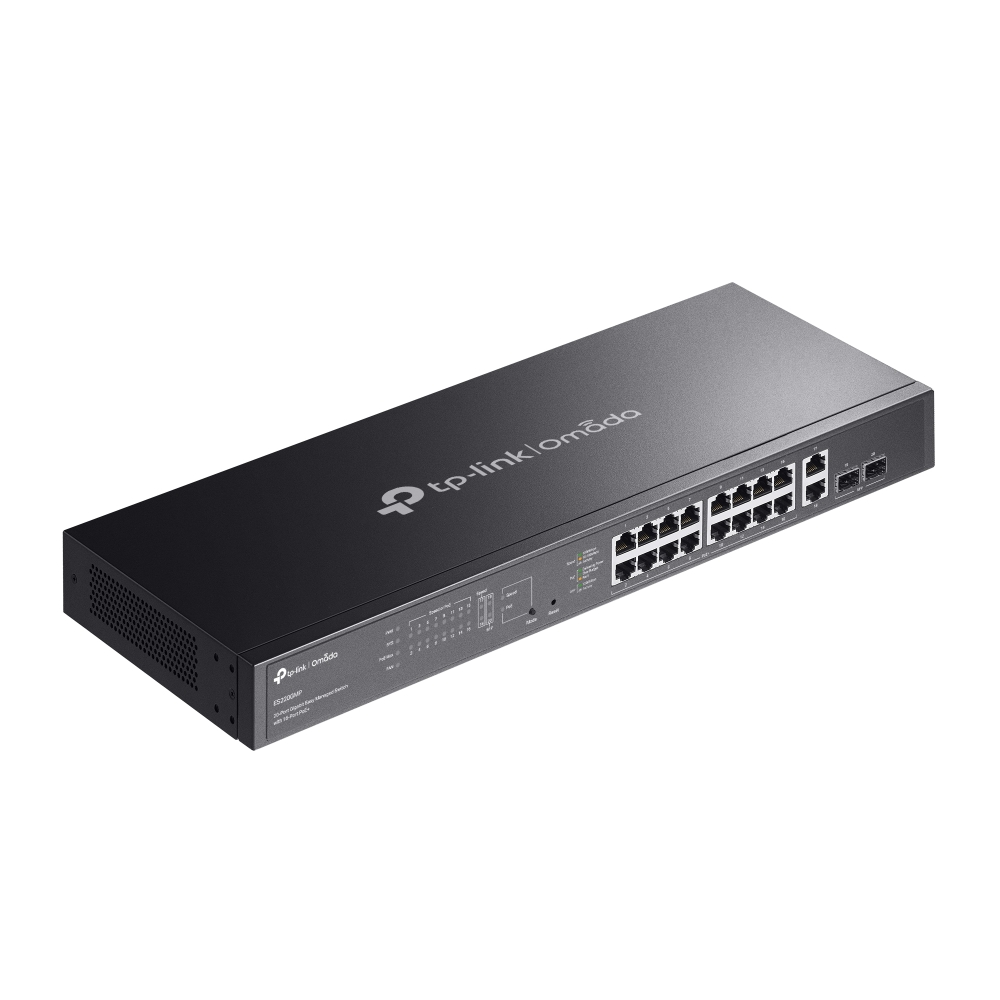

The TP-Link Omada ES220GMP is a managed L2-switch with 20 Gigabit ports, specifically designed for small businesses and surveillance networks. It features 16 PoE+-ports (compliant with 803.3at/af), which supply power directly to compatible end devices such as IP cameras or access points via the network cable. The PoE power per port is up to 30 W, with a total PoE budget of 250 W. Two additional Gigabit RJ45 ports and two SFP slots for fiber modules complete the connectivity options. The device is designed for rack mounting and features a robust metal housing in black. Cloud-based management via web interface or the Omada app enables centralized control and configuration, even across multiple locations. The Zero-Touch Provisioning (ZTP) function supports fast, automated setup of new devices.

Applications

The ES220GMP is particularly suitable for networks requiring a high number of PoE-enabled end devices, such as surveillance systems, small office networks, or hotspots. The support for up to 250 m PoE reach increases flexibility in placing cameras or access points. Integrated port isolation and loop prevention ensure a stable network environment, while IGMP Snooping and VLAN functions (including port-based VLAN, tagged VLAN, MTU VLAN) enable network segmentation and control. QoS functions with WRR (Weighted Round Robin) prioritization support the reliability of critical data streams.

Functions and Equipment in Detail

The switch offers a switching capacity of 40 Gbit/s and a packet processing rate of 29.76 Mpps. The MAC address table holds 8000 entries, sufficient for efficient device detection in medium-sized networks. The store-and-forward technology ensures error-free data transmission. Support for jumbo frames up to 15000 bytes improves efficiency for large data transfers. LED indicators allow visual status monitoring of the ports. Automatic MDI/MDI-X detection and auto-negotiation ensure compatibility with various network devices.

Technology Explained Simply

Cloud management enables configuration and monitoring of the switch over the internet, regardless of location. VLAN functions (Virtual Local Area Network) allow logical separation of network segments to enhance security and performance. Link aggregation (up to 4 groups with 8 ports each) increases bandwidth and provides redundancy. Port mirroring (mirroring) is useful for network diagnostics and monitoring.

Compatibility and Accessories

The two SFP slots are compatible with 1-Gbit SFP modules, such as the MiniGBIC module 1 GBit SFP LC Singlemode LX (TL-SM311LS) or Multimode SX (TL-SM311LM). These modules enable connections via fiber optic cables, significantly extending the reach. Using SFP modules does not require additional power supply, as PoE functionality applies only to the RJ45 ports. The Omada software platform enables integration with other Omada devices such as access points or gateways for unified network management.

Mounting and Installation

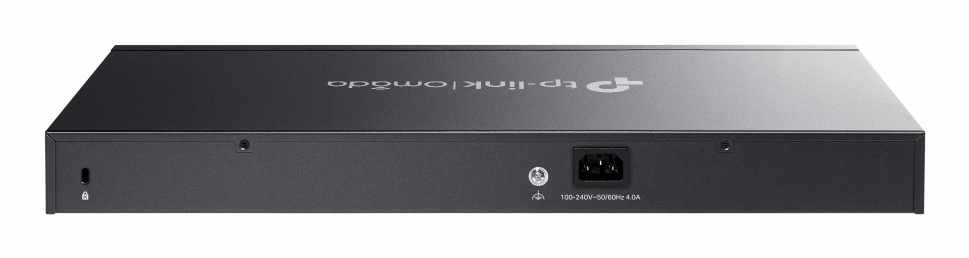

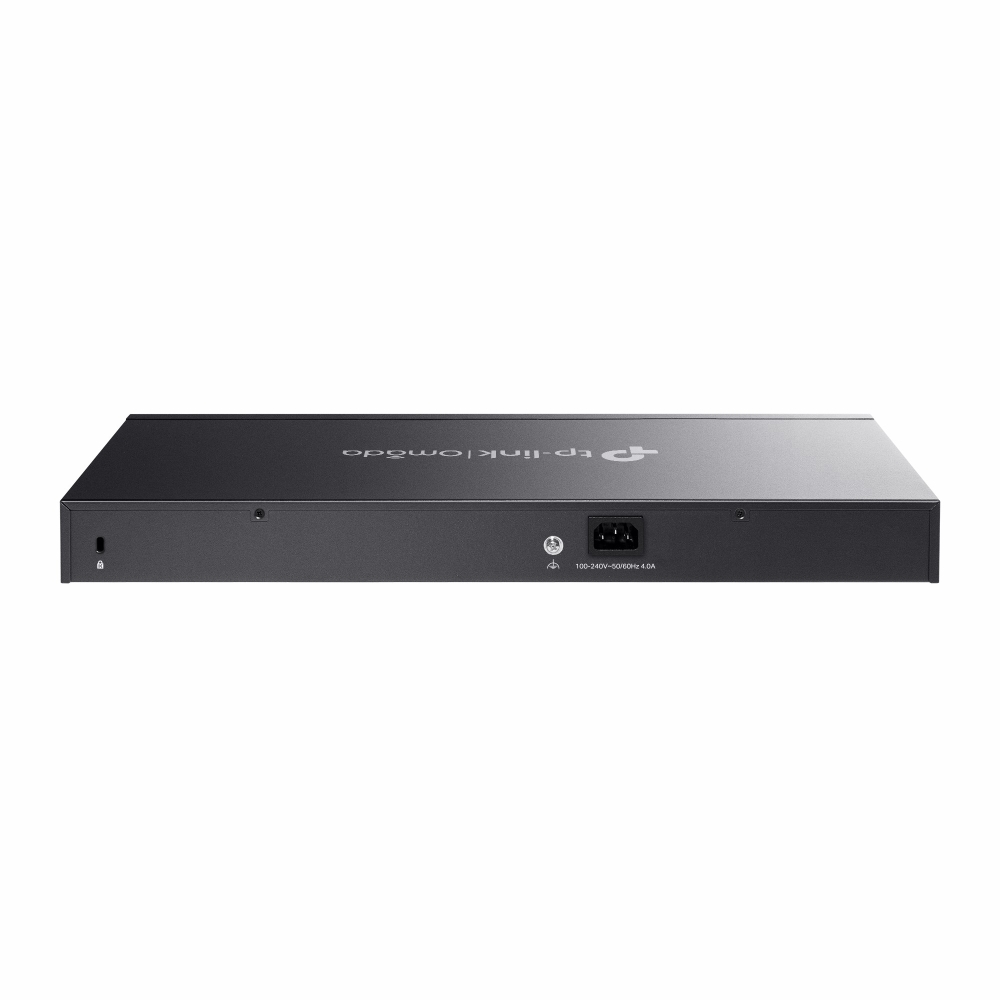

The switch is designed for 19-inch rack mounting and is delivered with a rack mounting kit. Installation is done using the provided brackets and screws. The integrated power supply (AC input socket, 100–240 V, 50/60 Hz) is built into the device. The delivery also includes a network cable, rubber feet, and an installation manual. The devices are intended for indoor use, with an operating temperature of -5 to 50 °C and relative humidity of 10 to 90 %.

Operational Advantages

Centralized cloud management reduces administrative effort, especially with multiple locations. Automatic loop prevention and IGMP Snooping enhance network security and efficiency. The PoE auto-recovery function enables automatic restoration of power supply in case of failures. The low noise level (max. 41.5 dB) and integrated two fans ensure efficient cooling. The MTBF (mean time between failures) is 310550.7 hours, indicating high reliability. The firmware is upgradable, allowing security and function updates. Surge protection (±6 kV) protects the ports from voltage spikes.

Certifications

The device meets compliance requirements according to CE, FCC, and RoHS, ensuring safety and environmental compatibility. Power supply is via AC power supply, included in the delivery. The maximum power consumption is 289.7 W (at 250 W PoE load). Heat dissipation is 984.88 BTU/h. The flash memory size is 64 MB. The operating temperature range is -5 °C to 50 °C, and the storage temperature range is -40 °C to 70 °C. The relative humidity during operation is 10–90 %, and during storage 5–90 %.

Delivery Contents

The device is delivered with the following components: network cable, rack mounting kit, rubber feet, screws, and installation manual. The user manual is also included in the delivery. Power supply is via the integrated power supply with Schuko plug (Type F CEE 7/4).

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Data transmission
Switching capacity	40 Gbit/s
Forwarding rate	29.76 Mpps
MAC address table	8000 entries
Jumbo frames	15000
Packet buffer memory	4 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
Stackable
LED indicators
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support
Web-based management
Cloud-managed
Unified static configuration
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs	32
10G support
Zero Touch Provisioning (ZTP)
Port mirroring
Flow control support
Link aggregation
Auto MDI/MDI-X
Auto-negotiation
Fast leave
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	984.88 BTU/h
Packaging content
Cables included	AC
User guide
Rack mount kit
Packaging data
Package type	Box
Performance
Flash memory	64 MB
Noise level	41.5 dB
Mean time between failures (MTBF)	310550.7 h
Firmware upgradeable
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
SFP module slots quantity	2
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	289.7 W
Surge protection voltage	6 kV
Power supply included
Surge protection
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE)
Security
DHCP features	DHCP client
Queue scheduling algorithms	Weighted Round Robin (WRR)
IGMP snooping
Loop protection
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
