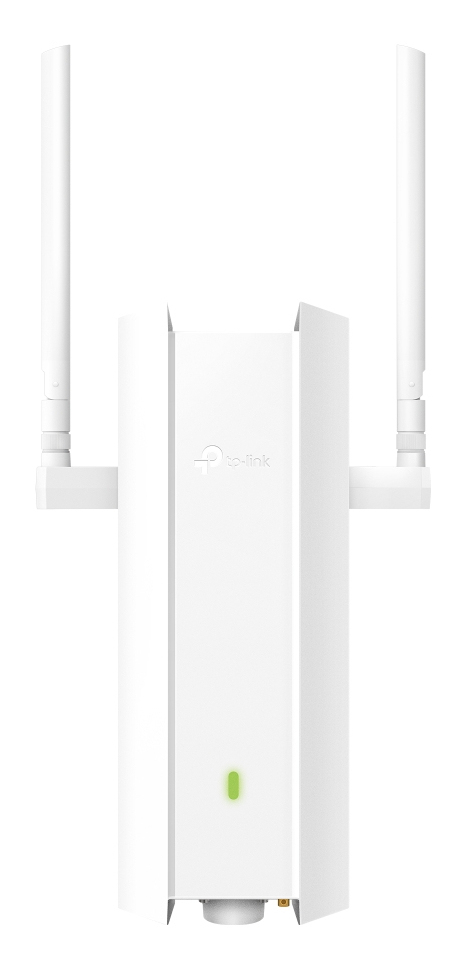

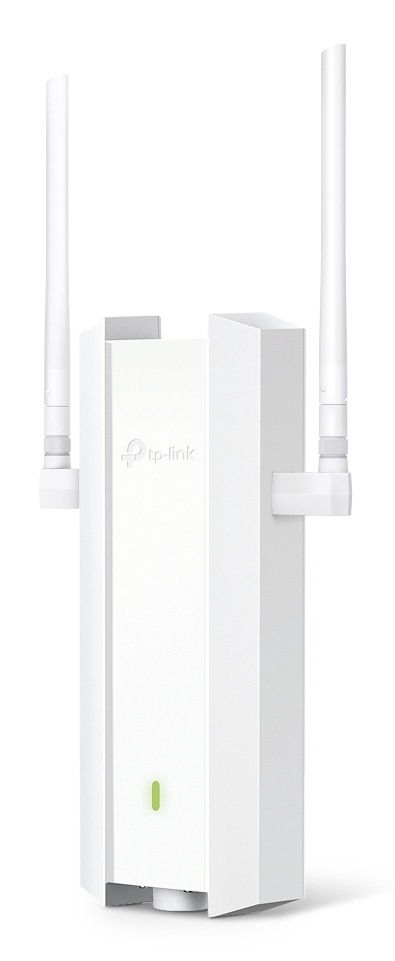

TP-Link EAP625-Outdoor HD AX1800 In/Outdoor Dual-Band Wi-Fi 6 content_copy

High-performance Wi-Fi 6 The EAP625-Outdoor HD is based on the latest WiFi 6 technologies such as MU-MIMO and 1024 QAM and offers speeds of up to 1.8 Gbps. Two detachable external antennas for 5 GHz and 2.4 GHz ensure optimal coverage and more flexibility for your network. Ideal for high-density outdoor scenesOFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open spaces.Equipped with an IP67 weatherproof housing, the EAP625-Outdoor HD can withstand the most extreme environments.

Highlights

• Up to 1.8 Gbit/s WiFi 6 speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
• Supports WiFi 6 technologies such as 1024-QAM, OFDMA, etc.
• High-density connectivity for up to 1,000 clients
• Long range with high-performance amplifier and 2x detachable antennas
• Weatherproof IP67 housing for various outdoor environments
• Advanced features: Centralized management, Omada Mesh and seamless roaming
• PoE+ powered: Supports 802.3at PoE (adapter not included)

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications equipment, Small IT and telecommunications equipment B2C

Specifications

• Protection class: IP67 - Dustproof, protection against temporary submersion
• Operating temperature max: 40 °C
• Operating temperature min: 0 °C
• Application area: Outdoor

Shipping

• WEEE: 85565951

Connections

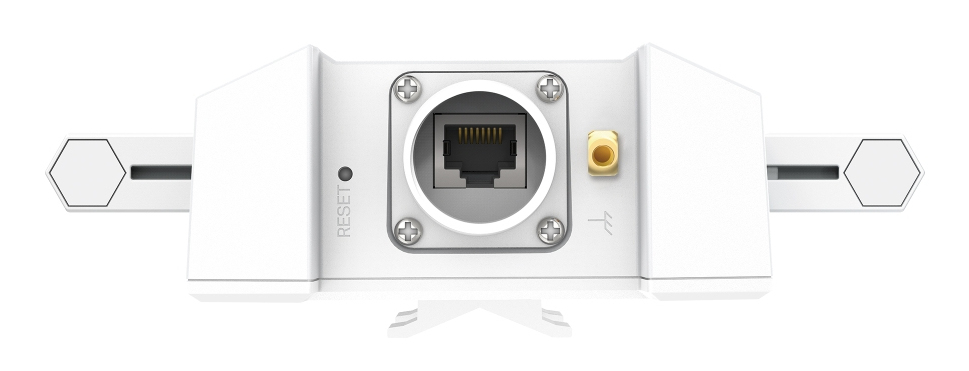

• Connection: RJ45
• Number of antenna connections: 2

Power supply

• PoE standard: PoE+ - 802.3at
• Power supply unit: optional
• Mains
• Power consumption during operation: 12.5 W

Antenna

• Antenna technology: MIMO
• Reception standard: WLAN
• Gain: 5 dbi
• Mounting type: Wall

Data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6

Basic properties

• Color: White
• Height: 56.9 mm
• Length/depth: 182.2 mm
• Width: 280.4 mm
• Weight: 886 g
• icecat Import: 2024/02/06

Scope of delivery

• TP-Link EAP625-OUTDOOR HD WLAN Access Point

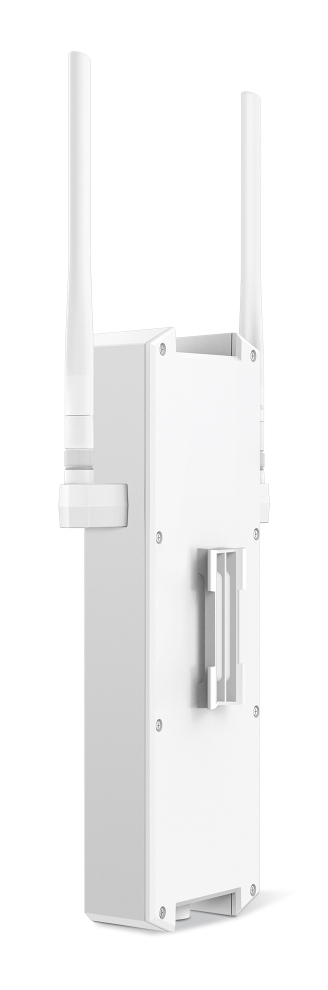

• Mast/wall mounting kit

Antenna
Antenna type	External
Antennas quantity	2
Design
Placement	Pole, Wall
Product colour	White
International Protection (IP) code	IP67
Reset button
LED indicators
Features
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Number of users	1020 user(s)
2.4 GHz
5 GHz
6 GHz
Packaging content
Quantity per pack	1 pc(s)
Power
Power over Ethernet (PoE)
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
IP address filtering
Weight & dimensions
Width	280.4 mm
Depth	182.2 mm
Height	56.9 mm

---
