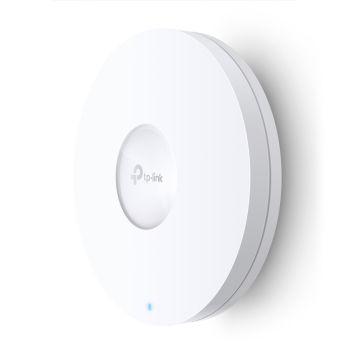

TP-Link EAP620 HD 2.4 & 5 GHz AX1800 WLAN Wi-Fi 6 Access Point
|
-34% 112,22 EUR 170,05 EUR |
|
|
( 133,54 EUR incl. VAT ) ≈ £94.49 | ≈ $126.02 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1971854 |
| Mfg Part No: | EAP620 HD |
| UPC/EAN: | 4897098687765 |
| Weight: | 0.8805 kg |
| Type: | WRLS |
Further Wireless DSL Router from TP-LinkFurther products in category Wireless DSL Router
All products of TP-Link
Product information for TP-Link EAP620 HD:
The TP-Link EAP620 HD AX1800 Wireless Dual-Band Access Point enables speeds of up to 1,775 Mbit/s and is therefore ideal for using multiple devices at the same time. With the Omada app and cloud access, the EAP620 HD offers centralized network management from anywhere, anytime. Thanks to seamless Wi-Fi roaming, video and voice conferences can also continue without any problems as you move back and forth between access points.
Highlights
- Ultra-fast Wi-Fi 6 speeds: Simultaneous 574 Mbit/s in 2.4 GHz and 1201 Mbit/s in 5 GHz WLAN result in a total bandwidth of 1775 Mbit/s
- Strong connection with high device density: 4x increased capacity at the same time Connecting end devices
- Integrated in the Omada SDN: Zero-touch provisioning (ZTP), centralized cloud management and intelligent network monitoring
- Centralized management: Cloud access and the Omada app enable very simple and convenient setup and management
- The gigabit network connection allows the entire WLAN bandwidth to be passed on to the network without creating a data jam at the access point
- Seamless WLAN roaming: Even during video and voice chats, no switching between the access points is noticeable
- Power supply via power supply (12 V/1.5 A DC ), PoE+ or 48 V Passive PoE enable simple, flexible installation
- Secure guest network: Various authentication methods such as SMS, Facebook, voucher and user authentication, a variety of WLAN security functions and the WPA3 standard are offered highest security
- access point
- ear category (ElektroG): relevant, category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C
- operating temperature max: 40 °C
- operating temperature min: 0 °C
- Area of application: Indoor
- Connection: RJ45
- PoE standard: PoE+ - 802.3at
- Power supply: external
- passive
- Antenna technology: MIMO
- Reception standard: WLAN
- Mounting type: Wall
- WLAN Standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
- Color: White
- Height: 33.6 mm
- Length/Depth: 160 mm
- Width: 160 mm > Scope of delivery
- TP-Link EAP620 HD 2.4 < 5 GHz AX1800 WLAN Wi-Fi 6 access point
- Power supply
- Ceiling and wall mounting kit
- Installation instructions
product type
specifications
Connections
Power supply
Antenna
Data transmission
Basic properties
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | |
| LED indicators | |
| Features | |
| Maximum data transfer rate | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 1020 user(s) |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| Transmitting power (CE) | 20/23 dBm |
| Transmitting power (FCC) | 23 dBm |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| Automatic channel selection | |
| Automatic channel scanning | |
| MIMO | |
| VLAN support | |
| Rate limiting | |
| Flow control support | |
| Band steering | |
| Airtime Fairness (ATF) | |
| Quality of Service (QoS) support | |
| BeamForming | |
| Management features | |
| Web-based management | |
| Syslog | |
| Firmware upgradeable | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | |
| Power | |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering | |
| Remote Authentication Dial-In User Service (RADIUS) | |
| Access Control List (ACL) | |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33 mm |
