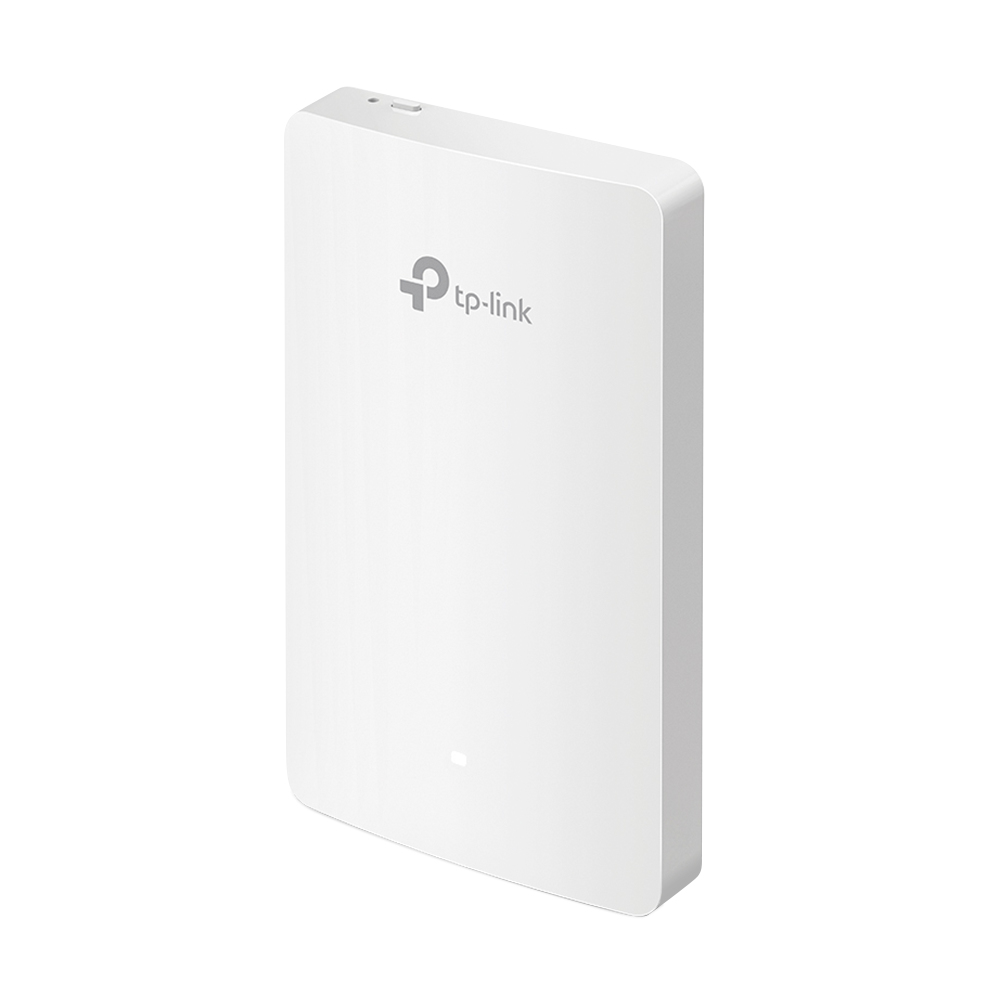

TP-LINK WLAN AC1200 Access Point Dualband EAP235-Wall
|
-23% 55,58 EUR 71,77 EUR |
|
|
( 66,14 EUR incl. VAT ) ≈ £46.80 | ≈ $62.42 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 17. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 349601 |
| Mfg Part No: | EAP235-WALL |
| UPC/EAN: | 6935364088972 |
| Weight: | 0.37 kg |
| Type: | WRLS |
Further Wireless DSL Router from TP-LinkFurther products in category Wireless DSL Router
All products of TP-Link
Product information for TP-Link EAP235-WALL:
The TP-Link EAP235-Wall, with its dual-band WiFi and MU-MIMO, is ideal for environments with a high density of end devices, such as: B. Hotels or offices. It supports PoE and offers centralized network management with Omada.
Highlights
- Dual-band WiFi: Simultaneous 300 Mbit/s in 2.4 GHz and 867 Mbit/s in 5 GHz ensure fast WiFi speed with MU-MIMO

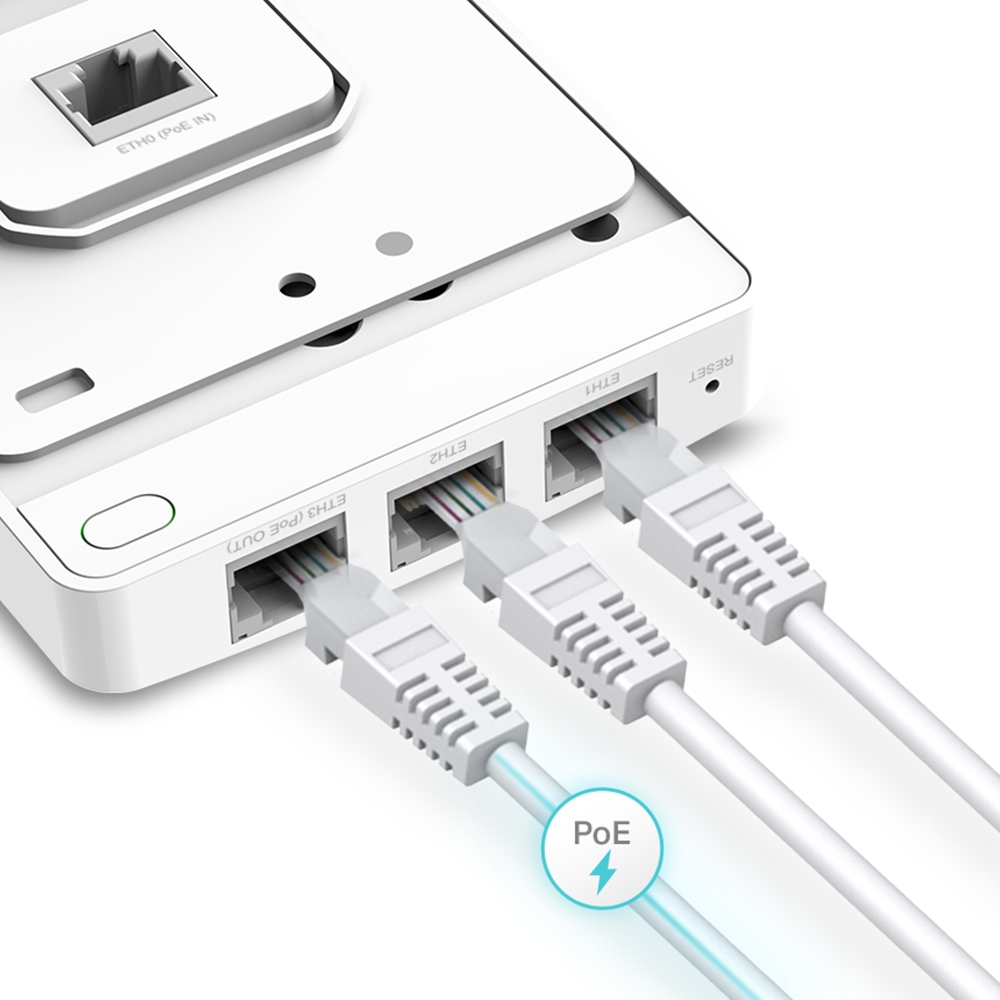

- 4 Gigabit LAN ports (1× uplink, 3× downlink), a downlink port with PoE pass-through support, which allows PoE devices such as IP phones to be powered
- Integrated into the Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring

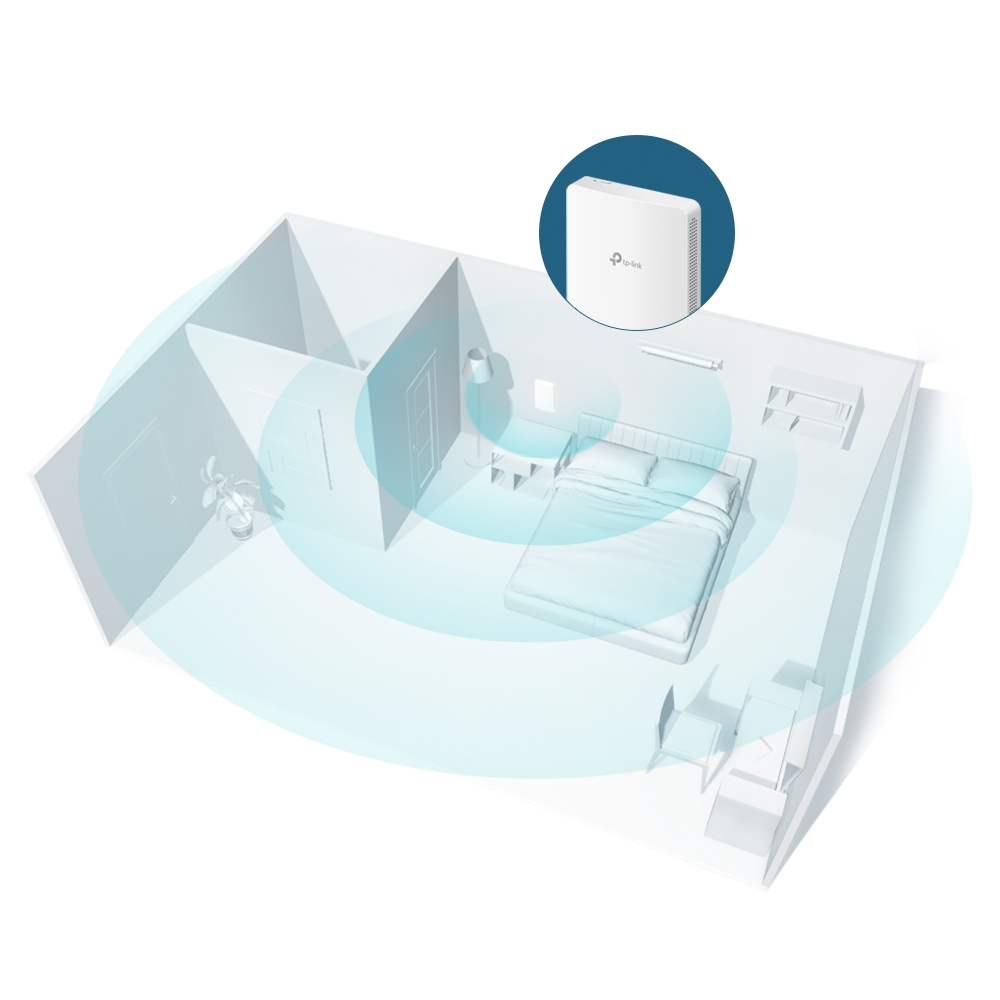

- Ultra slim and unobtrusive Designed for hotel rooms, hospitals, offices, dormitories, and many other environments
- Easy installation and PoE support (802.3af/802.3at PoE)
- Secured guest network with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and numerous WiFi options Security technologies
- Optimal network performance with MU-MIMO, band steering and beamforming technologies
- Suitable for wall mounting
- Access point
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small devices of IT and telecommunications technology B2C
- Operating temperature max: 40 °C
- Operating temperature min: 0 °C
- Display diagonal cm: 0 cm
- PoE standard: PoE - 802.3af
- Antenna technology: MIMO
- Reception standard: WLAN
- WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
- Color: White
- Height: 146 mm
- Length/ Depth: 20 mm
- Width: 86 mm
- EAP235-Wall Omada AC1200 MU-MIMO Gigabit WLAN access point for wall mounting
- Installation instructions
- Mounting screws
Product type
Specifications
Display
Power supply
Antenna
Data transmission
Basic properties
Scope of delivery
| Antenna | |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Design | |
| Placement | Wall |
| Product colour | White |
| LED indicators | LAN, Power, Status, WAN, WLAN |
| Cable lock slot | |
| Reset button | |
| Features | |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO type | Multi User MIMO |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Transmitting power (CE) | 20 - 23 dBm |
| Transmitting power (FCC) | 21 dBm |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| Automatic channel selection | |
| Automatic channel scanning | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| VLAN support | |
| Rate limiting | |
| Wireless isolation | |
| Band steering | |
| Quality of Service (QoS) support | |
| BeamForming | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Web-based management | |
| Syslog | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | |
| Quick start guide | |
| Packaging data | |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 33 mm |
| Package weight | 300 g |
| Package type | Box |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| Power consumption (typical) | 24.4 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Universal Plug and Play (UPnP) | |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| MAC address filtering | |
| Remote Authentication Dial-In User Service (RADIUS) | |
| Access Control List (ACL) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
