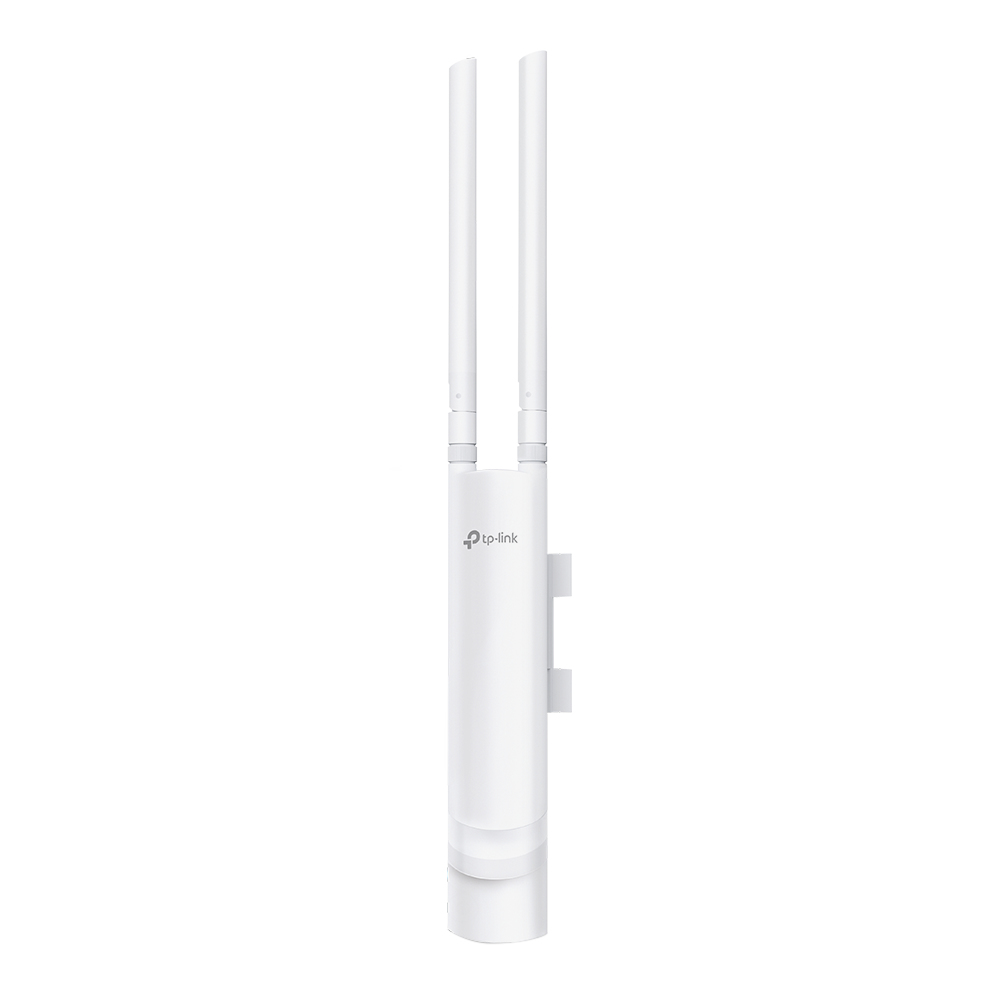

TP-LINK WLAN AC1200 Access Point Dualband EAP225-Outdoor content_copy

With special design of antennas, housing, power options and installation methods, EAP225-Outdoor can be perfectly applied to various indoor and outdoor scenarios.
With high transmission power and two high-gain omnidirectional antennas, the EAP225-Outdoor offers good WiFi coverage outdoors within a radius of up to 200 m.
Thanks to its IP65 certification, the durable housing protects your access point from the elements.

Highlights

• WLAN with up to 1200 Mbit/s and 2x2 MIMO
• High transmission power and sensitive antennas for the best possible coverage
• Secure access control and simple guest authentication
• Facebook WLAN and SMS authentication to simplify your business
• Supports passive PoE for simple , cost-effective installation without laying new cables
• Robust, weatherproof housing
• Repeater mode available from firmware version 1.3.0

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Operating temperature max: 40 °C
• Operating temperature min: 0 °C

Power supply

• PoE standard: PoE - 802.3af

Antenna

• Antenna technology: MIMO
• Reception standard: WLAN

Data transmission

• WLAN Standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4

Basic features

• Color: White
• Height: 215 mm
• Length/Depth: 27 mm
• Width: 46 mm

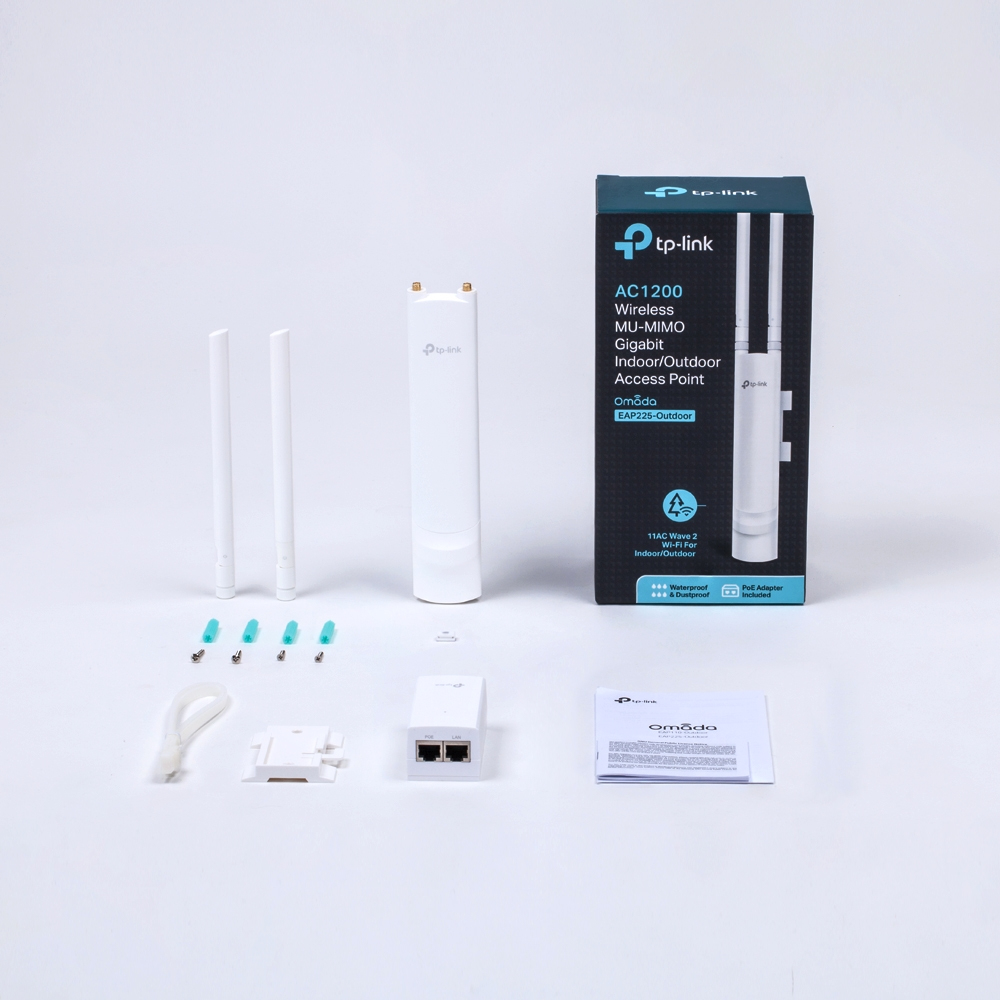

Scope of delivery

• TP-Link EAP225 Outdoor
• power supply
• mounting kits
• installation instructions

Antenna
Antenna type	External
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	4 dBi
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Design

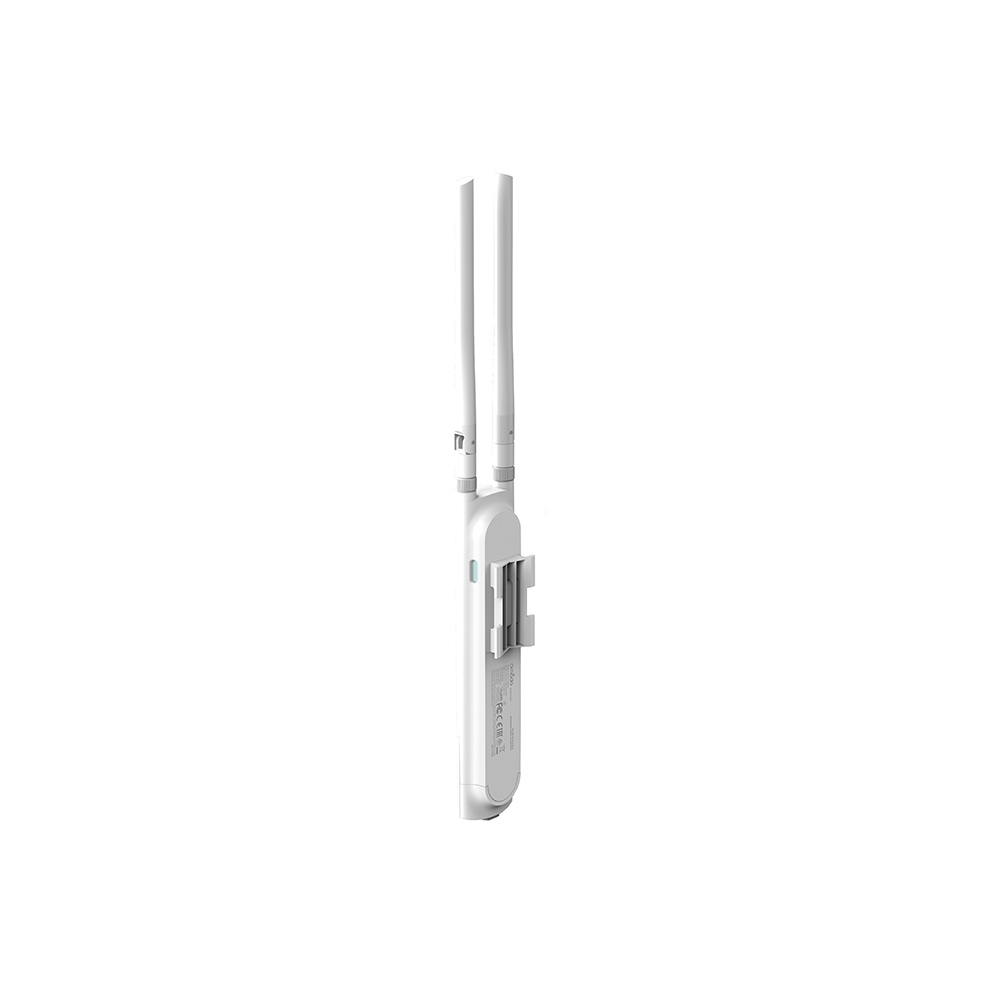

Placement	Pole, Wall
Product colour	White
International Protection (IP) code	IP65
Reset button
Features
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO type	Multi User MIMO
Virtual LAN features	VLAN mapping
Transmitting power (CE)	27 dBm
Transmitting power (FCC)	22 dBm
2.4 GHz
5 GHz
6 GHz
MIMO
Wi-Fi Multimedia (WMM)/(WME)
VLAN support
Rate limiting
Band steering
Airtime Fairness (ATF)
Quality of Service (QoS) support
BeamForming
Logistics data
Harmonized System (HS) code	85176990
Management features
Web-based management
Syslog
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	1 pc(s)
AC adapter included
Mounting kit
Quick start guide
Packaging data
Package width	140 mm
Package depth	270 mm
Package height	100 mm
Package weight	640 g
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ports & interfaces

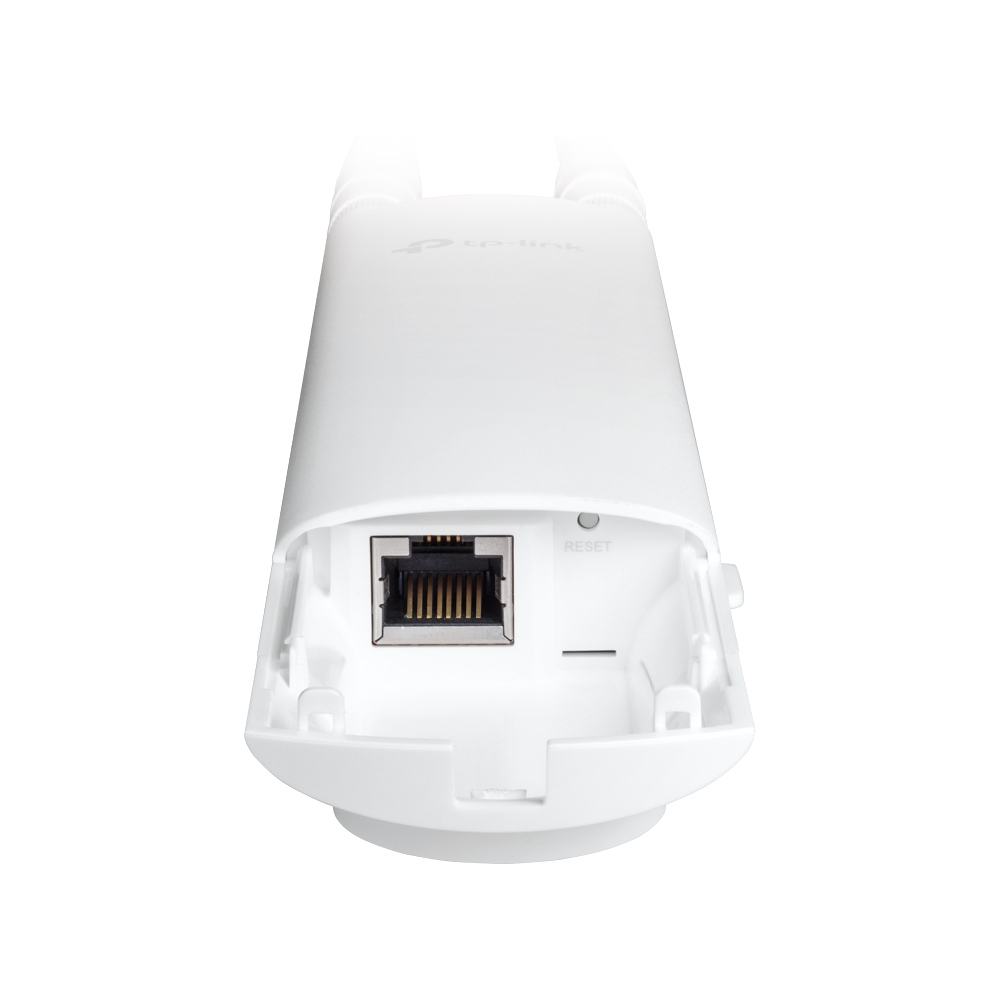

Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	24 V
Power consumption (typical)	10.5 W
Power over Ethernet (PoE)
Security
Security algorithms	802.1x RADIUS
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
MAC address filtering
Access Control List (ACL)
Sustainability
Sustainability compliance
Weight & dimensions
Width	215 mm
Depth	46 mm
Height	27 mm

---
