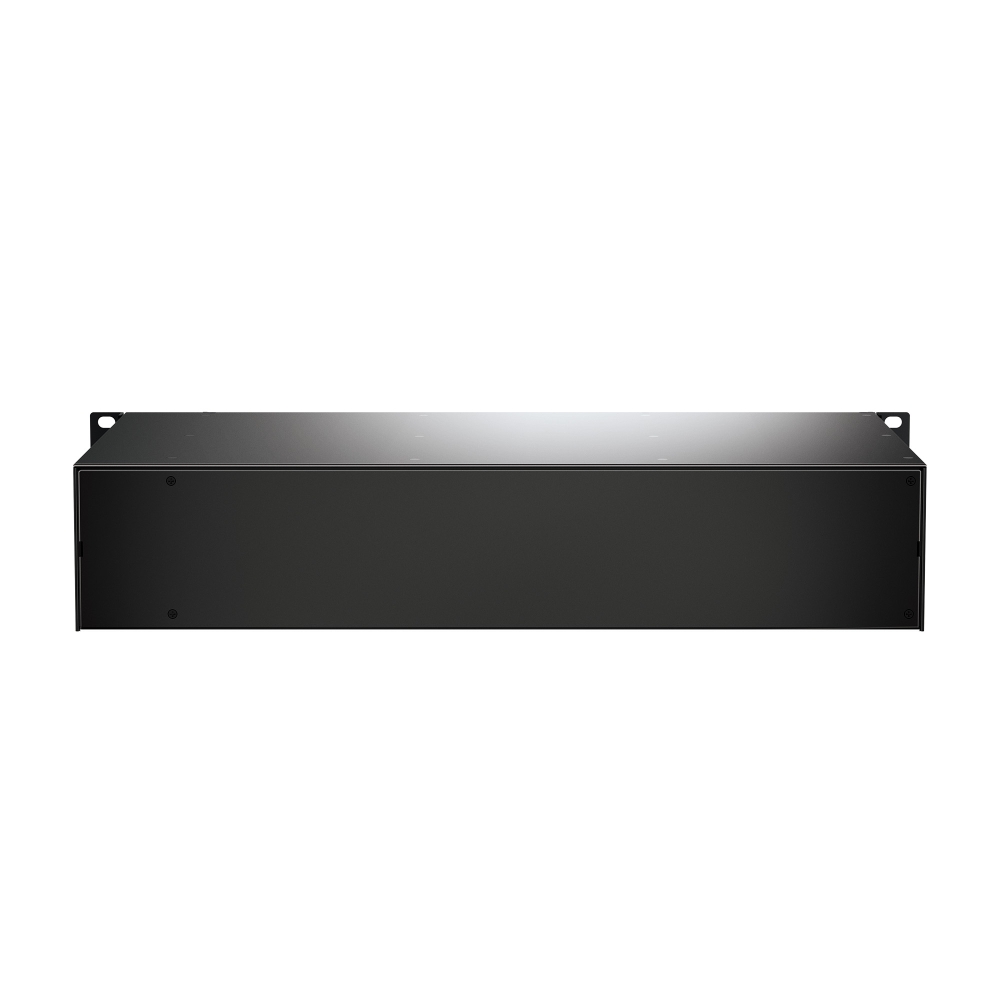

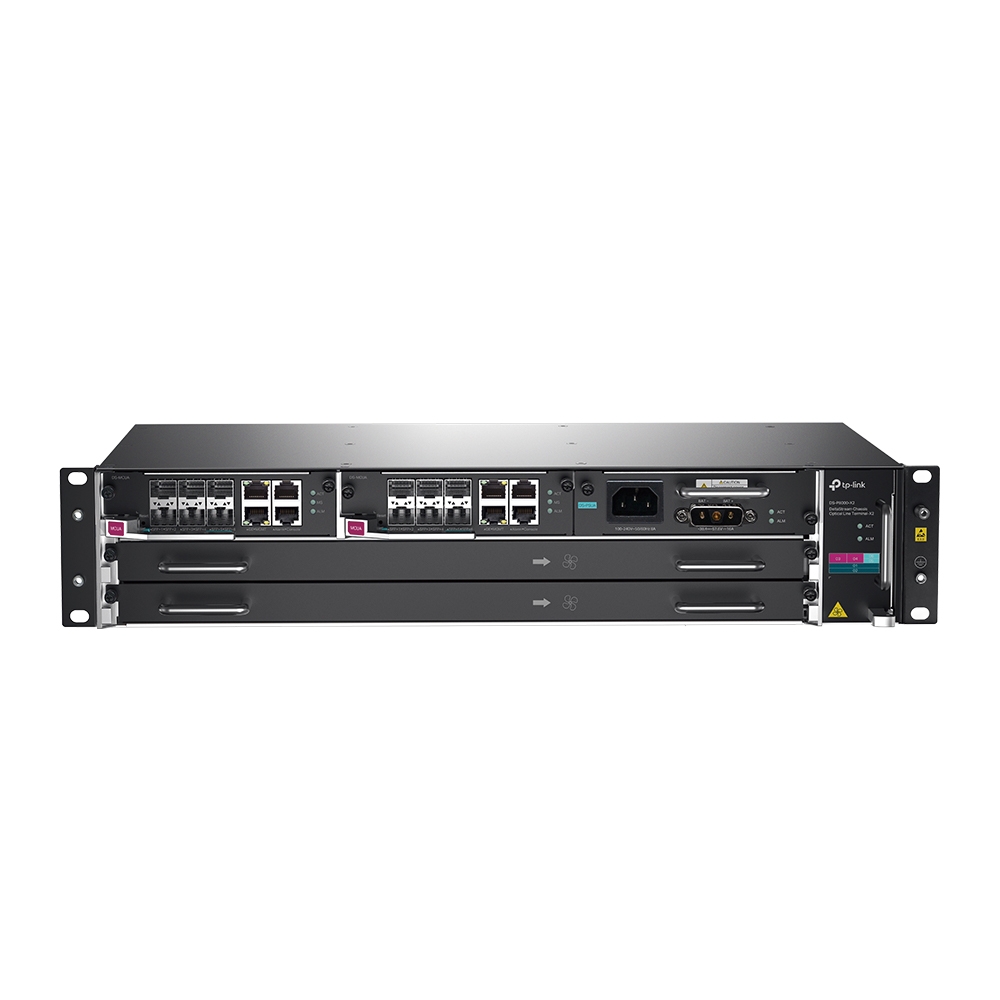

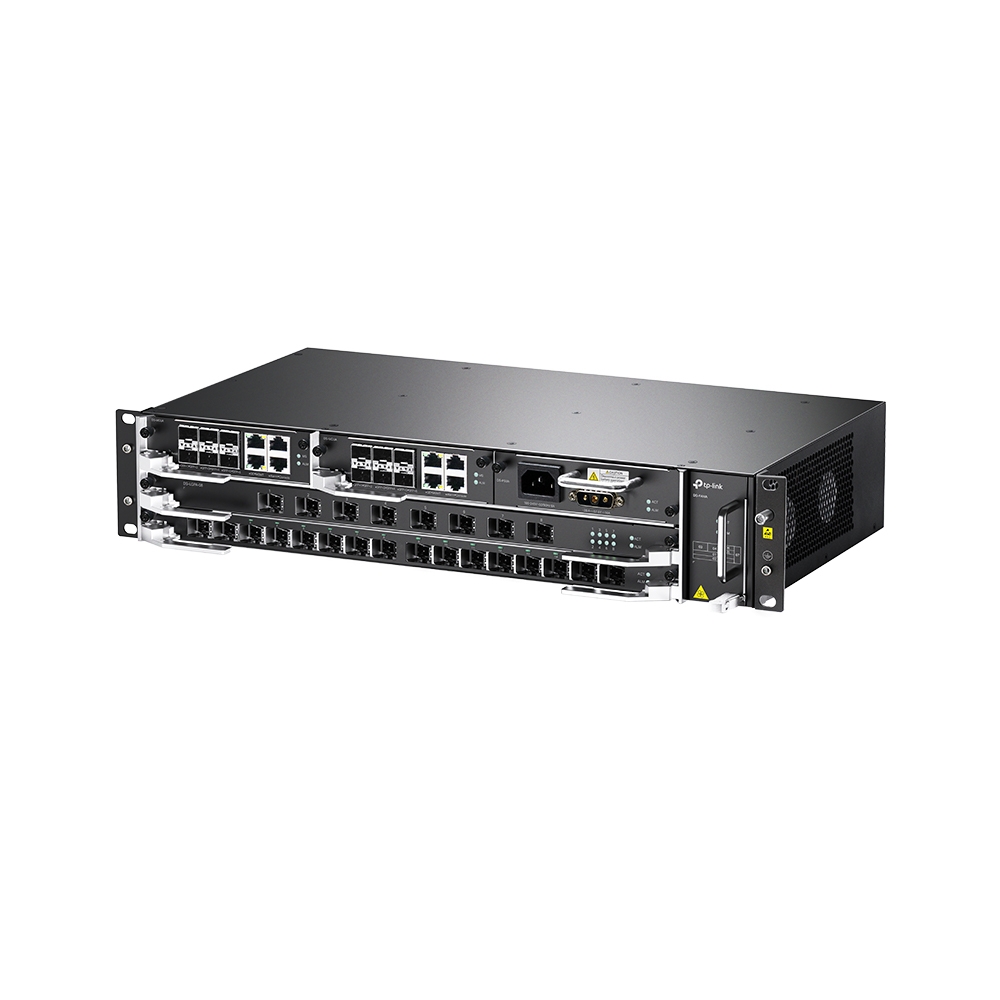

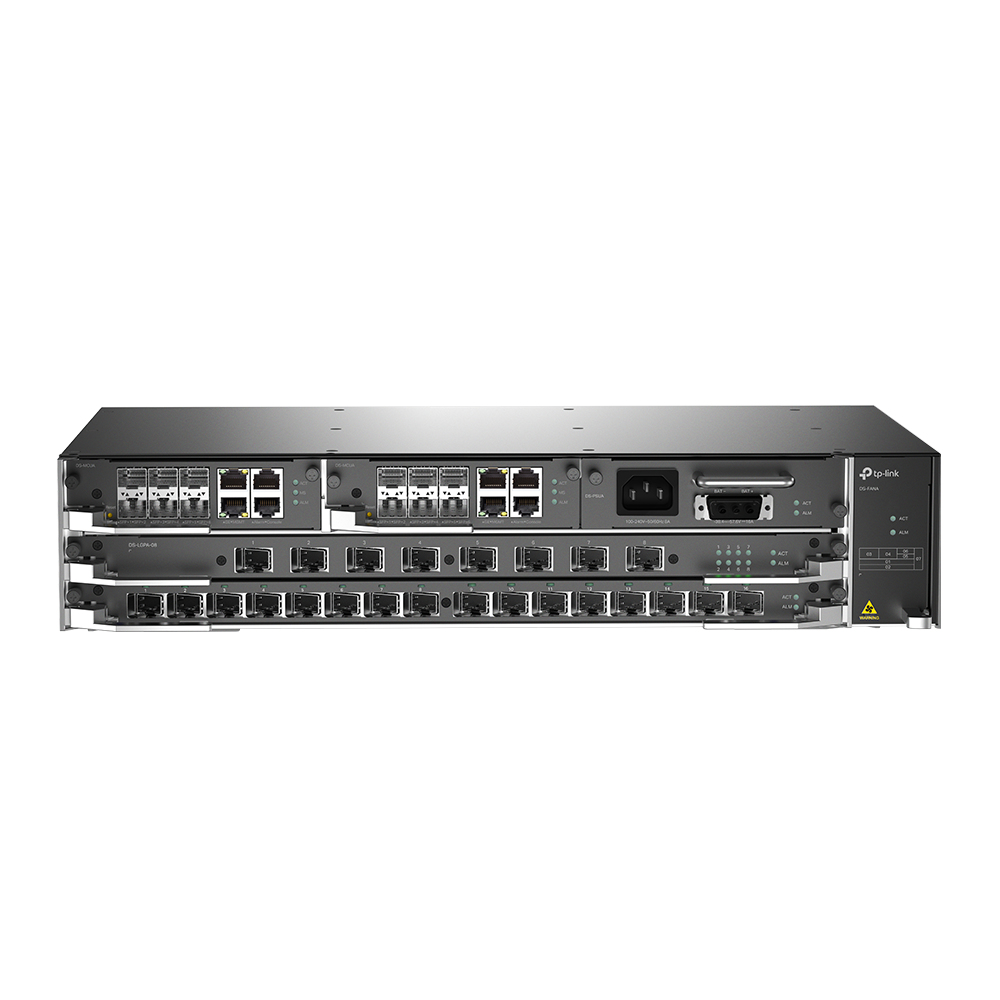

TP-Link DS-P8000-X2 2U Chassis OLT
|
-10% 4.083,78 EUR 4.559,05 EUR |
|
|
( 4.859,70 EUR incl. VAT ) ≈ £3,438.54 | ≈ $4,586.08 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2086453 |
| Mfg Part No: | DS-P8000-X2 |
| UPC/EAN: | 4897098689363 |
| Weight: | 11.8 kg |
| Type: | CPNT |
Product information for TP-Link DS-P8000-X2:
The DS-P8000-X2 is a DeltaStream Chassis Optical Line Terminal with full L2 and advanced L3 capabilities designed to meet a variety of business needs. The chassis OLT supports a higher number of ONUs and enables flexible upgrade from GPON to XGSPON subscriber scale by replacing the service board. The dual main control unit and dual power supply design further enhances the stability of the OLT network.
Highlights
- Dual Main Control Unit: Service switches automatically and without interruption when an error occurs
- 2× service boards, support up to 32× GPON ports or 32× XGS-PON< combo ports
- High-speed uplink ports : Provides high-speed connection with 6× 10GE SFP+ ports
- Dual Power Supplies: Pluggable AC+DC power supply
- Centralized management via DeltaStream PON Management System(DPMS), SNMP, CLI, and WEB UI
- Fulfill full L2 and advanced L3 functions the requirements of numerous business needs
- 1 x RJ45 management, 1 x RJ45 console and 1x alarm port
- network component
- ear category (ElektroG): relevant, category 5: small devices < 50 cm (all pages), small devices B2C
- Area of application: Indoor
- Connection types: RJ45, SFP+
- Color: Black
- TP-Link DS-P8000-X2 2U chassis OLT
Product type
Specifications
Connections
Basic properties
Scope of delivery
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Features | |
| Switching capacity | 200 Gbit/s |
| Switch layer | L2/L3 |
| Multicast Listener Discovery (MLD) snooping | Y |
| Static route | |
| DHCP relay | |
| Multicast support | |
| IGMP snooping | |
| Quality of Service (QoS) support | |
| Access Control List (ACL) | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Ports & interfaces | |
| Networking standards | IEEE 802.1p |
| Ethernet LAN (RJ-45) ports | 8 |
| GPON ports quantity | 32 |
| Power | |
| AC input voltage | 100 - 240 V |
| DC voltage range | -38.4 - -57.6 V |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 446 mm |
| Depth | 271.3 mm |
| Height | 88 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-Link DS-P8000-X2 2U Chassis OLT?
The article TP-Link DS-P8000-X2 2U Chassis OLT is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link DS-P8000-X2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link DS-P8000-X2 2U Chassis OLT always at the best possible price. We can give you a discount of 2% on TP-Link DS-P8000-X2 2U Chassis OLT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
