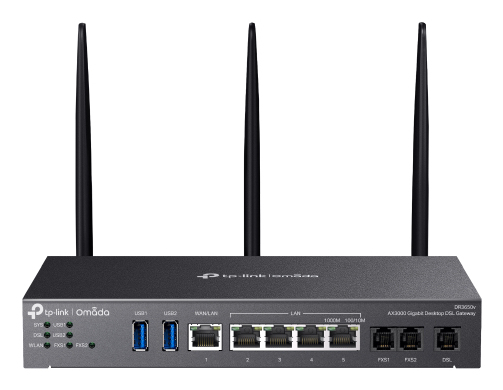

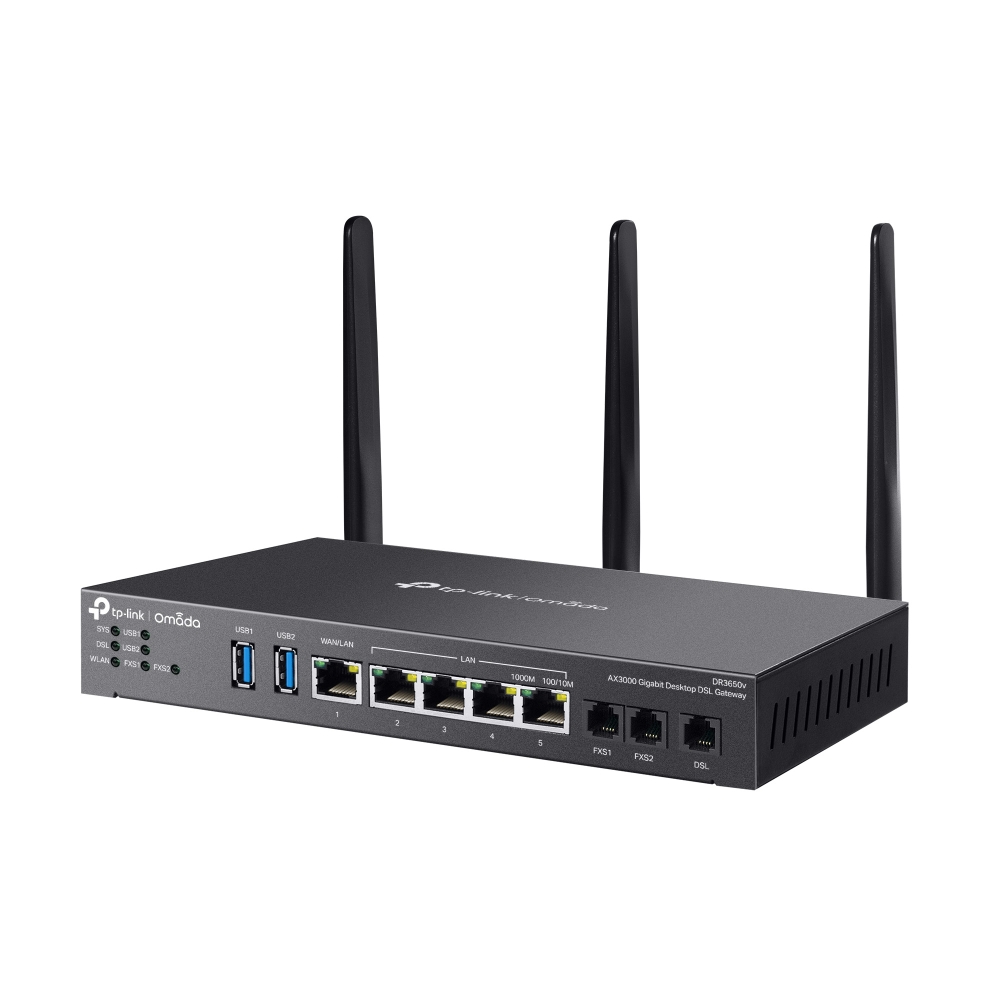

TP-LINK Omada Desktop DSL Gateway AX3000 Gigabit WAN/8xLAN DR3650v
|
220,93 EUR |
|
|
( 262,91 EUR incl. VAT ) ≈ £186.02 | ≈ $248.10 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 542201 |
| Mfg Part No: | DR3650v |
| UPC/EAN: | 8885020626759 |
| Weight: | 1.79 kg |
| Type: | WRLS |
Further Wireless DSL Router from TP-LinkFurther products in category Wireless DSL Router
All products of TP-Link
Product information for TP-Link DR3650v:
Der Omada DR3650v kombiniert ultraschnelles Wi-Fi 6 mit leistungsstarkem Super-VDSL und sorgt für stabile, schnelle Verbindungen im Arbeitsalltag. Mit Gigabit-Ports, integrierter Telefonie und flexiblen Anschlussmöglichkeiten ist er die ideale All-in-One-Lösung für kleine und mittelständische Unternehmen. Dank Cloud-Management, VPN-Support und intelligenter Lastverteilung behalten Sie Ihr Netzwerk jederzeit sicher und effizient im Griff.
Highlights
- Unterstützt Telekom, O2, 1&1 Business-DSL, nicht Vodafone und 1&1 DSL für Zuhause
- AX3000 Wi-Fi 6 mit 2402 Mbit/s auf 5 GHz und 574 Mbit/s auf 2,4 GHz
- VDSL2 35b: Unterstützt 350 Mbit/s DSL-Zugang
- VDSL2-/ADSL2+-/ADSL2-/ADSL-Kompatibilität
- Zentrales Cloud-Management
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Lastverteilung zwischen DSL- und Ethernet-WAN
- Omada Mesh-Technologie

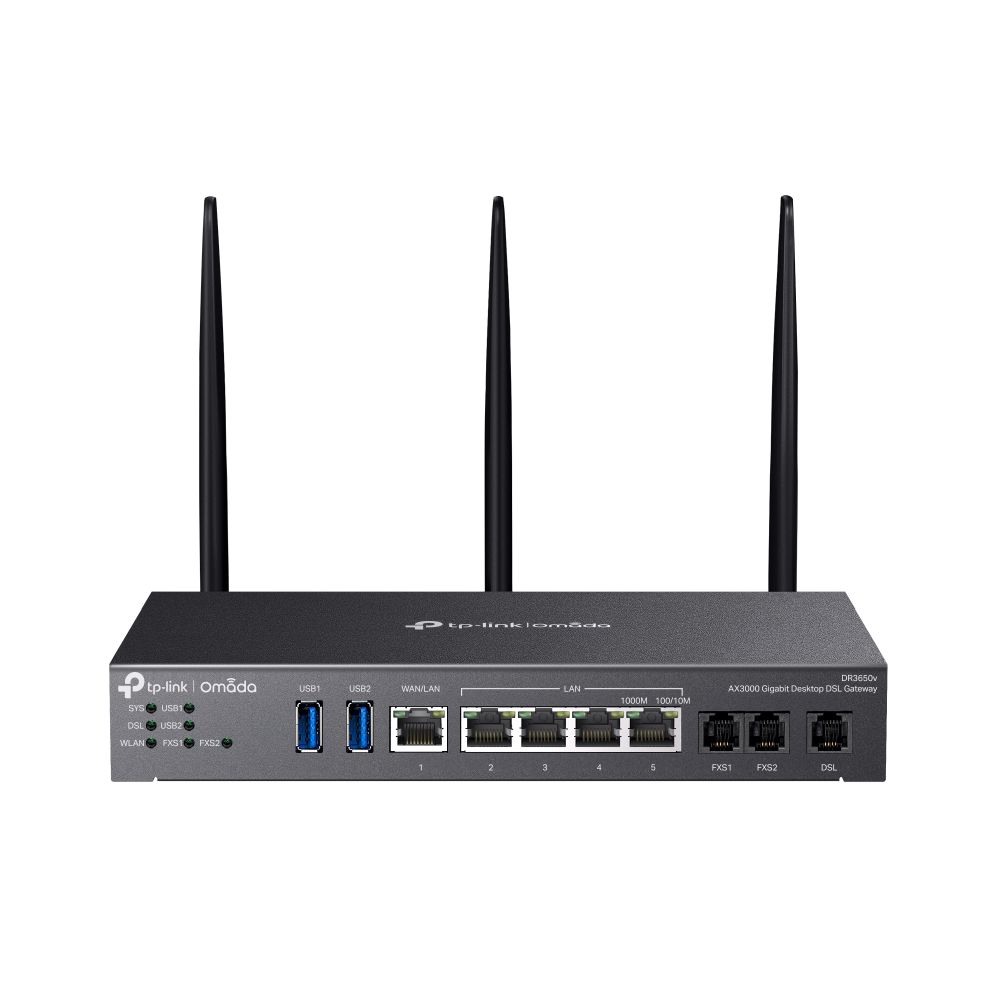

- 3x RJ11-Ports (2x FXS, 1x DSL) & 5x RJ45-Gigabit-Ports & 2x USB 3.0-Ports

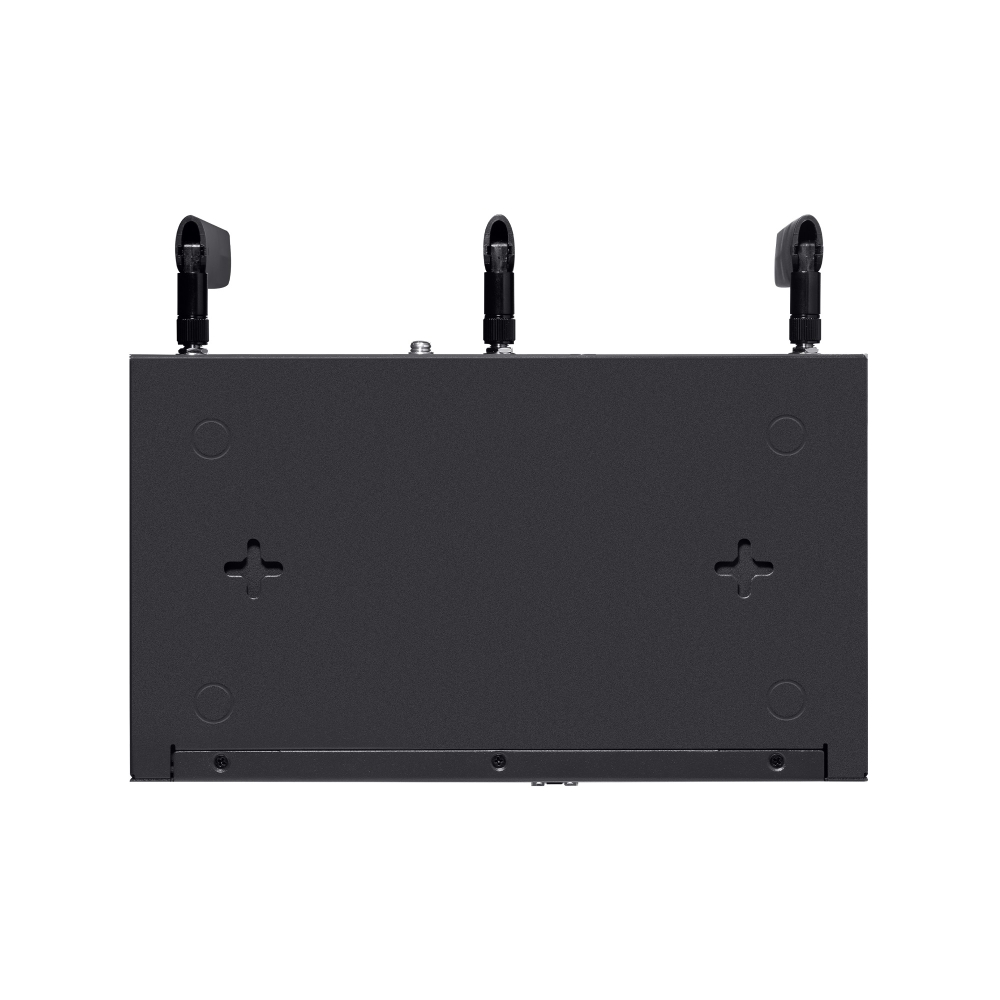

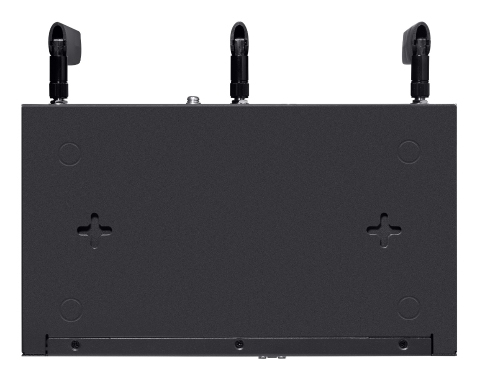

- Desktop-/Wandmontage
Produkttyp
- Gateway
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Einsatzgebiet: Indoor
Versand
- WEEE: 85565951
Anschlüsse
- Kupferports (RJ45) gesamt: 5
- Anschlüsse Highlights: 3x RJ11-Anschlüsse (2x FXS, 1x DSL); 2x USB 3.0-Anschlüsse
Funktionen
- wandmontagefähig
Stromversorgung
- Netzteil: extern
Grundeigenschaften
- Farbe: Schwarz
- Höhe: 35 mm
- Länge/Tiefe: 131 mm
- Breite: 226 mm
Lieferumfang
- Omada by TP-Link DR3650v AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- Netzadapter
- Ethernet-Kabel
- Telefonkabel
- Schnellinstallationsanleitung
| Antenna | |
| Antenna design | External |
| Antenna gain level (max) | 4.5 dBi |
| Antennas quantity | 3 |
| Detachable antenna(s) | |
| Design | |
| Product colour | Black |
| LED indicators | DSL, LAN, USB, WLAN |
| Product type | Tabletop router |
| Wall mountable | |
| Indication light | |
| DSL features | |
| ADSL | |
| ADSL2 | |
| ADSL2+ | |
| VDSL2 | |
| Features | |
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| Mean time between failures (MTBF) | 671034 h |
| Management features | |
| Web-based management | |
| Quality of Service (QoS) support | |
| Reset button | |
| MU-MIMO technology | |
| Network | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| VPN support | IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| Ethernet LAN | |
| Port triggering | |
| Load balancing system | |
| Dynamic DNS (DDNS) | |
| Policy-based routing | |
| Static route | |
| Built-in FTP server | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Cables included | LAN (RJ-45), Phone |
| AC adapter included | |
| Antenna included | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 3 |
| USB port | |
| DC-in jack | |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3.3 A |
| Protocols | |
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
| DHCP client | |
| DHCP server | |
| Universal Plug and Play (UPnP) | |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| NAT functionality | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Guest access | |
| Access Control List (ACL) | |
| URL filtering | |
| System event log | |
| DMZ support | |
| Network address translation (NAT) | |
| WAN connection | |
| WAN connection type | RJ-45 |
| Ethernet WAN | |
| DSL WAN | |
| SIM card slot | |
| 3G/4G USB modem compatibility | |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 131.2 mm |
| Height | 35 mm |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
