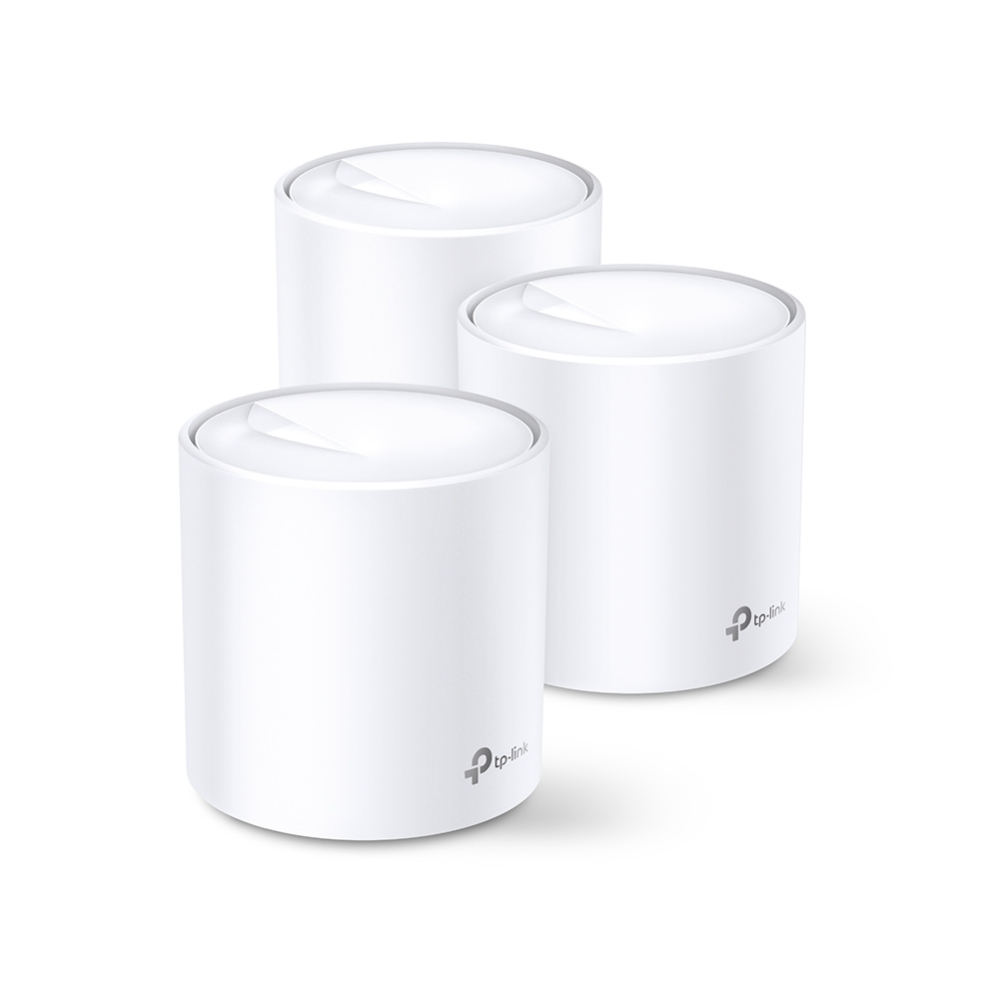

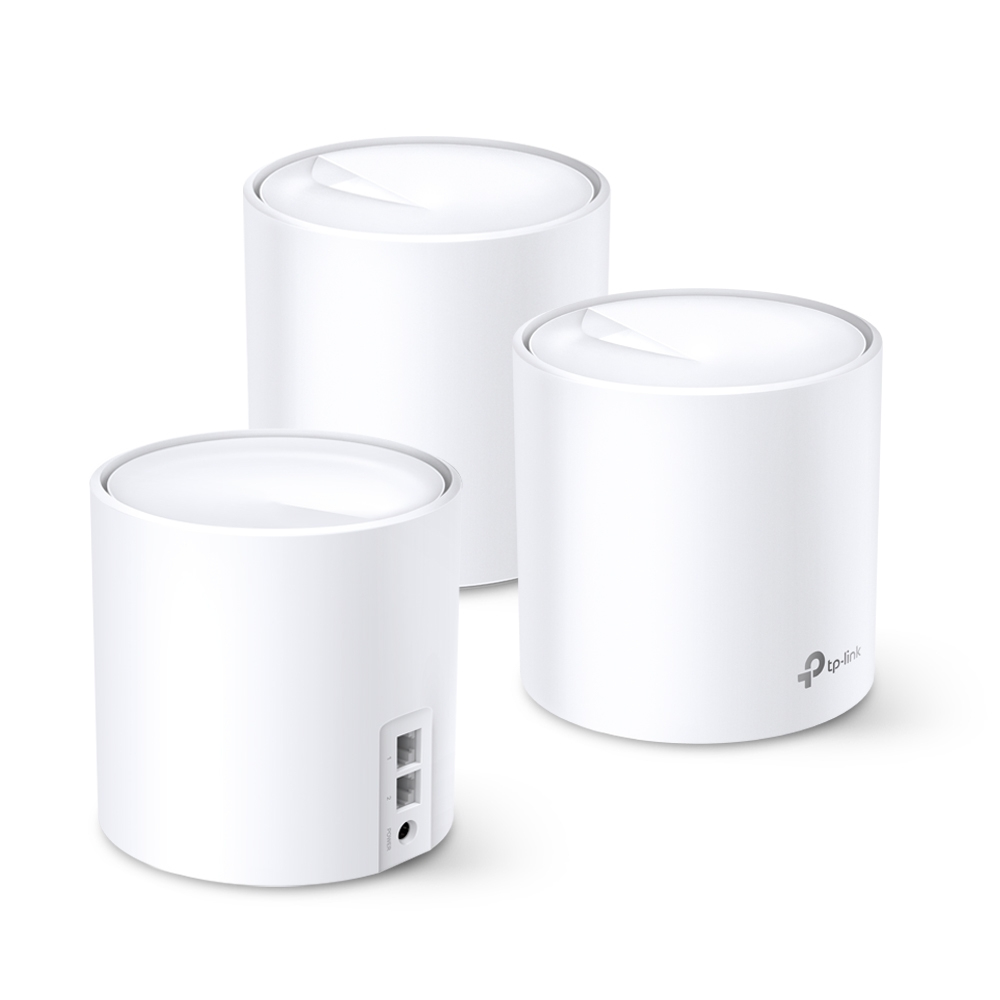

TP-Link WL-AP Access Point Deco X20 Mesh System/AX1800 (3 series) content_copy

Next Generation Mesh WiFi
Equipped with the latest Wi-Fi 6 technology, transmission speeds are rapidly increased, efficiency is improved and network congestion is minimized when using multiple devices.
With the Deco X20, weak signal areas are completely eliminated. No more annoying searches for a stable connection. For greater coverage, simply add more deco units.
The Decos work together to form a unified WiFi network. Your phone or tablet will always automatically connect to the Deco unit, which offers you the highest speed as you move around your home.

Highlights

• Fast dual-band transfer speeds up to 1202 Mbit/s (5 GHz) + 574 Mbit/s (2.4 GHz)
• Simultaneous data transfer to multiple devices thanks to OFDMA and MU-MIMO technology
• Seamless WLAN coverage with strong WLAN signals everywhere thanks to Wi-Fi 6
• Almost no latency, perfect for gaming, video chatting
• Uniform, intelligent network with a WLAN name
• Uninterrupted WLAN despite movement
• Secure WPA3 encryption standard and TP-Link HomeCare Pro for a reliable and robust WLAN connection Protection, including antivirus program and Quality of Service (QoS)
• Easy installation thanks to Deco app

Product type

• Access point
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT devices - and telecommunications technology B2C

data transmission

• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4

Basic features

• Color: White
• Height: 114 mm

Scope of delivery

• TP-Link Deco X20 (pack of 3) AX1800 Whole-Home Mesh System
• 1 RJ45 Ethernet cable
• 3 power supplies
• 1 quick start guide

Certificates
Compliance certificates	CE, RoHS
Certification	FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC
Design
Product type	Mesh system
Product colour	White
LED indicators	Power
Antenna type	Internal
Antennas quantity	4
Transmit power	FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Reset button
Features
Processor cores	4
Firewall security	SPI
Built-in processor
Quality of Service (QoS) support
DHCP client
DHCP server
Parental control
Logistics data
Harmonized System (HS) code	85176990
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Number of products included	3 pc(s)
Number of units included	3 pc(s)
AC adapter included
Ethernet cable
Packaging data
Package width	369 mm
Package depth	276.5 mm
Package height	125 mm
Package weight	2.25 kg
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Ethernet WAN
DC-in jack
Power
AC input voltage	100-240 V
AC adapter input current	0.4 A
AC input frequency	50-60 Hz
AC adapter output voltage	12 V
AC adapter output current	1 A
Sustainability
Sustainability compliance
Weight & dimensions
Width	110 mm
Depth	110 mm
Height	114 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1775 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Guest access

---
